Traction Control Switch: Service and Repair

Switch - Traction Control

Removal and Installation

1. NOTE: If the vehicle is equipped with an automatic transmission, position the shift lever in the 1 position before detaching the floor console finish panel.

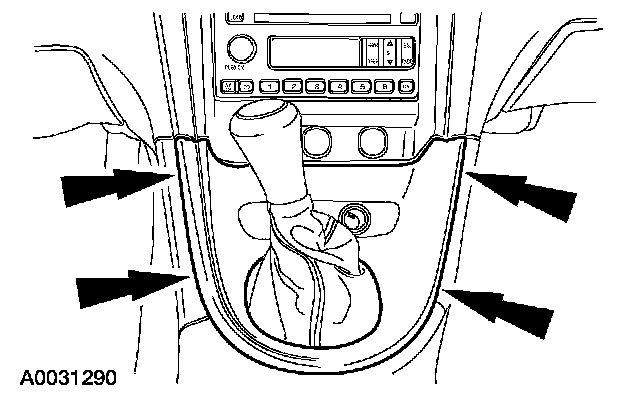

Lifting from both sides, detach the floor console finish panel.

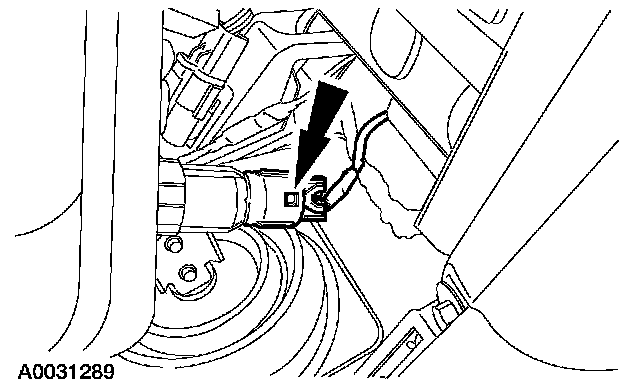

2. Disconnect the electrical connector and position the finish panel out of the way.

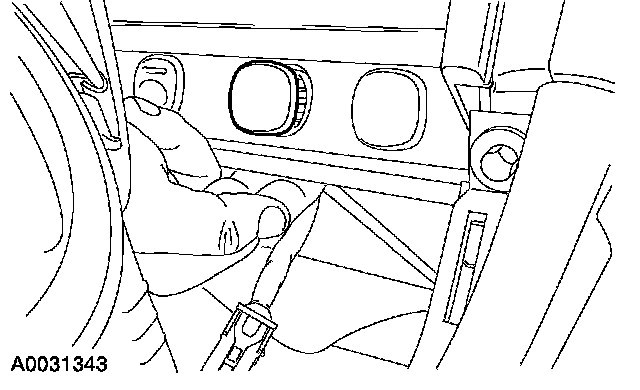

3. Reaching behind the center finish panel, push and detach the switch from the finish panel.

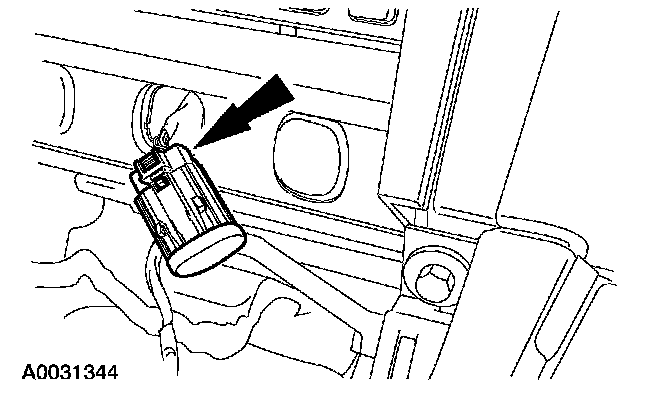

4. Disconnect the electrical connector and remove the switch.
5. To install, reverse the removal procedure.
