Initial Inspection and Diagnostic Overview

INSPECTION AND VERIFICATION

1. Verify the customer's concern by operating the climate control system to duplicate the condition.

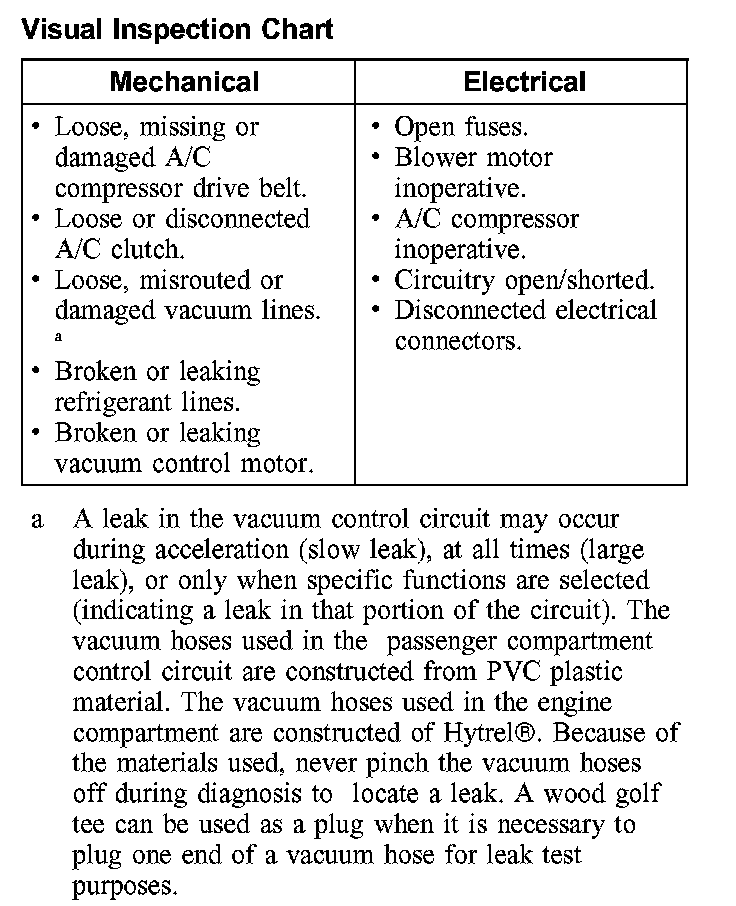

Visual Inspection Chart:

2. Inspect to determine if one of the following mechanical or electrical concerns apply.
3. If the inspection reveals obvious concerns that can be readily identified, repair as required.
4. If the concern remains after the inspection, connect the scan tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the scan tool menu. If the vehicle selection cannot be entered:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the ignition switch position.

If the scan tool still does not allow the vehicle selection to be entered, refer to the scan tool manual.

5. Carry out the DATA LINK DIAGNOSTIC TEST using the scan tool. If the scan tool responds with:
- CKT 914, CKT 915 or CKT 70 = ALL MODULE NO RESPONSE/NOT EQUIPPED, go to Communication System Diagnostics in Information Bus (Module Communications Network) to diagnose network concern.
- If the powertrain control module (PCM) is not listed for a communication concern, turn the A/C function selector switch to OFF and execute self-test diagnostics for the PCM.

6. If any PCM DTCs are retrieved, and are related to the concern, go to the Powertrain Control Module Diagnostic Trouble Code (DTC) Index to continue diagnostics. Diagnostic Trouble Code Descriptions
7. If no DTCs related to the concern are retrieved, go to the Symptom Chart to continue diagnostics. Symptom Related Diagnostic Procedures
