PINPOINT TEST G: THE
BLOWER MOTOR
DOES NOT OPERATE/DOES NOT OPERATE CORRECTLY

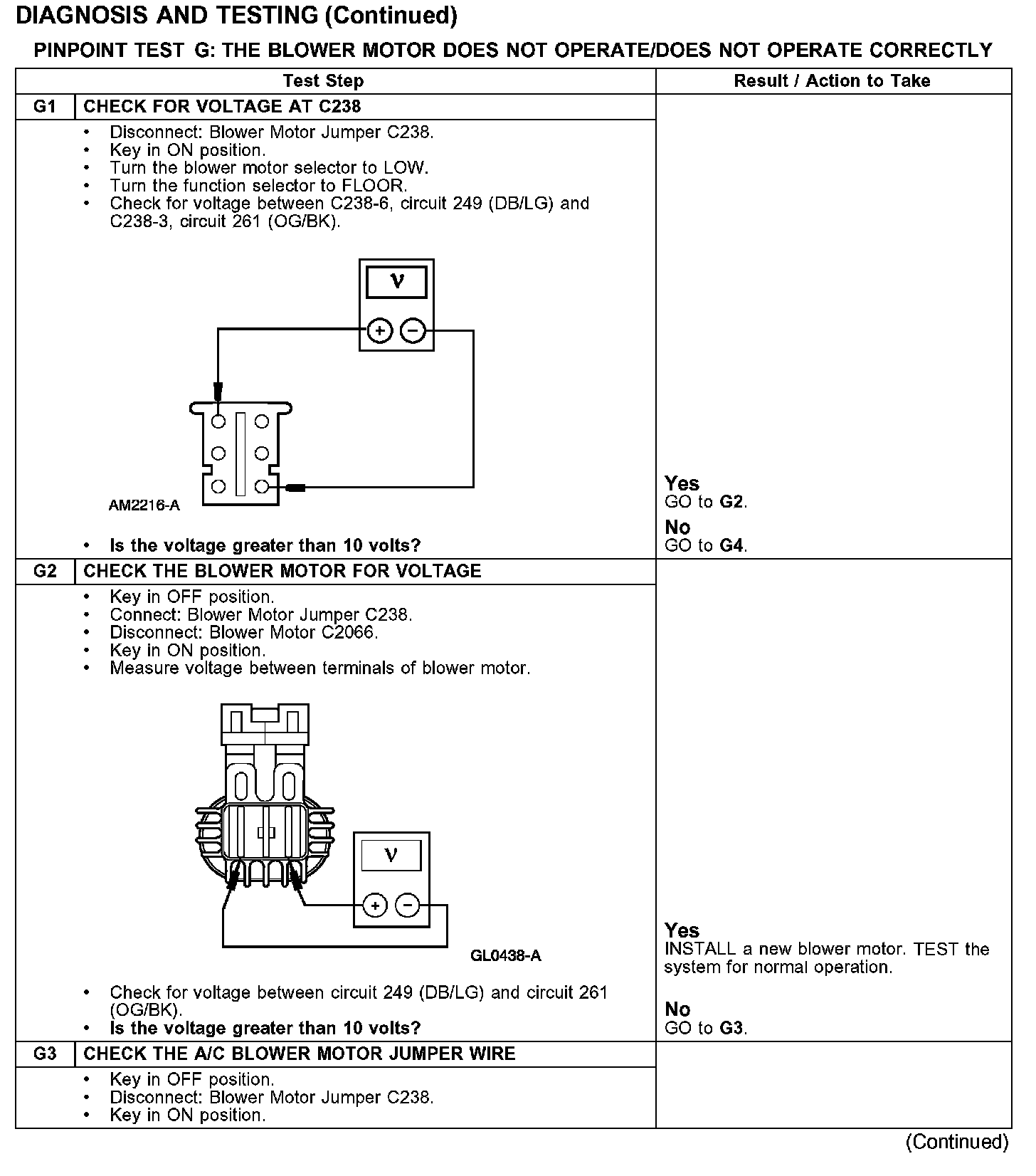

Test G1-G3:

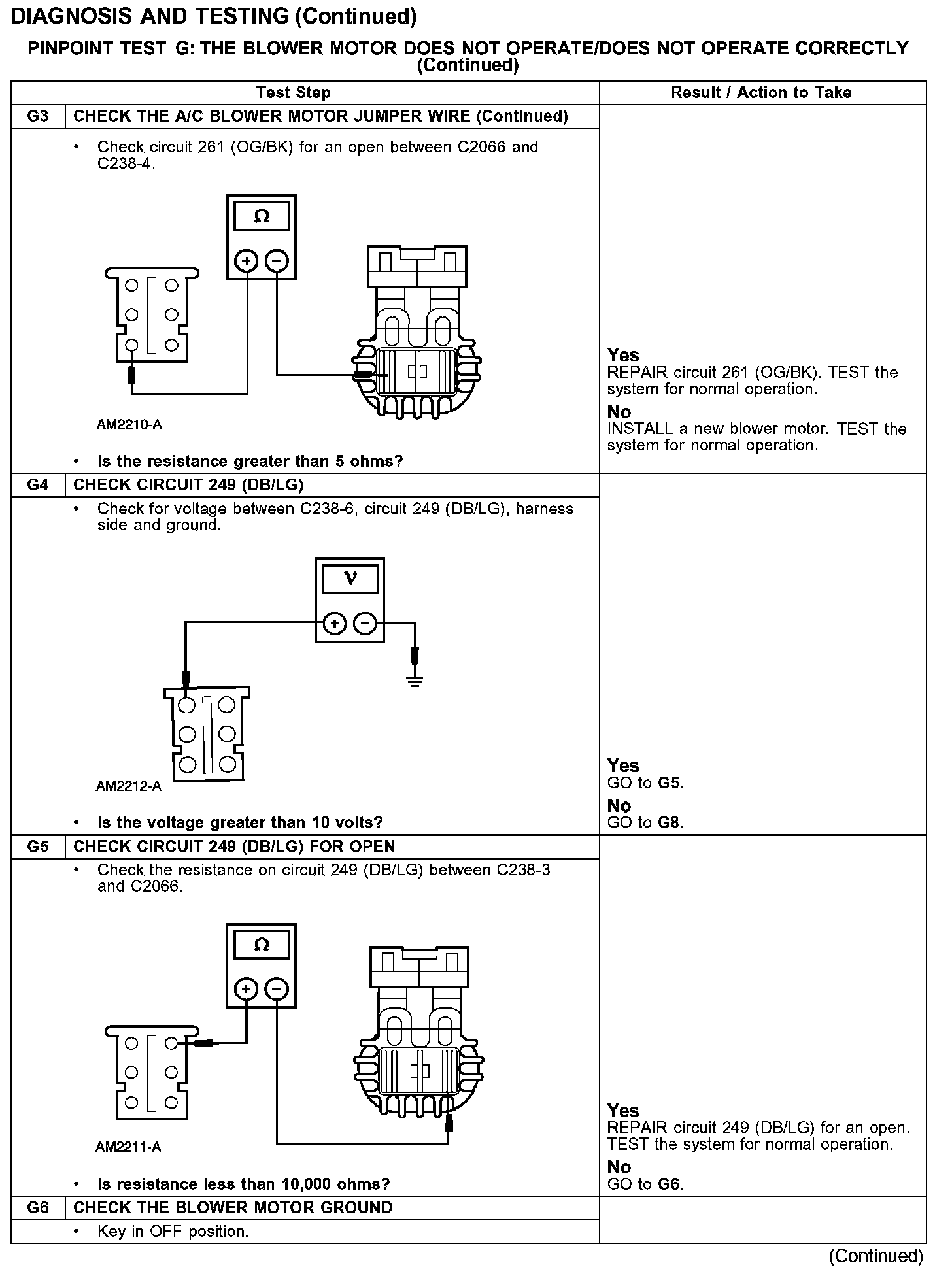

Test G3-G6:

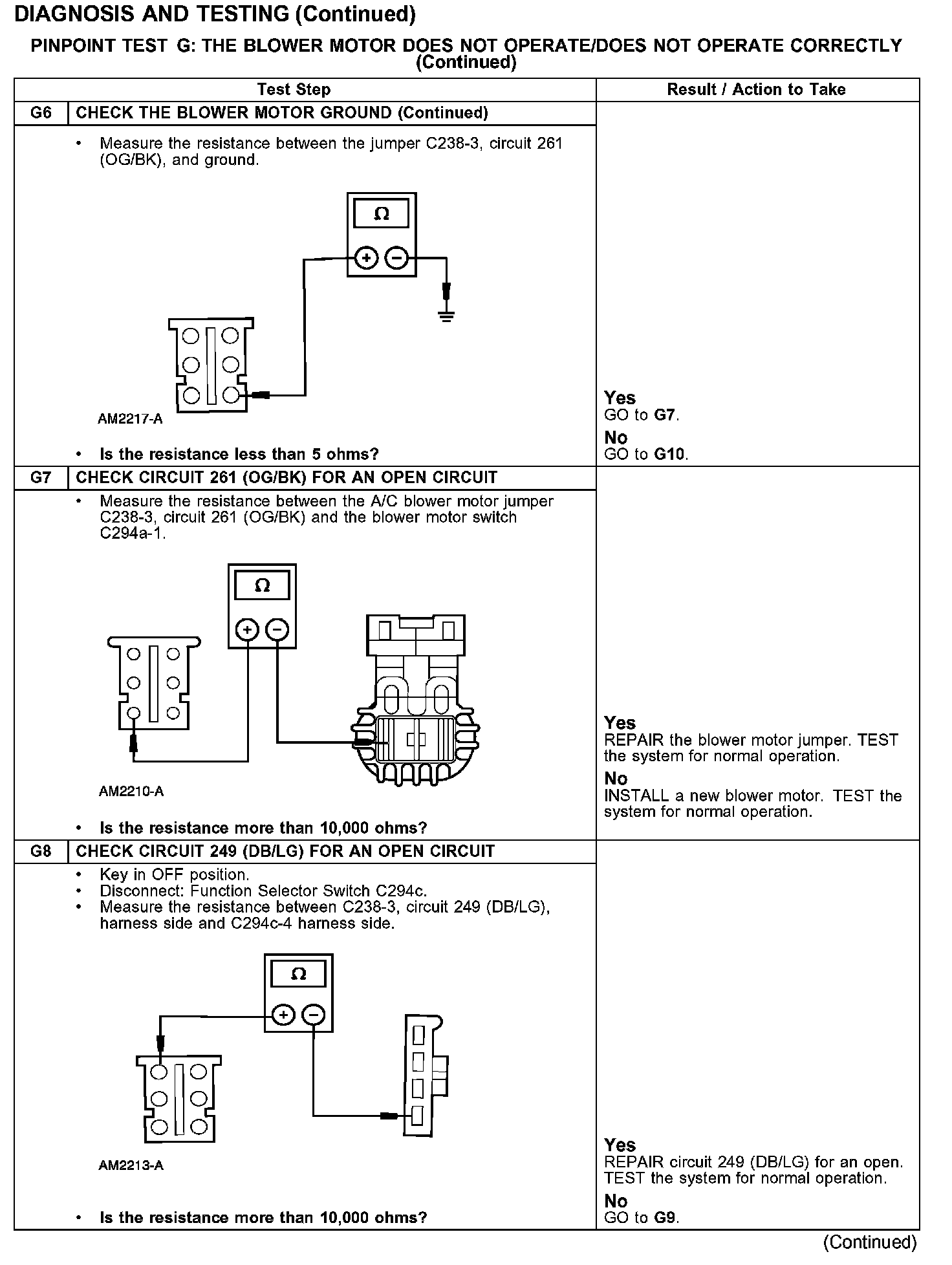

Test G6-G8:
Test G9-G10:
