Compression Check

AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.

Compression Test-Test Results

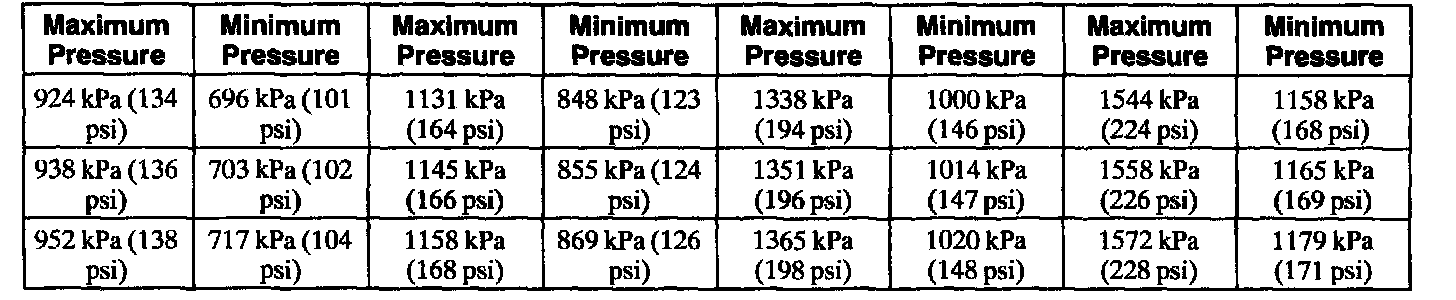

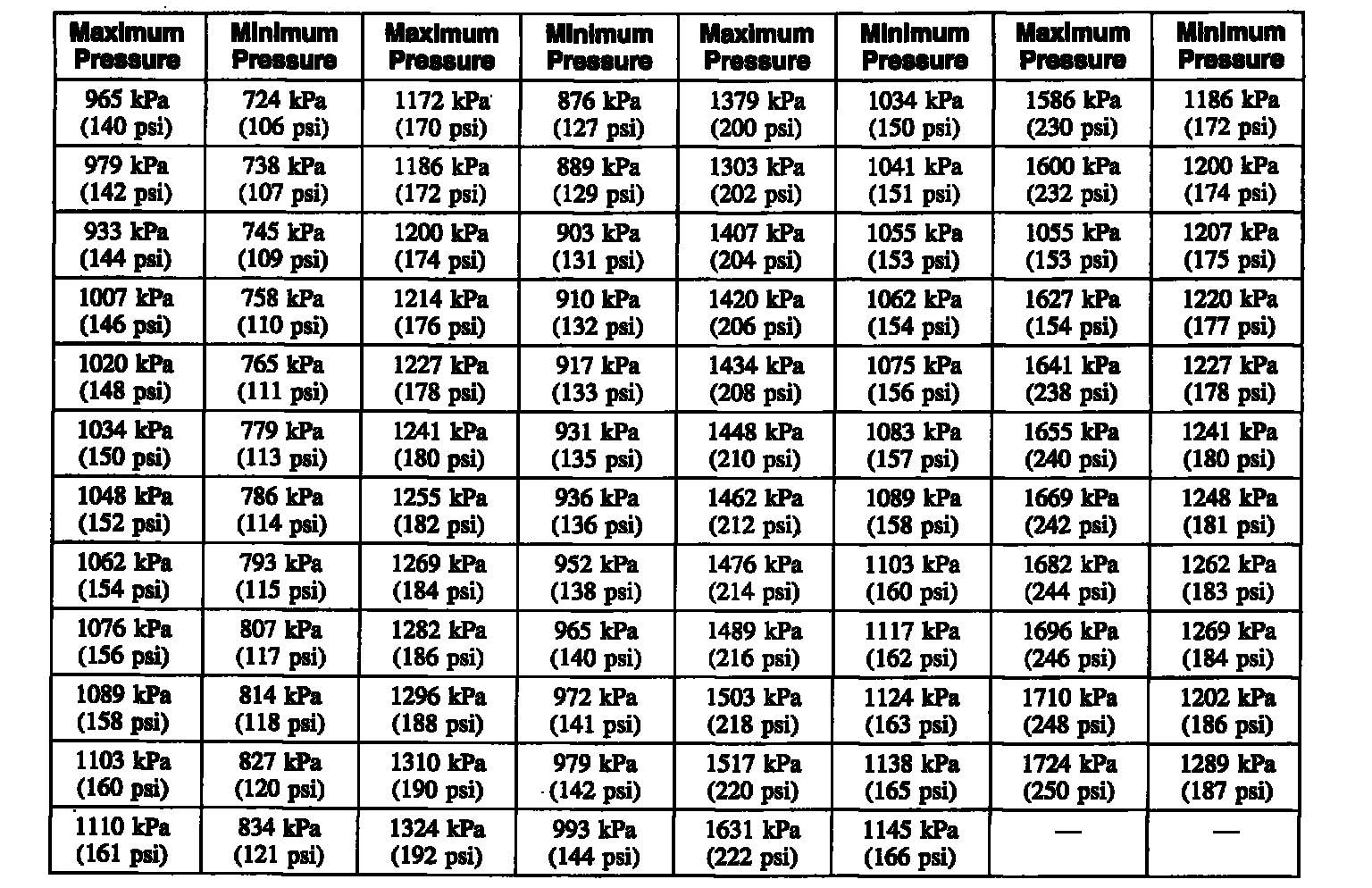

The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75 percent of the highest reading. Refer to the Compression Pressure Limit Chart.
