Seal

Seal

Special Tools And Equipment:

Special Tool(s)

Removal

1. With the vehicle in NEUTRAL, raise and support the vehicle.

2. CAUTION: Index-mark the driveshaft flange and pinion flange, and the driveshaft slip yoke and transmission output shaft.

Remove the driveshaft.





3. Using the special tools, remove the extension housing fluid seal.

Installation

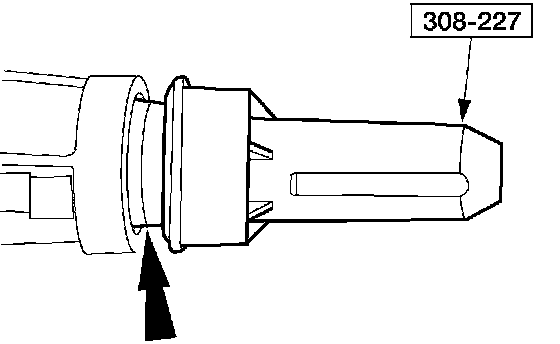

1. Using the special tool, install the extension housing fluid seal.

2. CAUTION: Align the index marks.

Install the driveshaft.
3. Check the transmission fluid level, add fluid if necessary.
4. Lower the vehicle.
