Vehicle Lifting: Description and Operation

JACKING

WARNING:
- Do not run the engine when jacking the vehicle. The wheels contacting the ground could cause the vehicle to move.
- Make sure the jack and jack stands are properly located to prevent the vehicle from falling.
- Wheel chocks should be used to prevent the vehicle from rolling and falling off the jack.

Jacking Points - Front

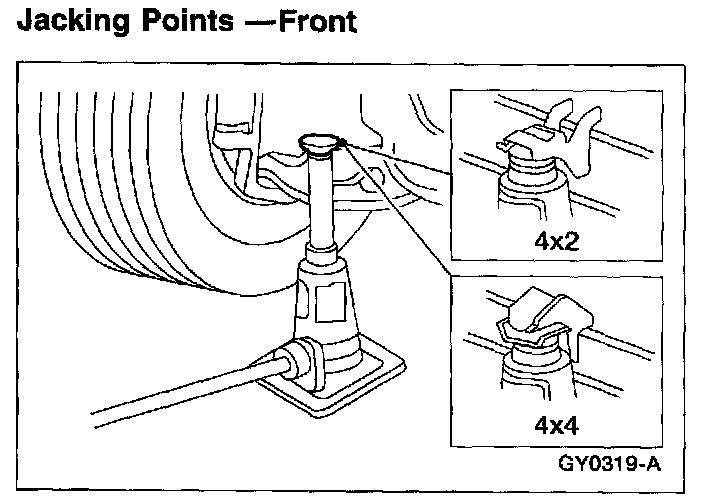

Jacking Points - Front:

The jacking point is a tab that extends from the front suspension lower control arm.

Jacking Points - Rear

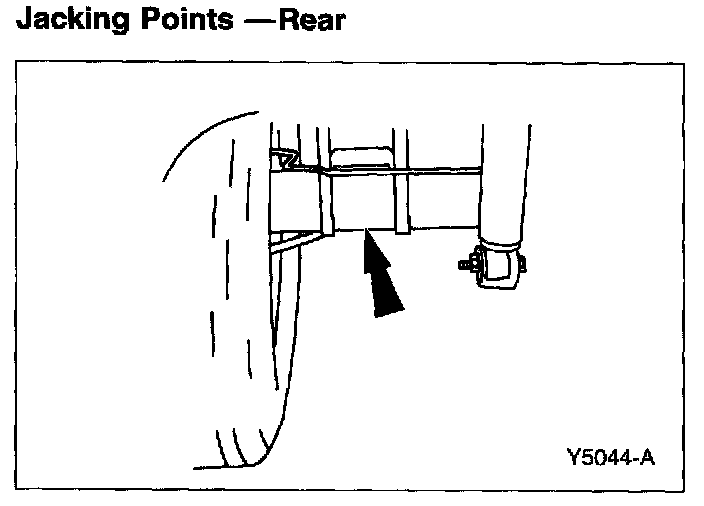

Jacking Points - Rear:

The rear jacking points are located on the rear axle.

LIFTING

CAUTION:
- Damage to suspension, exhaust and steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.
- Never use a halfshaft or the differential housing as a lifting point.

Lifting Points - 4x2

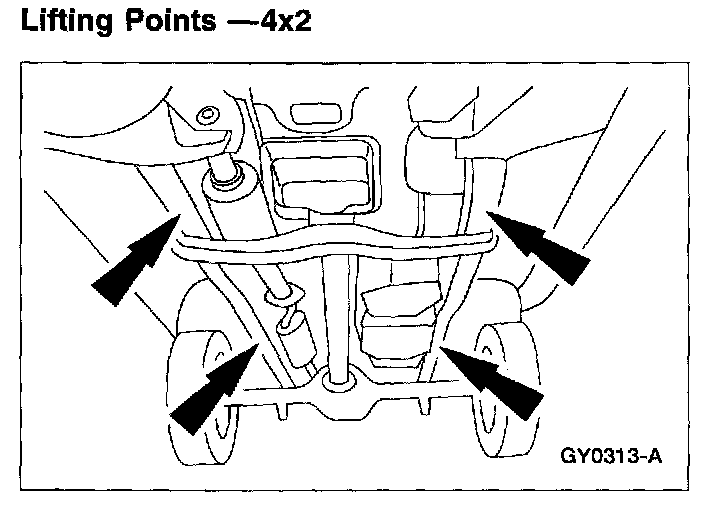

Lifting Points - 4x2:

Locate the front hoist adapters and rear hoist adapters on the frame of the vehicle as indicated.

Lifting Points - 4x4

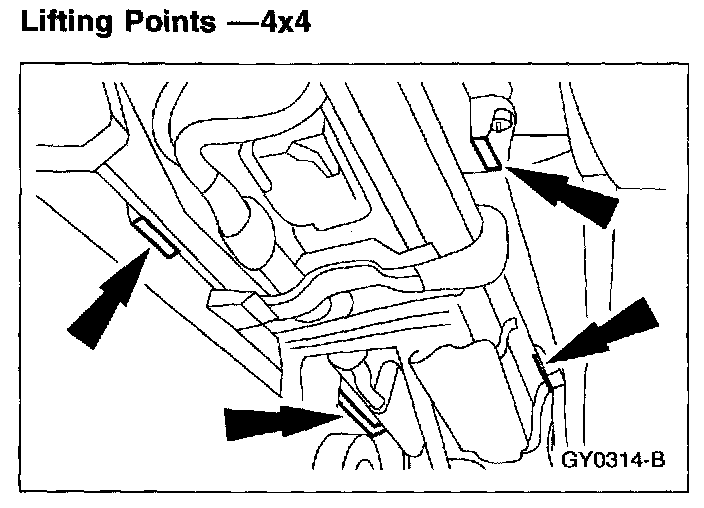

Lifting Points - 4x4:

Locate the front hoist adapters on the frame bracket and the rear hoist adapters on the vehicle frame as indicated.
