Windshield Defroster and Side Window Demister Nozzle

NOZZLE - WINDSHIELD DEFROSTER AND SIDE WINDOW DEMISTER

REMOVAL
1. Remove the instrument panel. Refer to: Body and Frame, interior Trim, Dashboard/Instrument panel, Service and Repair, Service and Repair







2. Remove the two screws and remove the LH demister nozzle and duct.







3. Remove the two screws and remove the RH demister nozzle and duct.

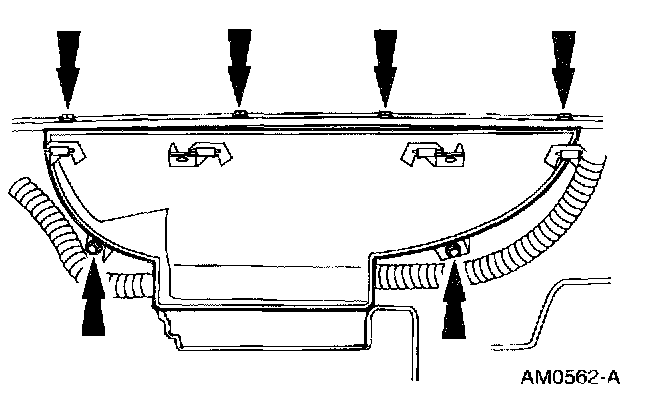

4. Remove the screws and remove the windshield defroster hose nozzle.

INSTALLATION

















1. To install, reverse the removal procedure.
