Test F

PINPOINT TEST F: THE BLOWER MOTOR IS INOPERATIVE

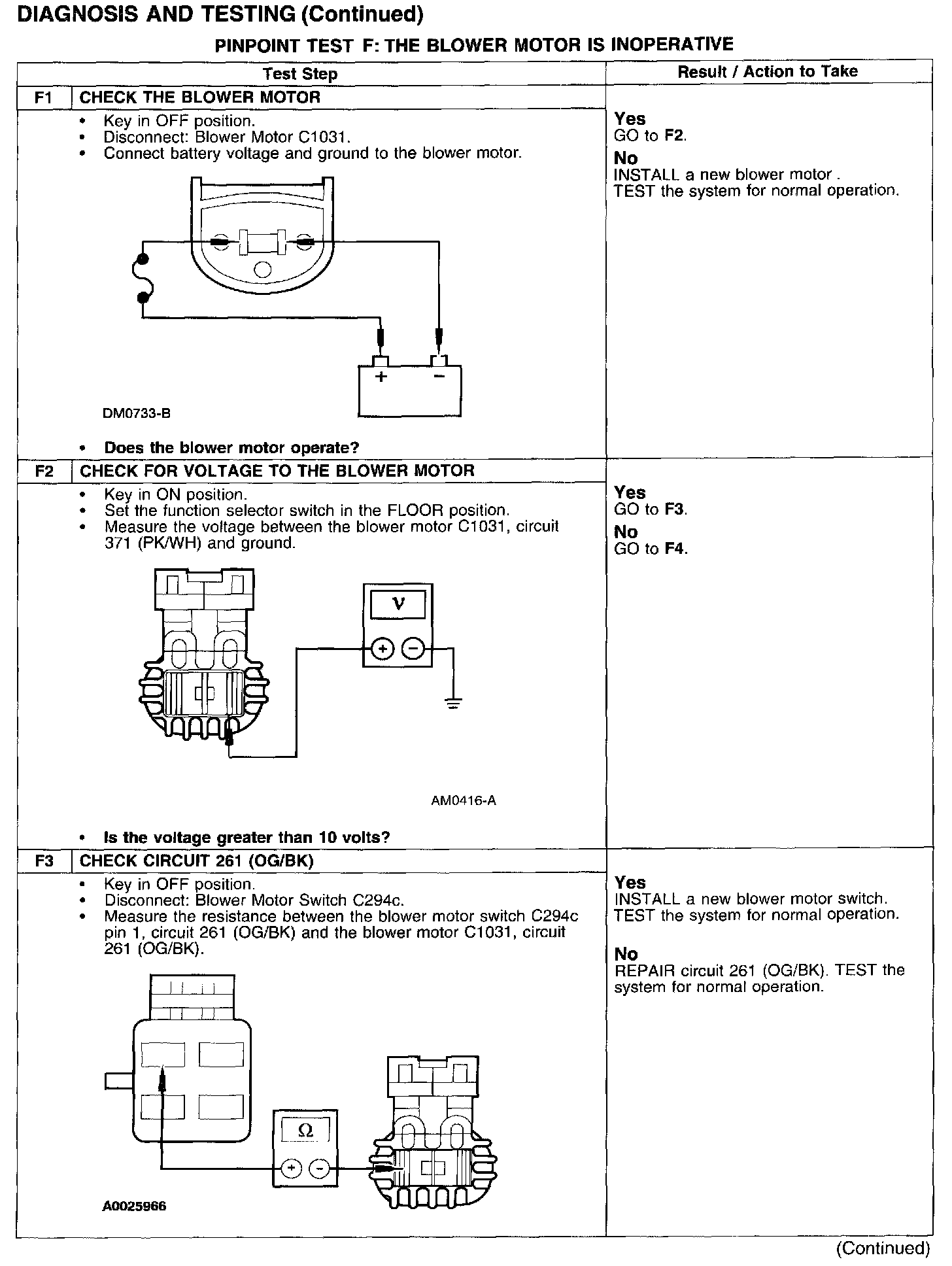

Test F1-F3:






Test F3-F5:






Test F6-F8:






Test F8-F9:
