Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2004
>>
Ranger 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test P
Test P
PINPOINT TEST P: THE
BRAKE WARNING INDICATOR
IS NEVER ON/ALWAYS ON
Test P1-P2:
Test P3-P5:
Test P6-P8:

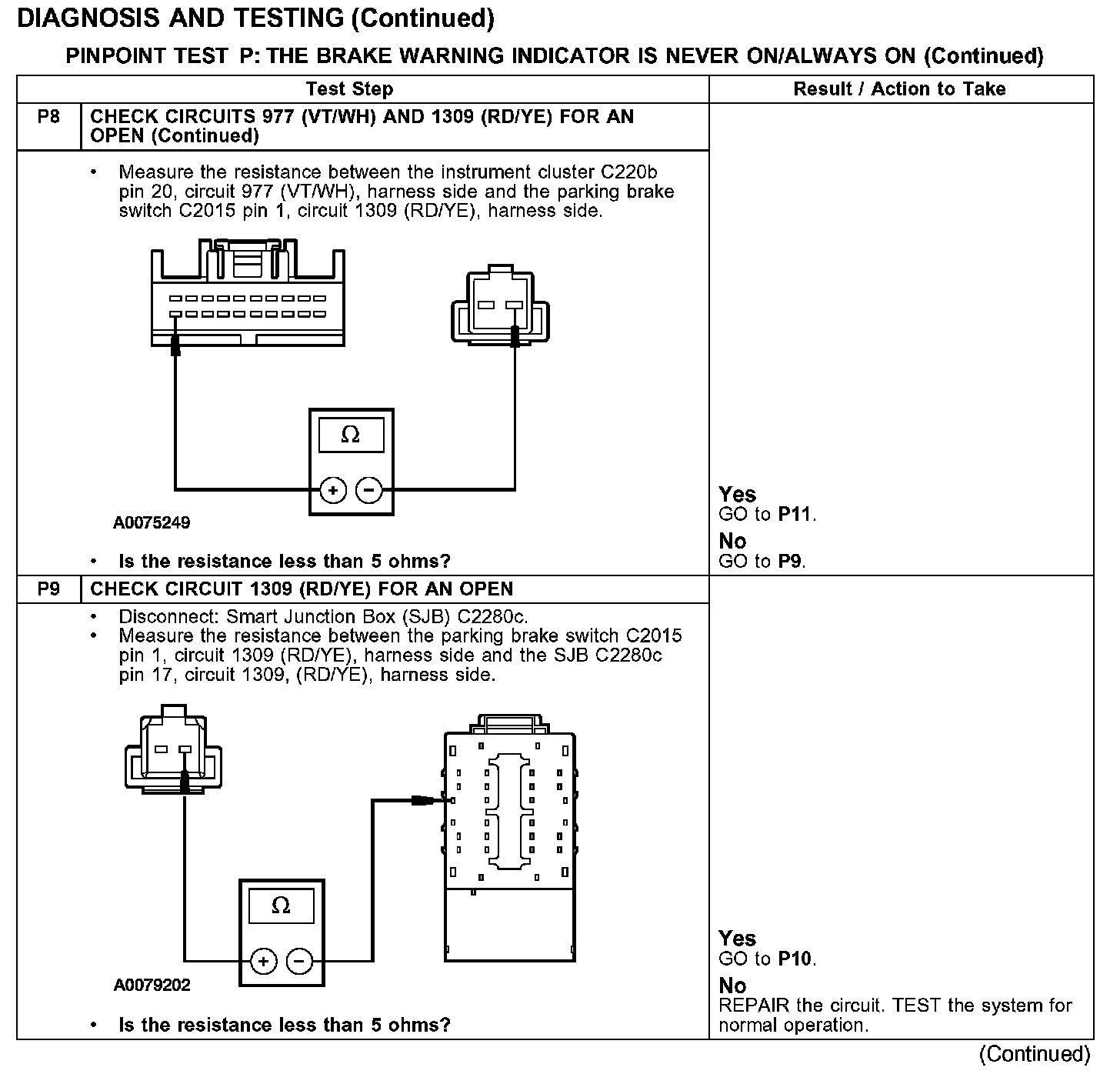

Test P8-P9:
Test P10-P13:
