Ignition Switch: Service and Repair

Ignition Switch

Removal and Installation
1. Disconnect the battery.





2. Remove the hood latch release handle.
^ Remove the bolts and position the hood latch release handle aside.





3. Remove the lower instrument panel steering column cover.
^ Remove the screws.

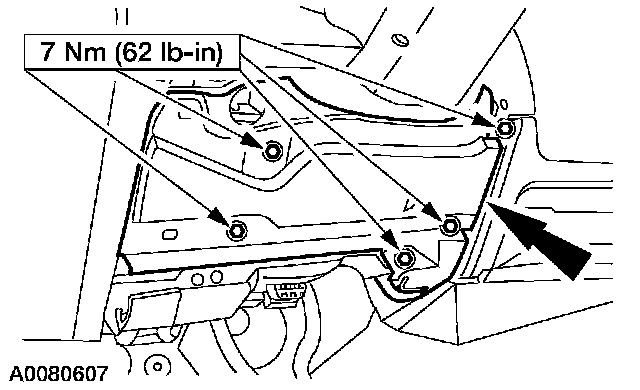

4. Remove the instrument panel steering column opening cover reinforcement.
^ Remove the bolts.





5. Disconnect the electrical connector.
^ Remove the bolt.





6. Remove the ignition switch.
^ Remove the screws.
7. To install, reverse the removal procedure.
