Transmission Connector Layouts

Part 1 Of 2:




Part 2 Of 2:





Transmission Vehicle Harness Connector

Part 1 Of 2:




Part 2 Of 2:

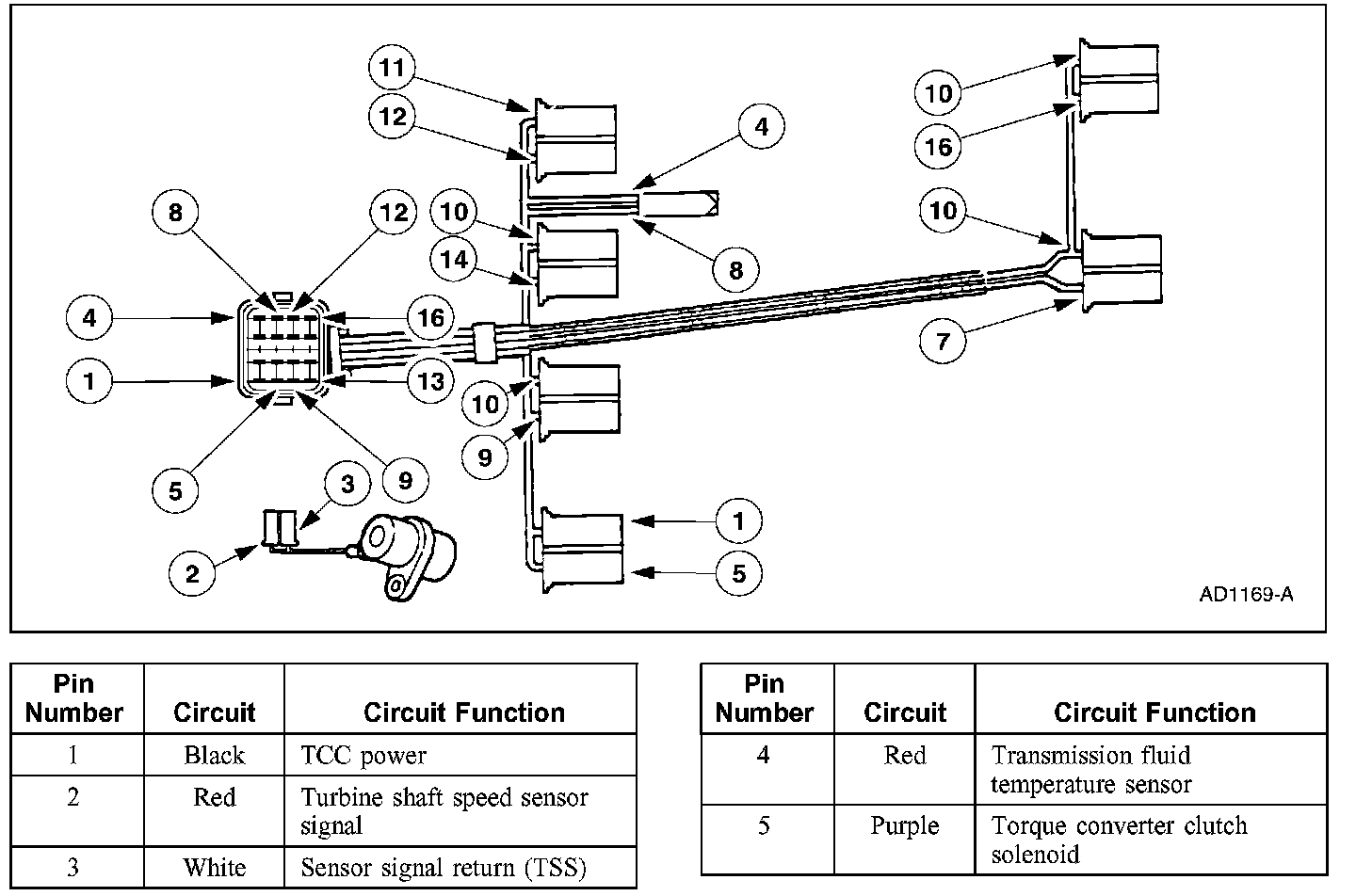

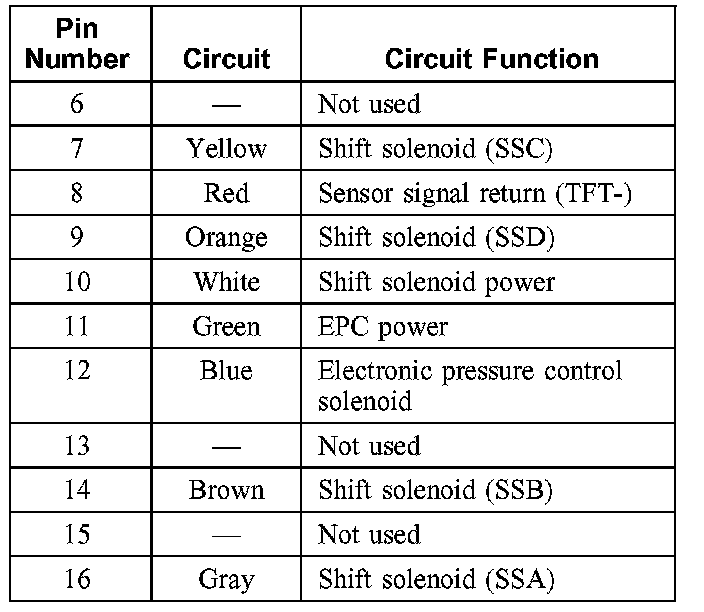

Transmission Internal Harness Connector





Digital Transmission Range (TR) Sensor Connector

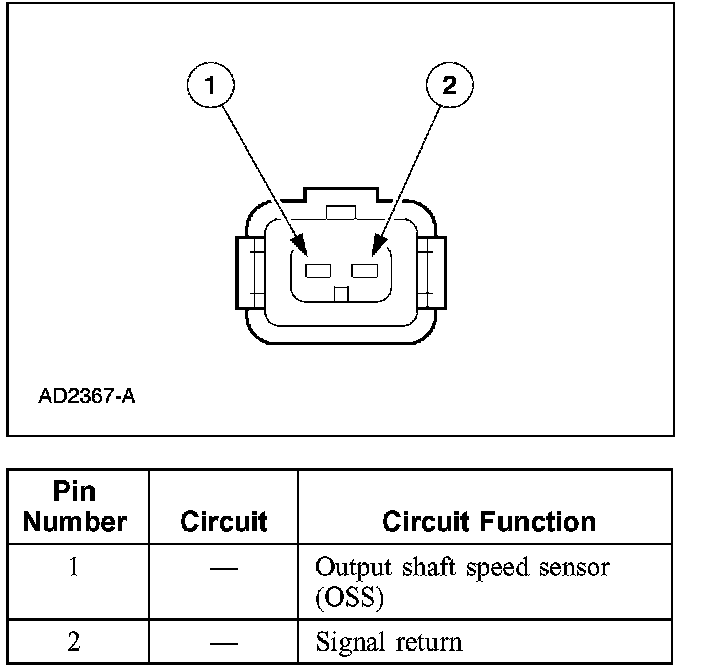

Output Shaft Speed (OSS) Sensor Connector





Intermediate Shaft Speed (ISS) Sensor Connector
