Starter Motor: Service and Repair

STARTER MOTOR

Removal
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

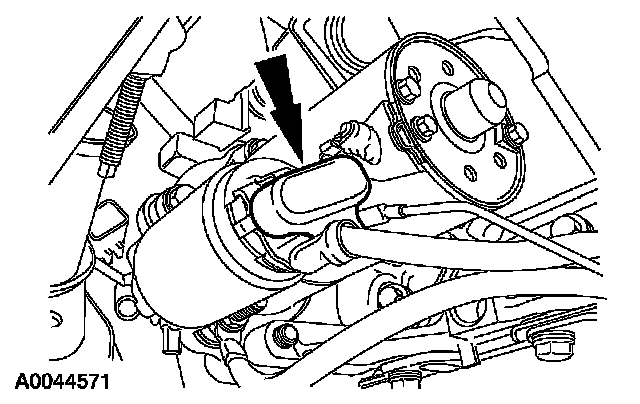

3. Remove the starter motor solenoid terminal cover.

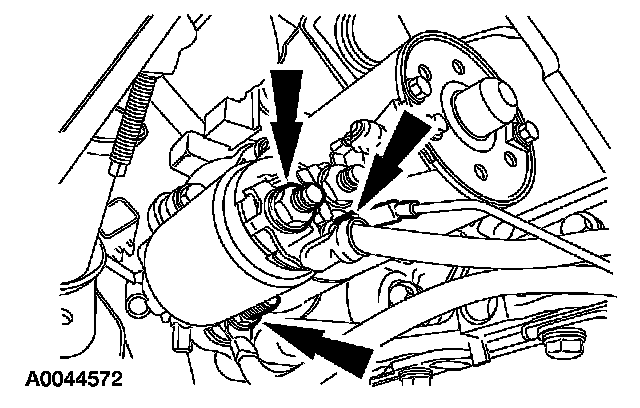

4. Disconnect the starter motor electrical connections.

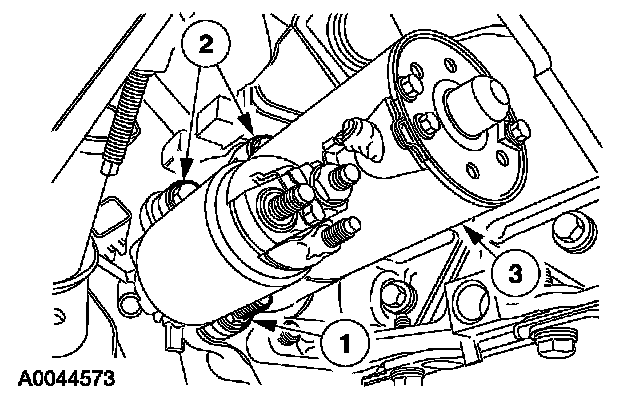

5. Remove the starter.
1. Remove the stud bolt.
2. Remove the two bolts.
3. Remove the starter.

Installation

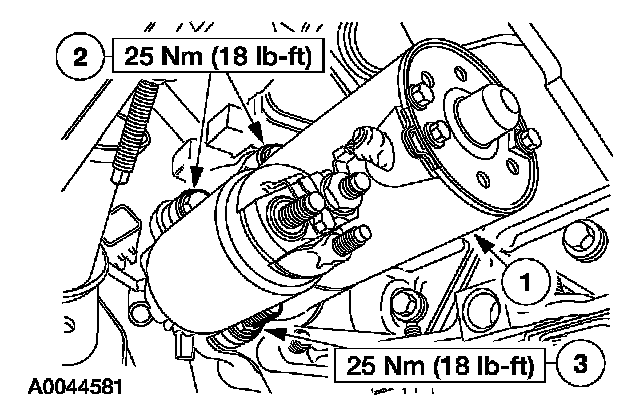

1. Install the starter.
1. Position the starter.
2. Loosely install the two bolts.
3. Loosely install the stud bolt.
- Tighten the top bolt first, then the other fasteners.

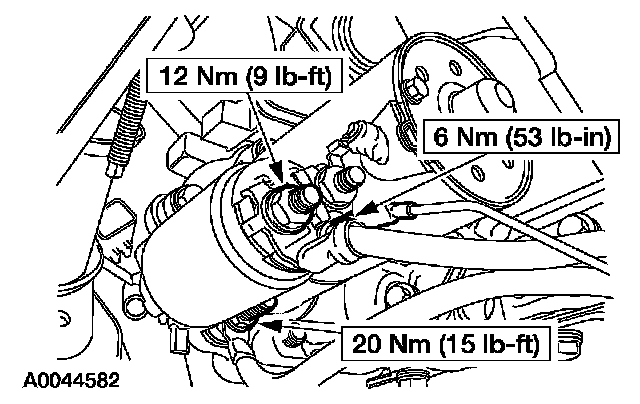

2. Connect the starter motor electrical connections.







3. Install the starter motor solenoid terminal cover.
4. Connect the battery ground cable.
