Home >> Ford >> 2005 >> E 250 V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Romeo Engine-Front End

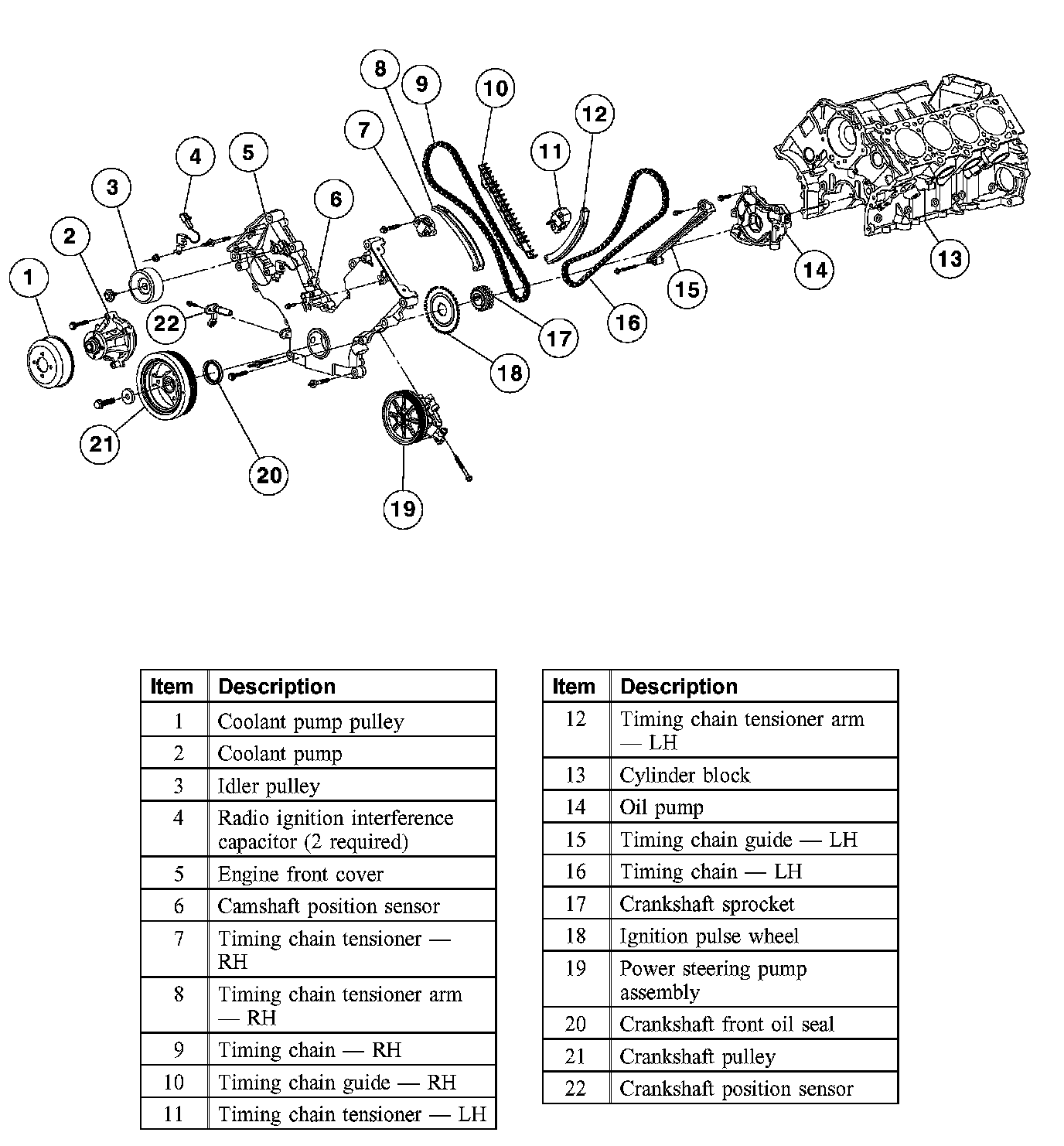

Romeo Engine-Front End
