Seat - Front, Manual Bucket
SEAT - FRONT, MANUAL BUCKETDisassembly
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- The belt and buckle assembly pretensioner is a pyrotechnic device. Never probe the connectors on the belt and buckle assembly pretensioner. Doing so can result in belt and buckle assembly pretensioner or air bag deployment and can result in personal injury.
- To reduce the risk of personal injury, do not use memory saver devices.
NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All seats
1. Depower the SRS. Service and Repair
2. Remove the affected seat.
3. Remove the armrest.
1 Pull back the armrest cover hook-and-loop strip to expose the bolt.
2 Remove the bolt and crown washer.
3 Remove the armrest.
Seats with lumbar
4. NOTE: Passenger seat shown, driver seat similar.
Pull and remove the lumbar adjustment knob.
All seats
5. Remove the outboard side shield screw and the seat back recliner lever screw and cover.
6. Remove the screw underneath the seat.
7. Disengage the outboard side shield from the seat track.
8. Remove the outboard side shield.
Seats with inboard side shield
9. Remove the inboard side shield screws from underneath the seat.
10. Rotate the inboard side shield upward to disengage the front and center upper hooks.
- Pull the inboard side shield away to clear the safety belt buckle pretensioner assembly.
11. Remove the inboard side shield.

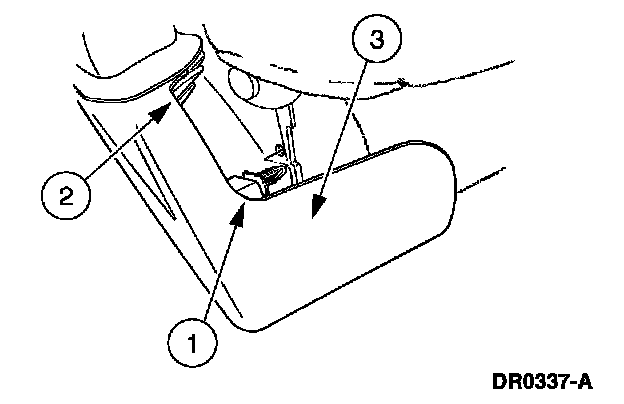

1 Rotate the inboard side shield upward to release the rear pin-type retainer.
- Install a new pin-type retainer if damaged during removal.
2 Hold the inboard side shield in one hand and release the retaining clips holding the safety belt buckle pretensioner boot to the inboard side shield.
3 Remove the inboard side shield.
Seats without inboard side shield
12. Release the hook-and-loop strip on the inboard cushion flap.

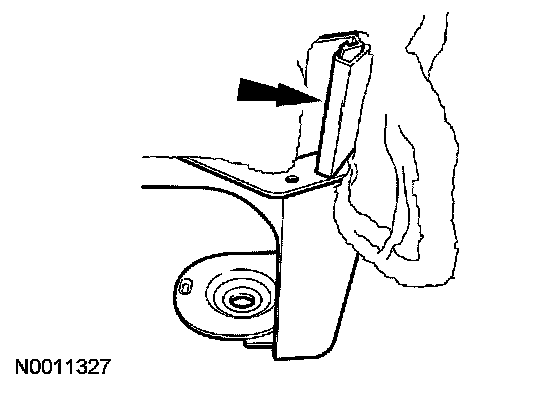

13. Release the J-clip.

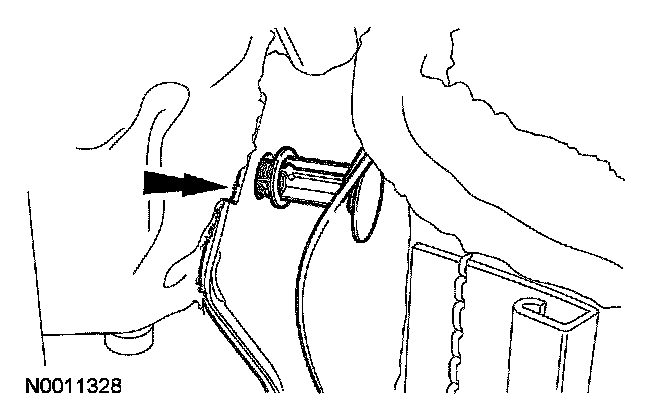

14. Release the push pin and position aside the inboard seat cushion flap.
Seats with manual lumbar
15. NOTE: Make sure the lumbar assembly is in the fully relaxed position.

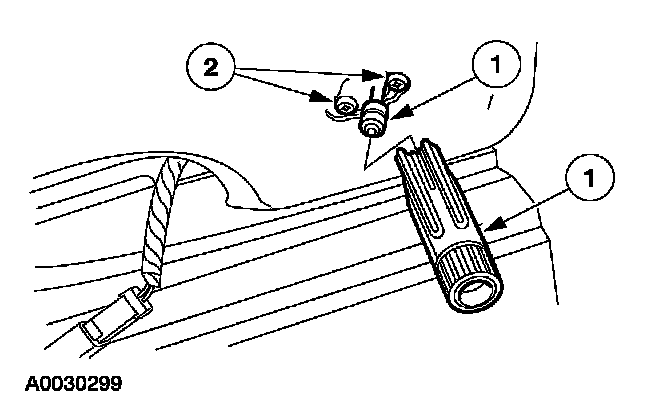

Remove the lumbar control adjuster.
1 Remove the 2 screws.
2 Disconnect the adjuster cable and remove the lumbar adjuster.
All seats

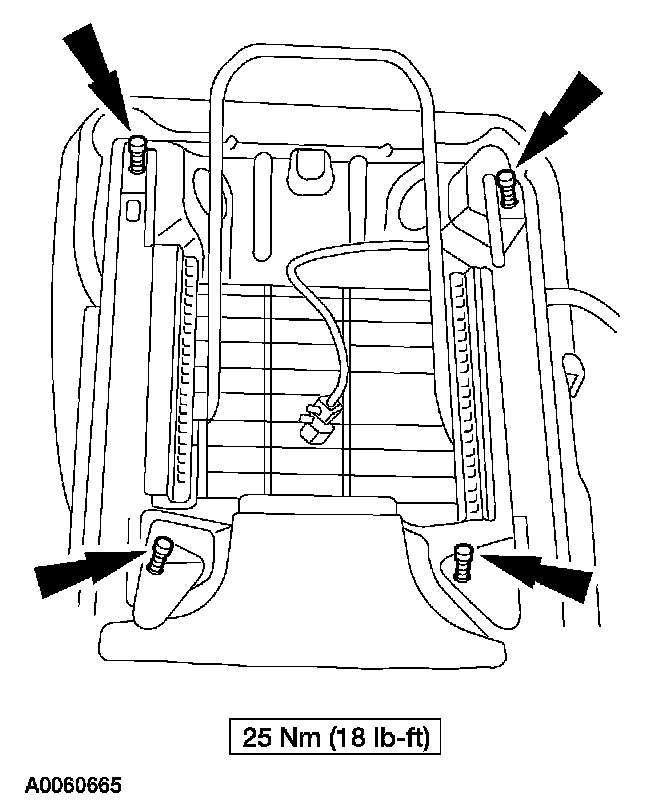

16. Remove the front seat back bolt.

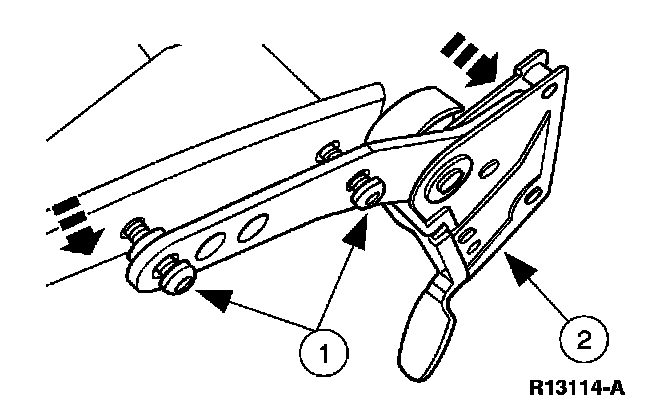

17. Remove the 2 bolts from the front seat back recliner, route the adjuster cable through the bottom of the seat and remove the front seat back cushion.
18. CAUTION: Use care when separating the seat cushion trim cover from the hook-and-loop strip or the hook-and-loop strip can be torn away from the seat cushion foam.
Remove the front seat back cover.
1 Unfasten the J-clip at the bottom of the front seat back.
2 Invert the cushion trim cover and release the hook-and-loop strips (not shown), and remove the seat cushion trim cover from the foam pad.
19. Remove the front seat back foam pad from the front seat back frame.
Seats with lumbar

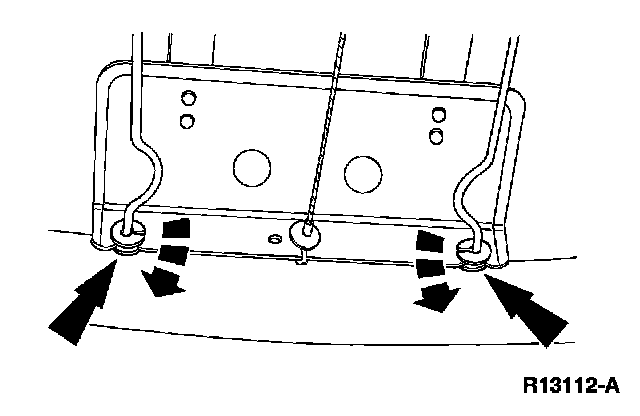

20. Cut the wire ties fastening the lumber cable to the front seat frame.
21. NOTE: Removal of the lumbar assembly is easier when the seat back pad is fully relaxed.
Rotate the plastic washers 60 degrees until the slit is facing the edge of the front seat lumbar adjuster grid.
- Rotate both the top and bottom washers.
22. Remove the lumbar adjuster grid from the front seat back frame.
All seats
23. Remove the front seat back latch from the front seat back frame.
1 Remove the 2 bolts from the front seat back latch.
2 Remove the front seat back latch.
24. NOTE: Note the connector location when removing the connector from the seat support.
If equipped, gently pull the seat belt buckle switch connector from the seat support.
25. Remove the 4 nuts retaining the seat riser to the seat track.
26. Remove the seat riser from the seat tracks.
27. Remove the safety belt buckle pretensioner bolt and separate the safety belt buckle pretensioner from the seat track.
28. NOTE: Place the seat track to the mid-position to remove the seat track bolts.

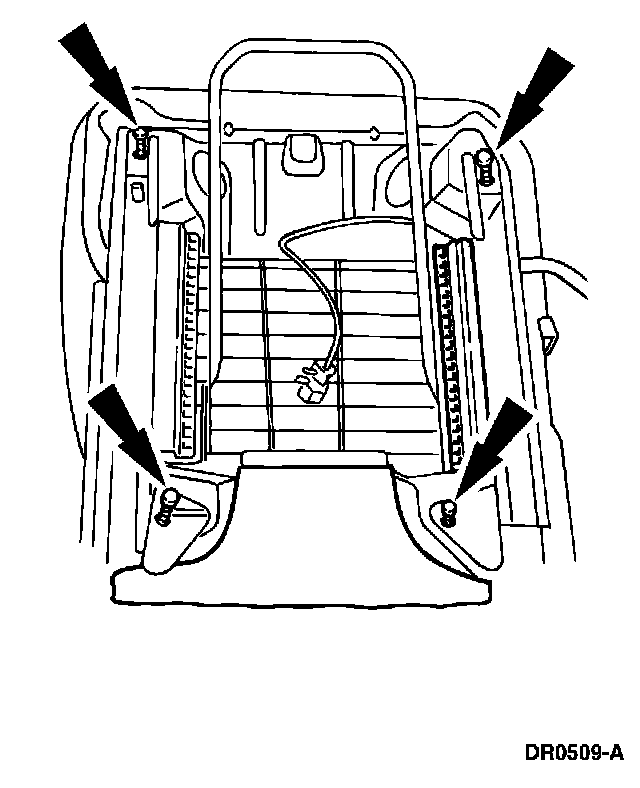

Remove the 4 bolts retaining the seat tracks to the seat cushion.
29. Remove the seat tracks from the seat cushion.
30. NOTE:
- Examine the plastic fasteners on the safety belt wiring assembly and install new fasteners if worn.
- Note the locations of the plastic fasteners when removing the wiring assembly.
Detach the safety belt wiring harness from the seat cushion pan and remove the safety belt buckle pretensioner assembly.
31. CAUTION: Use care when separating the seat cushion trim cover from the hook-and-loop strip or the hook-and-loop strip can be torn away from the seat cushion foam.
Remove the front seat cushion trim cover.
1 Unfasten the J-clips on all 4 sides of the front seat cushion trim cover.
2 Remove the seat cushion from the front seat cushion frame.
3 Remove the front seat cushion cover from the foam pad, disengaging the hook-and-loop strips (not shown).
Assembly
All seats
1. Install the front seat cushion cover.
1 Install the front seat cushion cover to the foam pad, engaging the hook-and-loop strips (not shown).
2 Install the seat cushion to the front seat cushion frame.
3 Fasten the J-clips on all 4 sides of the front seat cushion cover.
2. NOTE: Examine the plastic fasteners on the safety belt wiring assembly and install new fasteners if worn.
Position the safety belt pretensioner assembly and attach the wiring harness to the pan.
3. Install the seat tracks to the seat cushion.
4. NOTE: Place the seat track to the mid-position to install the seat track bolts.
Install the 4 bolts retaining the seat tracks to the seat cushion.
5. Install the safety belt buckle pretensioner bolt.
- Tighten to 40 Nm (30 lb-ft).
6. Install the seat riser to the seat tracks.
7. Install the 4 nuts retaining the seat riser to the seat track.
8. NOTE: Examine the plastic fasteners on the safety belt connector and install new fasteners if worn.
If equipped, attach the safety belt connector to the seat riser.
9. Install the front seat back latch to the front seat back frame.
Seats with lumbar
10. NOTE: Installation of the lumbar assembly is easier when the adjuster is fully relaxed.
Install the lumbar assembly.
11. Rotate the plastic washers 60 degrees so that the slit is facing away from the edge of the lumbar grid. Rotate both the top and bottom washers.
12. Install wire ties fastening the lumbar adjuster cable to the front seat back frame.
All seats
13. Install the seat back foam pad to the frame.
14. Install the front seat back cover.
1 Pull the front seat back cover over the seat back, engaging the 2 hook-and-loop strips (not shown), and install the front seat back cover.
2 Fasten the J-clip at the bottom of the front seat back.
15. Route the adjuster cable through the bottom of the seat and install the front seat back to the seat cushion and install the 2 bolts.
16. Align the front seat back to the seat cushion and install the bolt.
Seats with lumbar
17. NOTE: Make sure the lumbar assembly is in the fully relaxed position.
Install the lumbar controller.
1 Install the lumbar adjuster and connect the lumbar cable.
2 Install the 2 screws.
Seats with inboard side shield
18. Install the inboard side shield to the seat.
1 Install the inboard side shield.
2 Hold the inboard side shield in one hand and secure it with the retaining clip to hold the safety belt buckle pretensioner boot (if equipped) to the inboard side shield.
3 Rotate the inboard side shield cover downward to secure the rear pin-type retainer.
19. Rotate the inboard side shield downward to engage the front and upper hooks.
20. Install the 2 inboard side shield screws.
Seats without inboard side shield
21. Position the inboard seat cushion flap and install the push pin.
22. Connect the inboard seat cushion flap J-clip.
23. Attach the inboard seat cushion flap hook-and-loop strip.
All seats
24. Install the outboard side shield to the seat.
25. Engage the outboard side shield clip to the seat track.
26. Install the outboard side shield screw underneath the seat.
27. Install the outboard side shield screw and the seat back recliner lever cover and screw.
Seats with lumbar
28. Install the lumbar adjustment knob.
All seats
29. NOTE: If the same armrest is being installed, the armrest plate and bolt can be reused, but install a new crown washer when installing the armrest.
Install the armrest, new crown washer and bolt. Position the armrest cover.
30. Install the seat.
31. Repower the SRS. Service and Repair
32. Check the active restraint system for correct operation.
