Torqshift




TorqShift Transmission

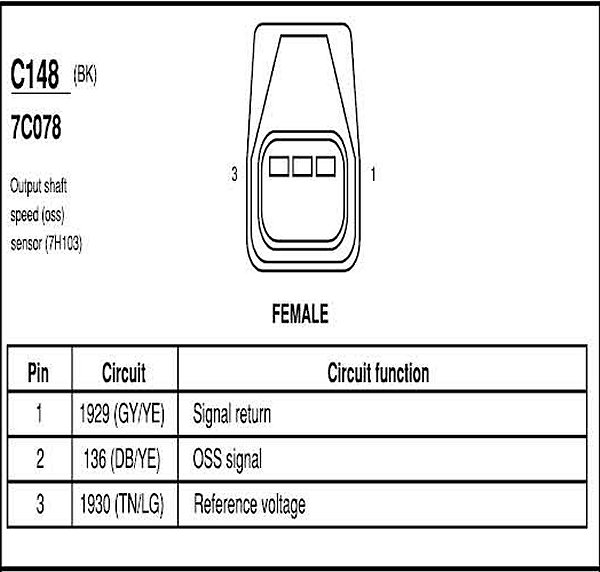

C148-Output Shaft Speed (OSS) Sensor:






C152-Speed Sensor Assembly:
