Test C: DTC B1870 - Lamp Air Bag Warning Indicator Circuit Short to Battery

PINPOINT TEST C: DTC B1870 - LAMP AIR BAG WARNING INDICATOR CIRCUIT SHORT TO BATTERY

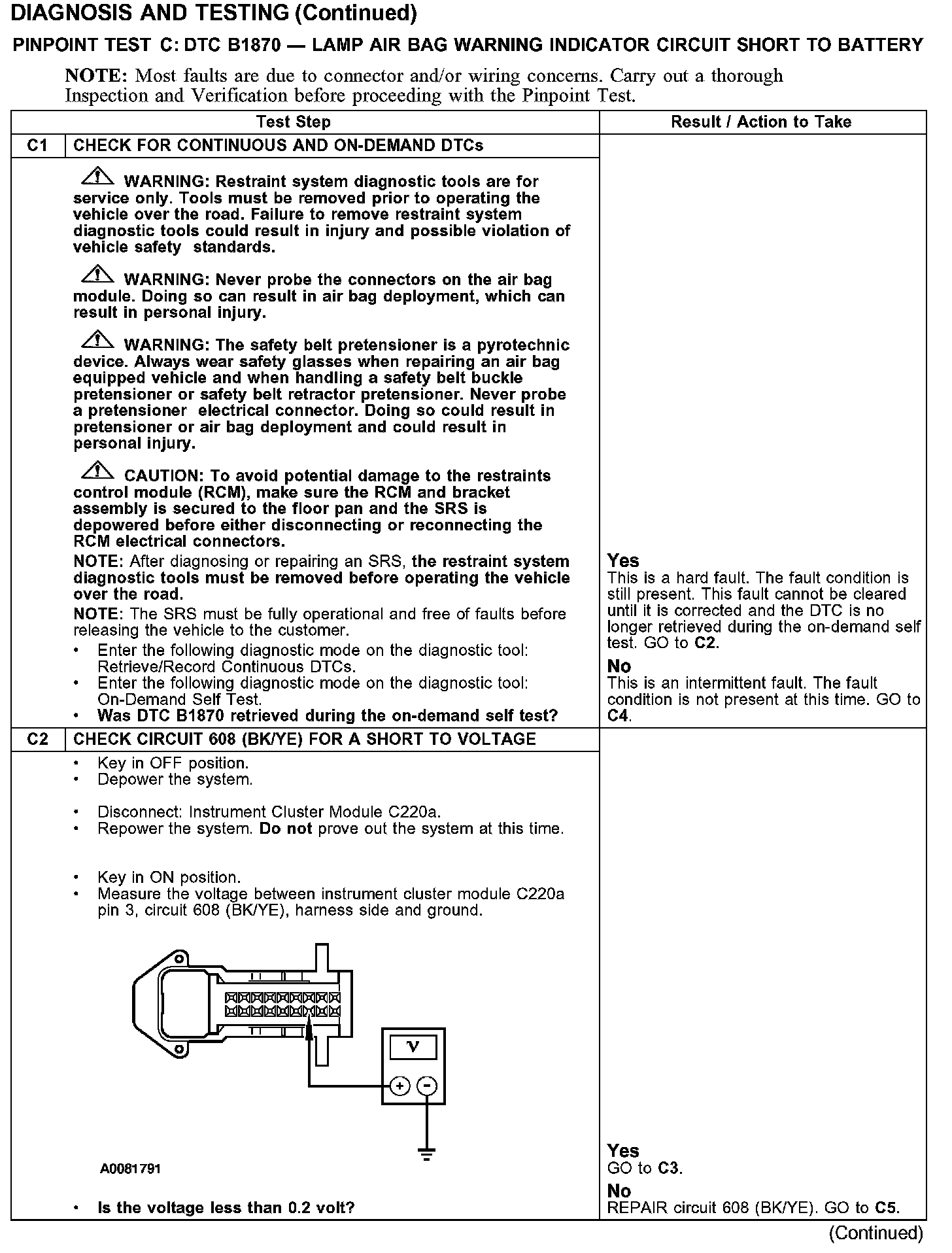

C1-C2:

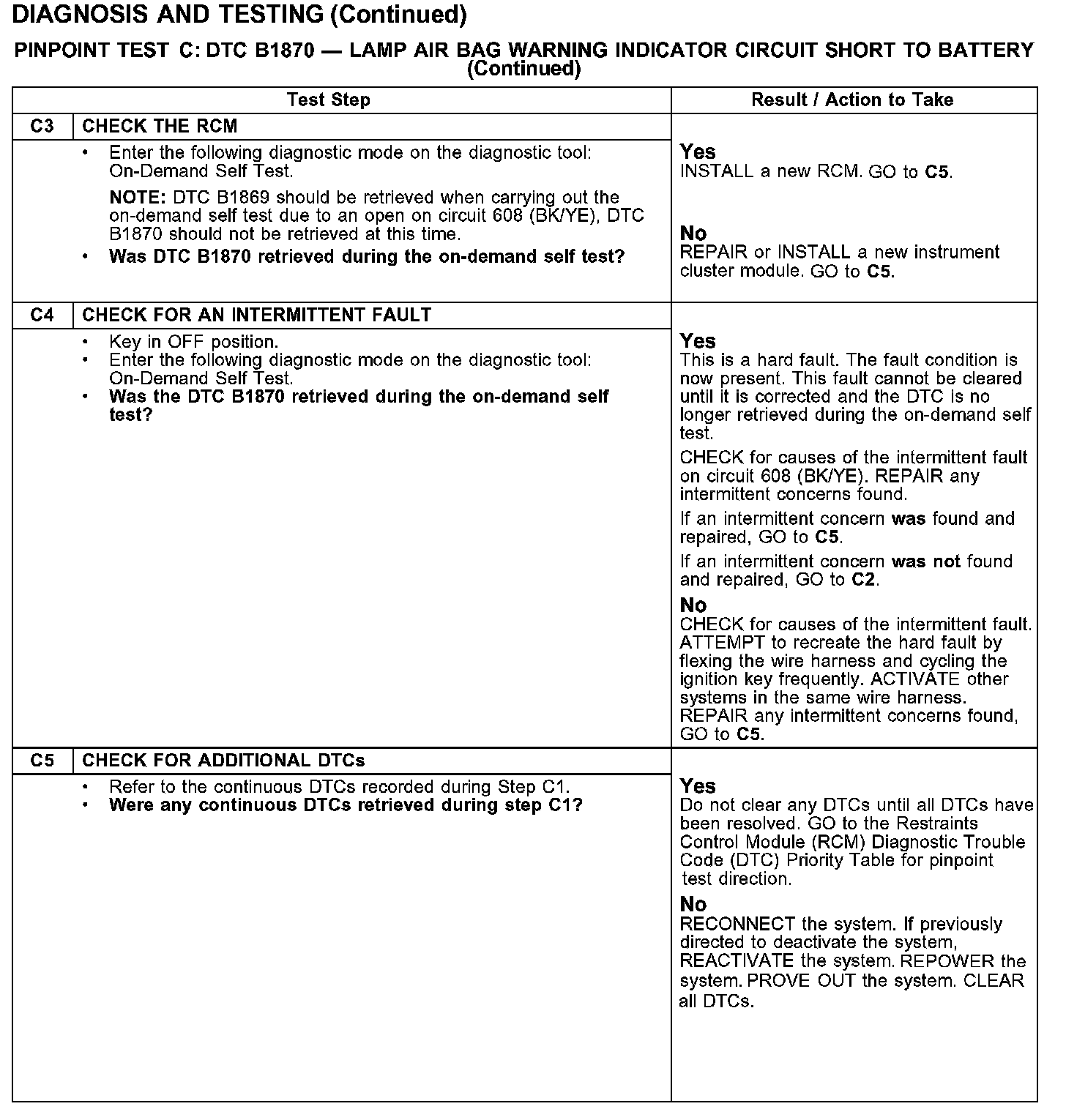

C3-C5:

Normal Operation
During normal operation, the air bag indicator will illuminate continuously for approximately 6 seconds and then go out after the ignition switch is placed in the ON or START position and no air bag faults exist. The air bag indicator will remain illuminated continuously after three cycles of a lamp fault code (LFC), if a fault exists.

If the restraints control module detects a short to battery on the air bag warning indicator circuit, it will store diagnostic trouble code (DTC) B1870 in memory. If any other DTCs are active with this DTC, the secondary air bag warning chime will be activated.

If the RCM detects an air bag indicator failure in addition to another SRS failure, the RCM will send a signal to the instrument cluster module to produce five sets of five tone bursts.

Possible Causes
An air bag indicator short to battery condition could be caused by:
- faulted wiring, terminals, or connectors.
- a faulted instrument cluster module.
- a faulted RCM.
