Pressure, Vacuum and Temperature Specifications
>>
Automatic Transmission/Transaxle
>>

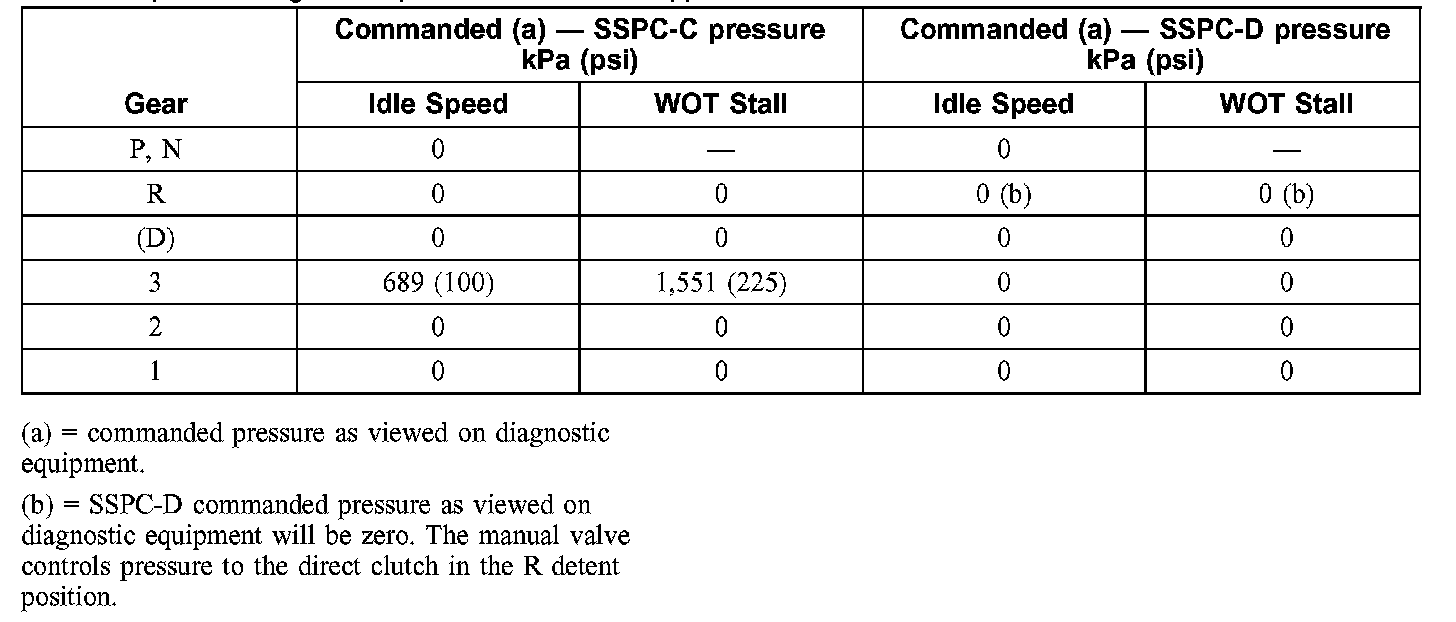

Pressure Chart C
Pressure Chart C
Pressure Chart C
NOTE:
Actual and Commanded pressures will vary based on calibration and transmission adaptive strategies. All pressures listed are approximate.
