Cross-Member: Service and Repair

TRANSMISSION SUPPORT CROSSMEMBER

Removal and Installation







1. Secure the high-lift transmission jack to the transmission.

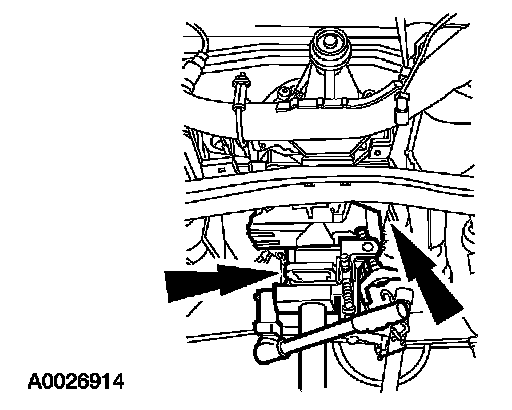

2. Remove the rear transmission mount insulator nuts.

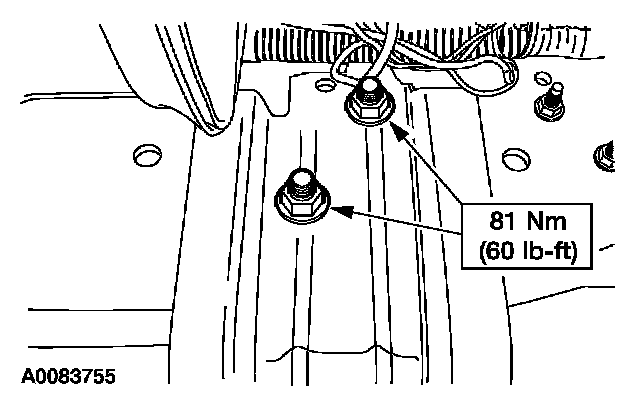

3. Remove the RH crossmember nuts.

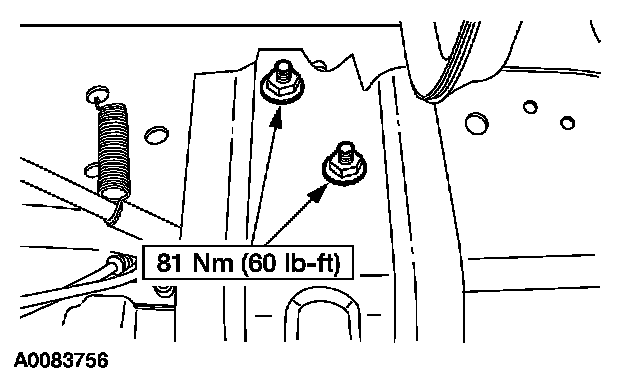

4. Remove the LH crossmember nuts.

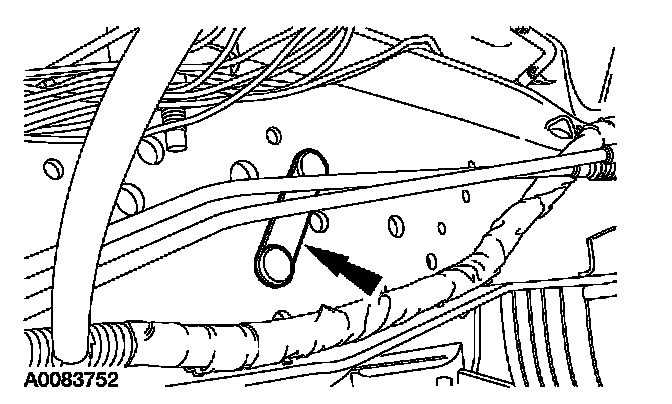

5. Remove the LH crossmember bracket.







6. Remove the RH crossmember bracket and transmission support crossmember.
7. To install, reverse the removal procedure.
