Home >> Ford >> 2005 >> Escape 2WD L4-2.3L VIN H Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Continuously Variable Transmission/Transaxle, CVT >> Control Module, CVT

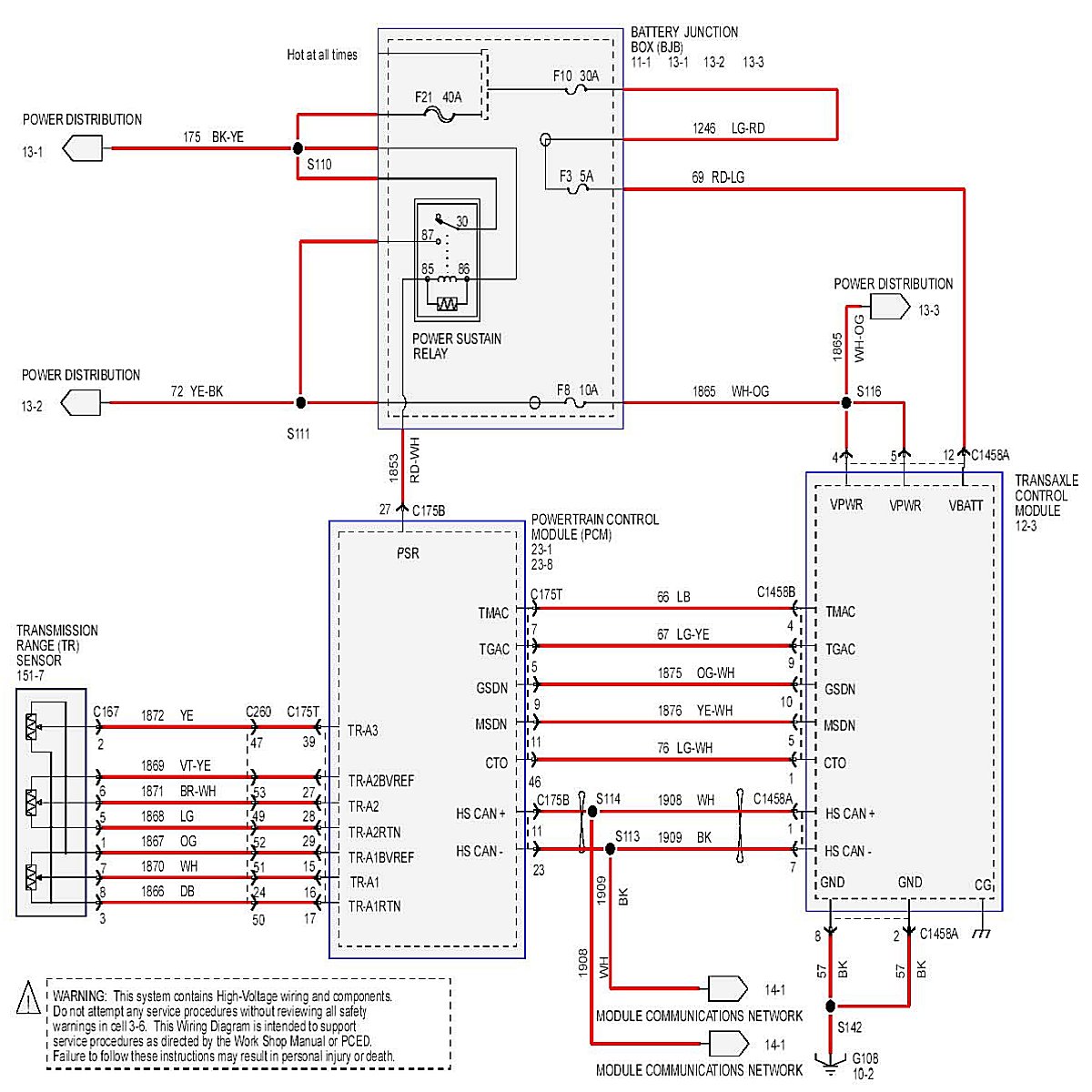

Control Module, CVT



29-1:
