Engine Lubrication
Engine Lubrication
Components-Exploded View

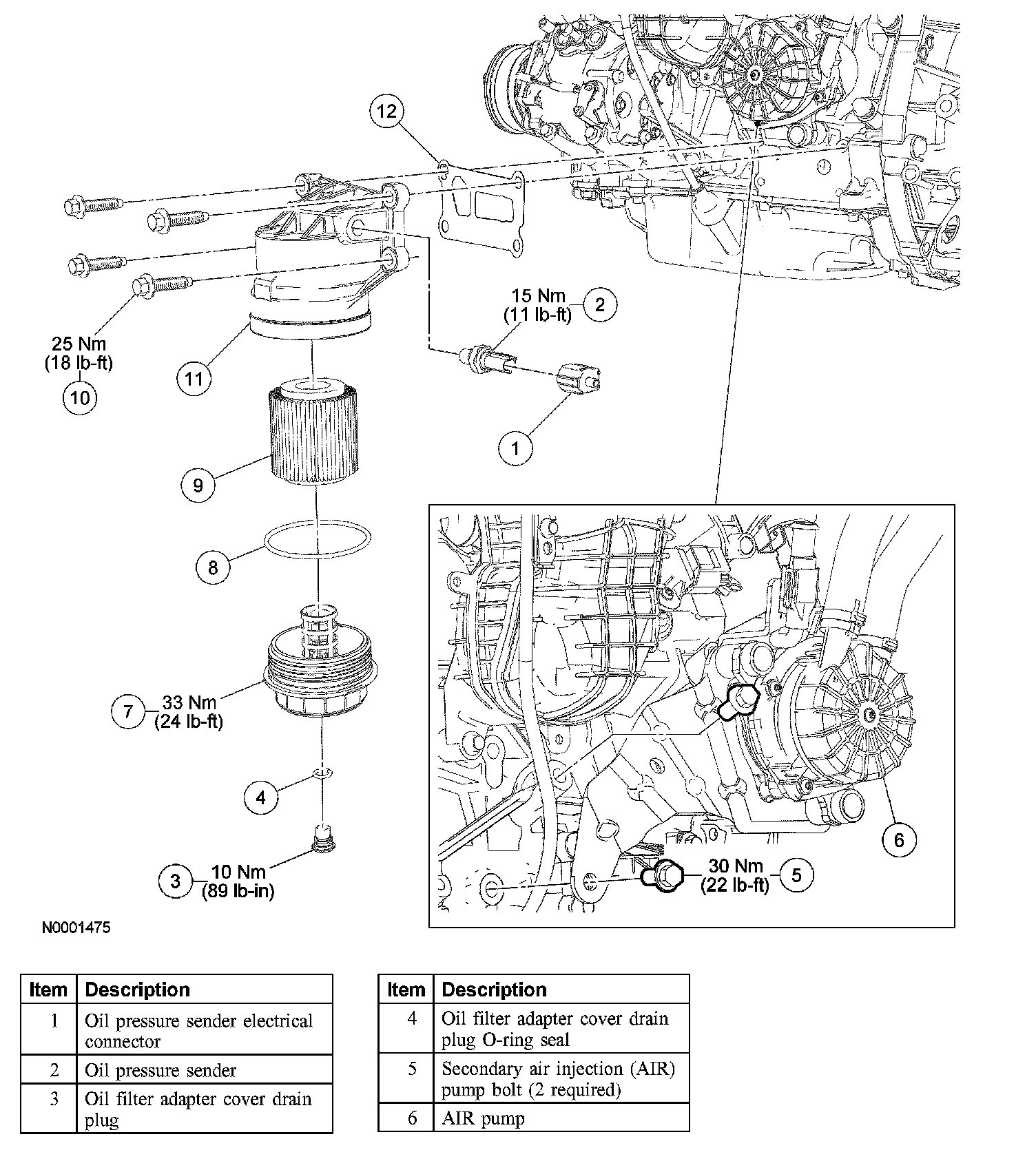

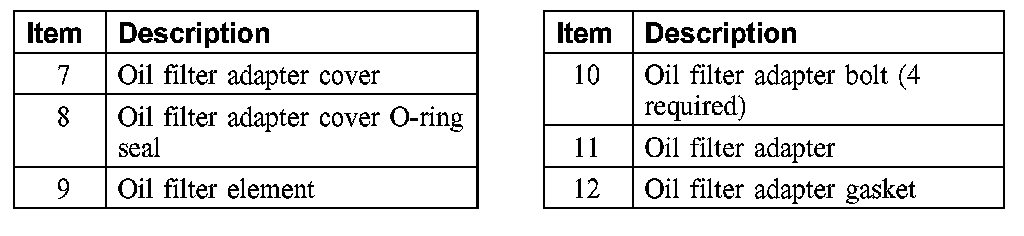

Oil Filter Adapter
and
Oil Pressure Sender

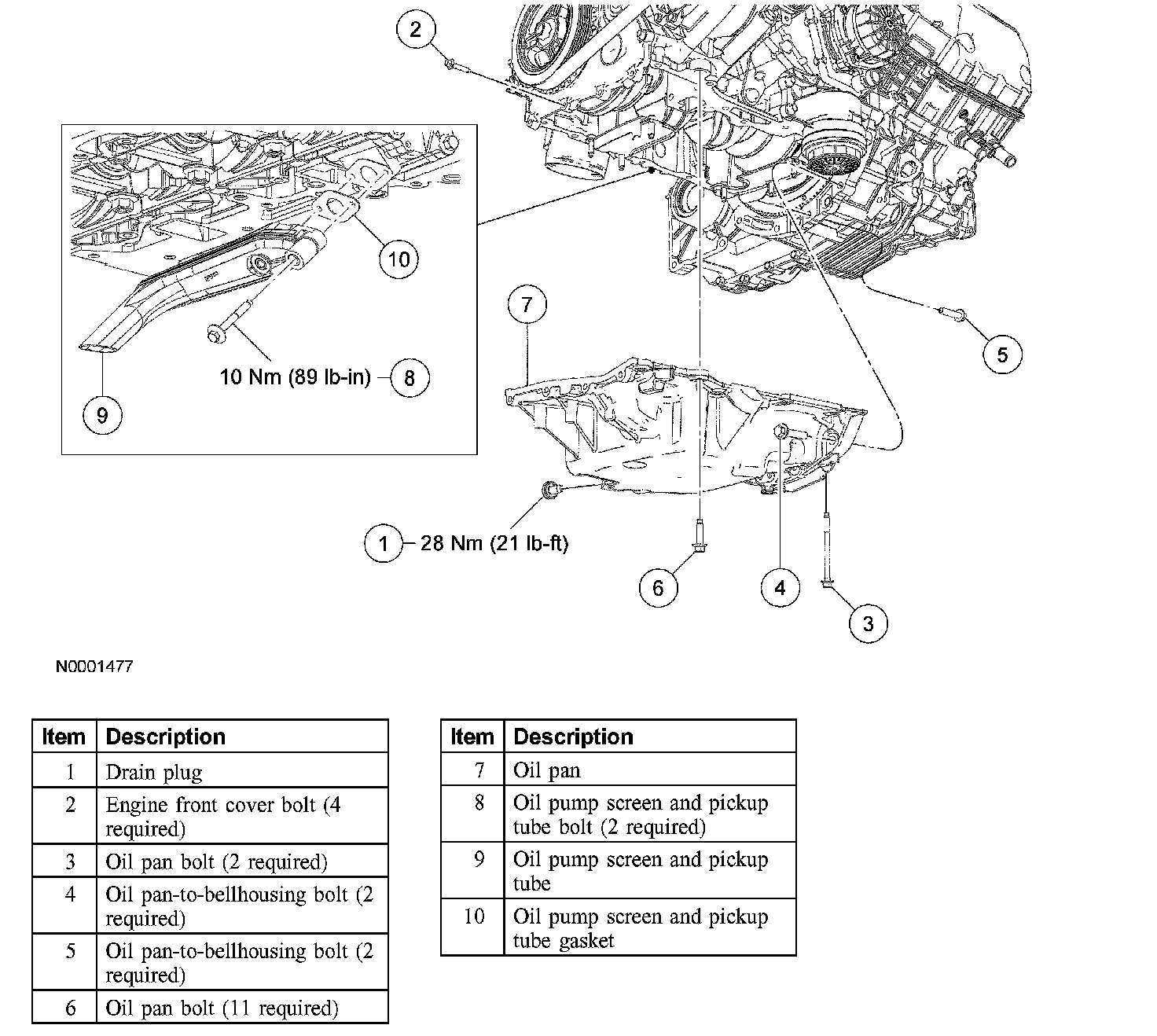

Oil Pan
, Oil Pump Screen and Pickup Tube
