Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Escape 2WD L4-2.3L VIN H Hybrid
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Climate Control Assembly C294a
Climate Control Assembly C294a

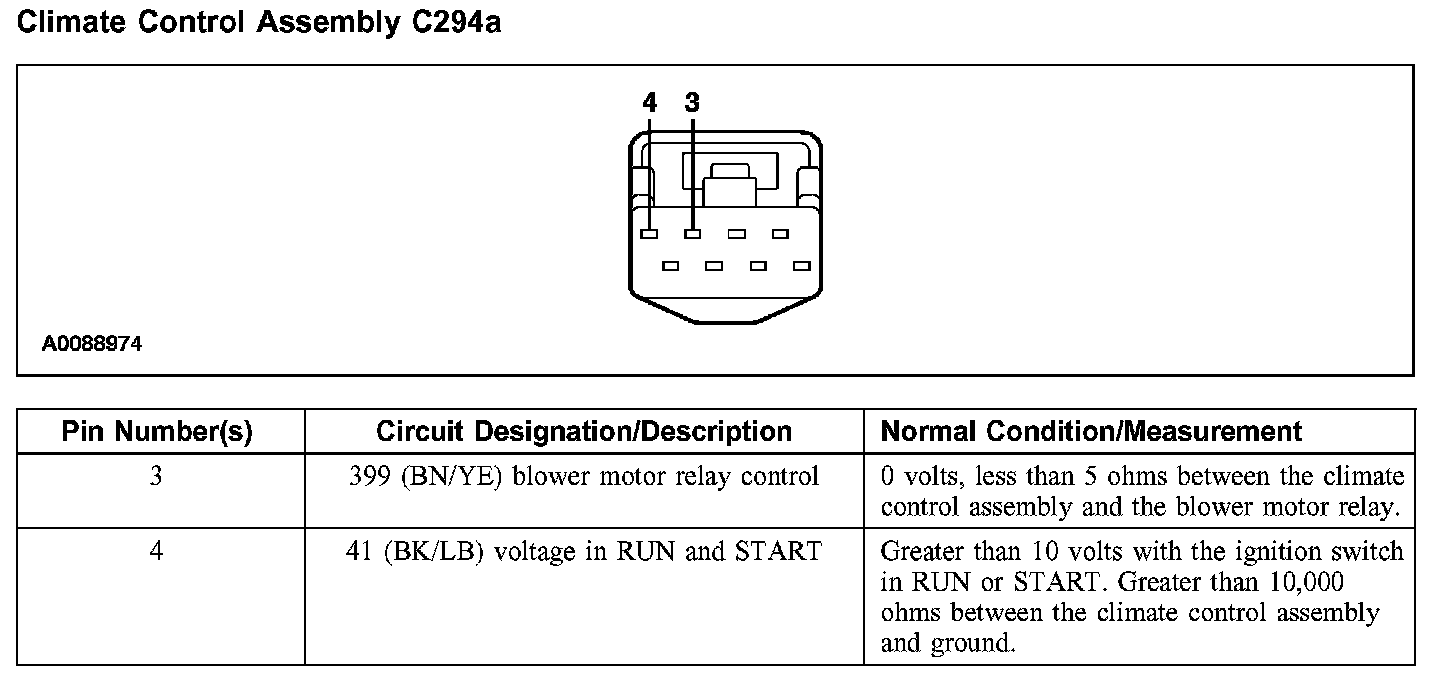

Climate Control Assembly C294a:
