Home >> Ford >> 2005 >> Escape 2WD L4-2.3L VIN H Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test B: Powertrain Control Module (PCM) Power Relay

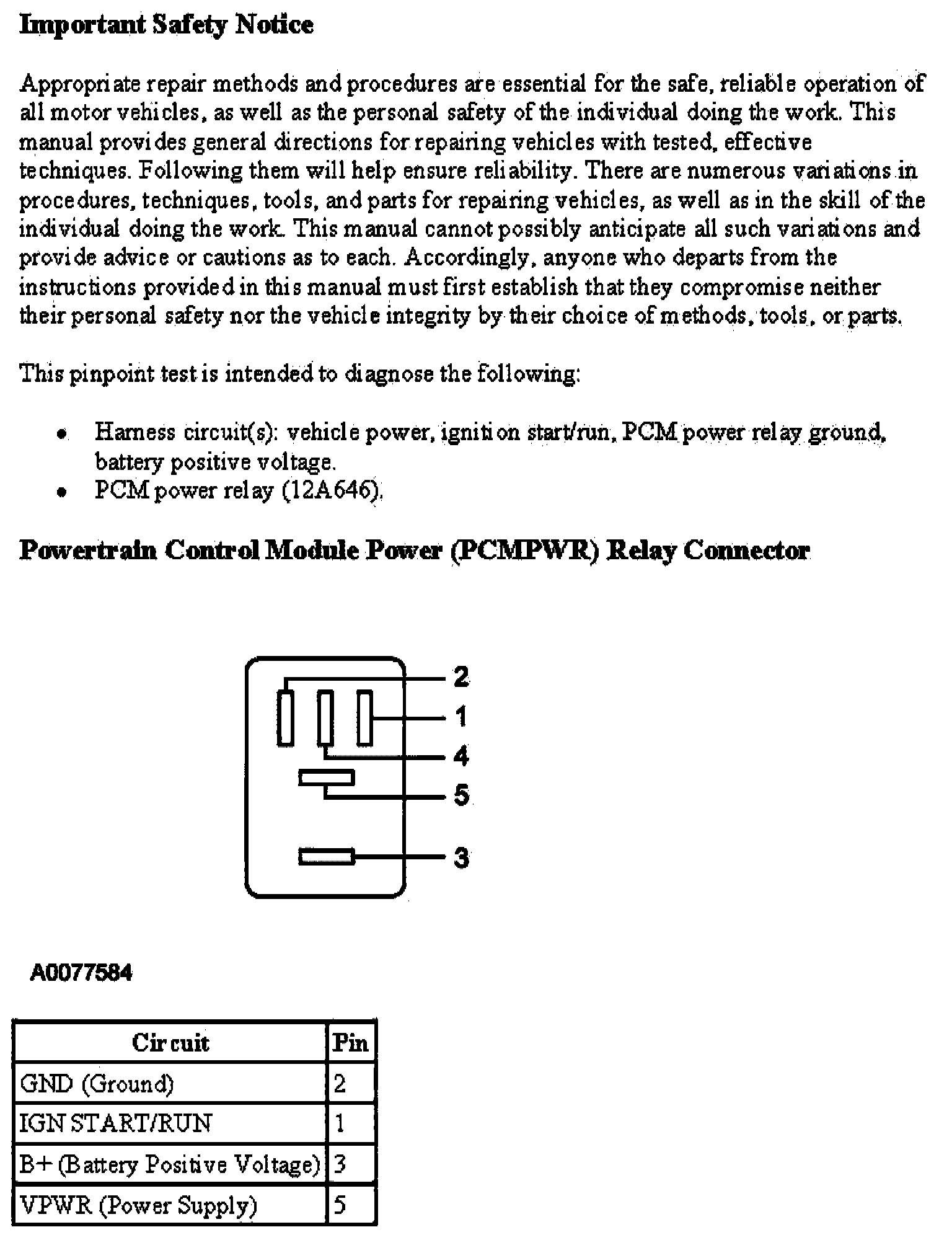

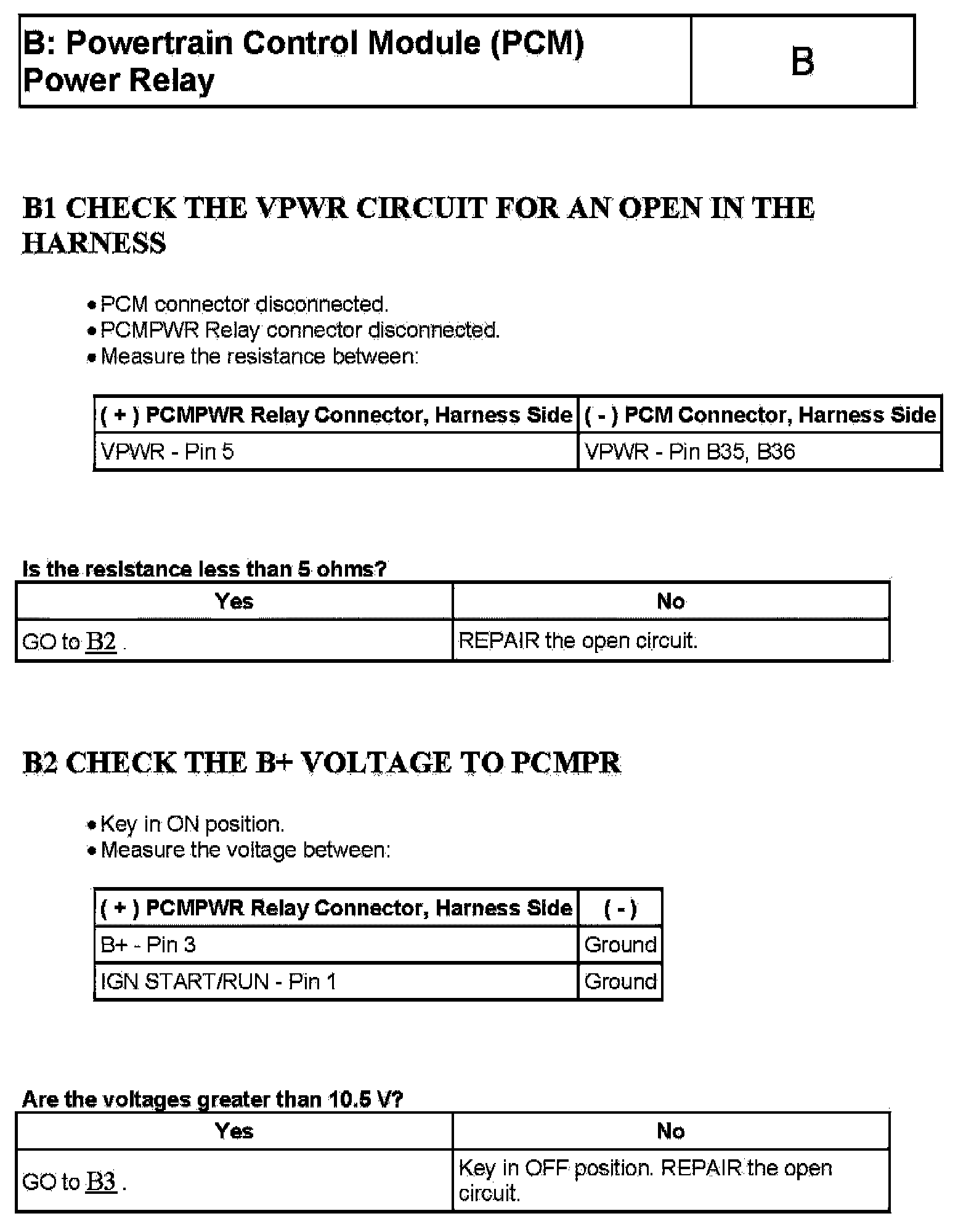

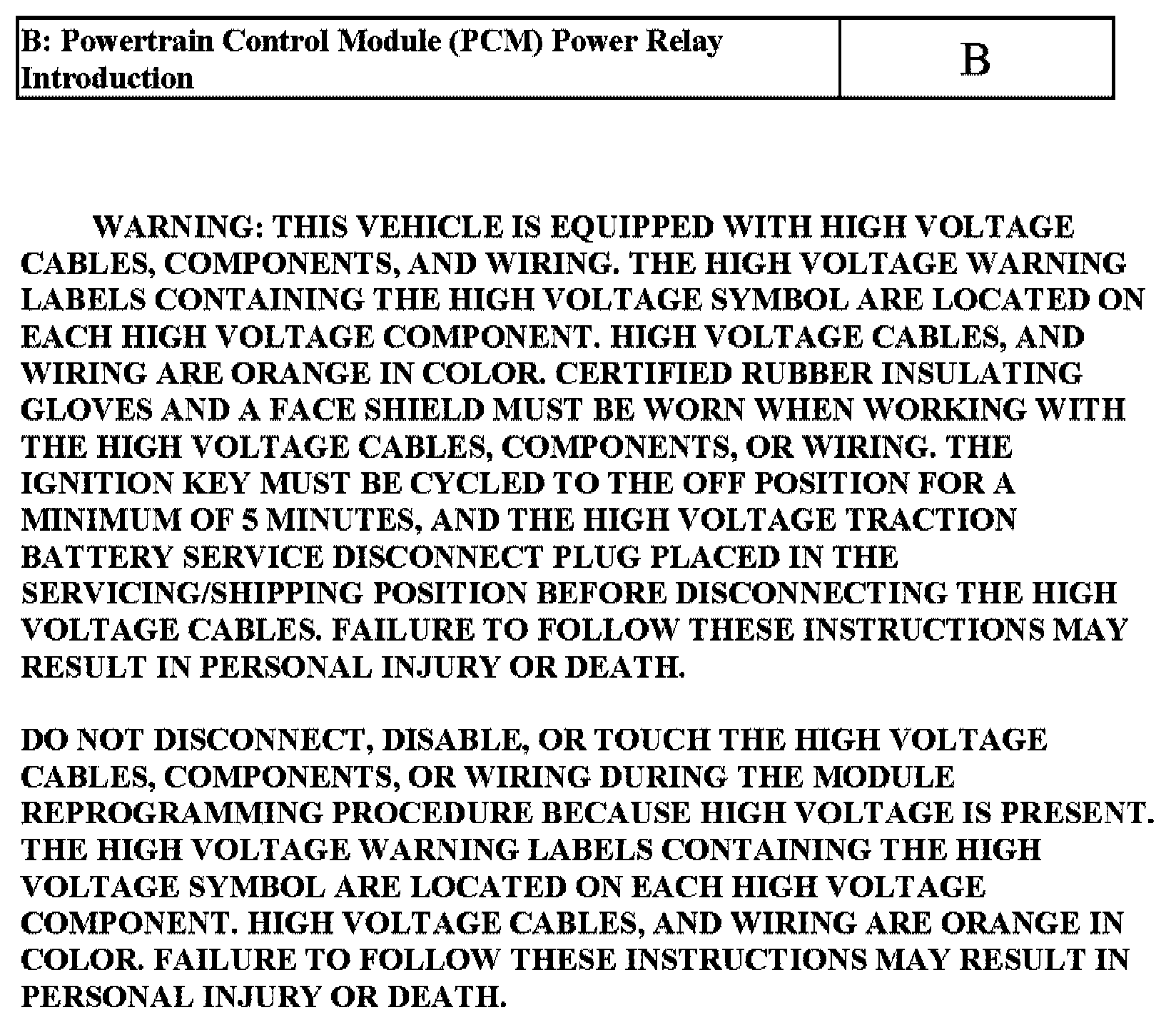

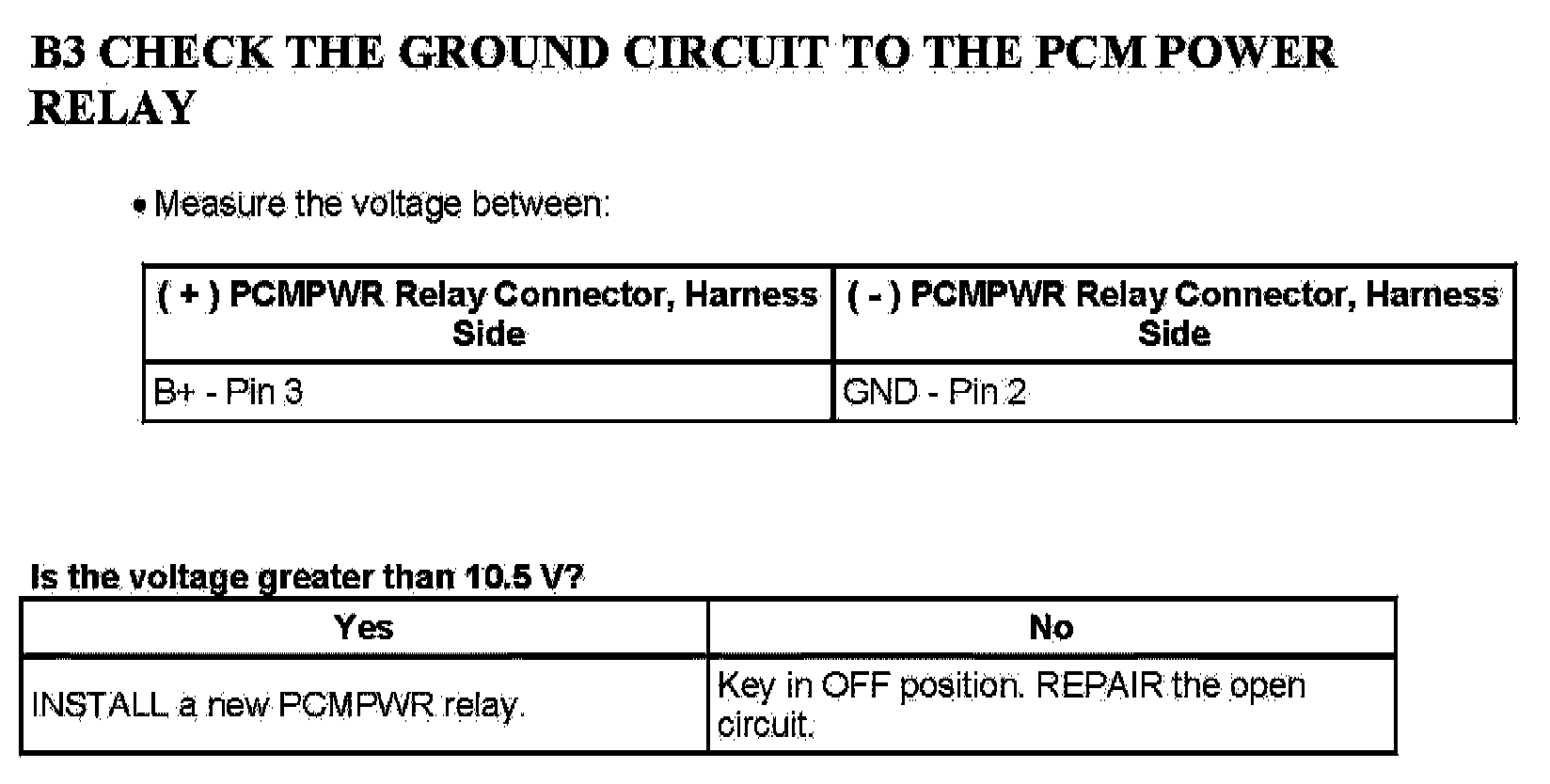

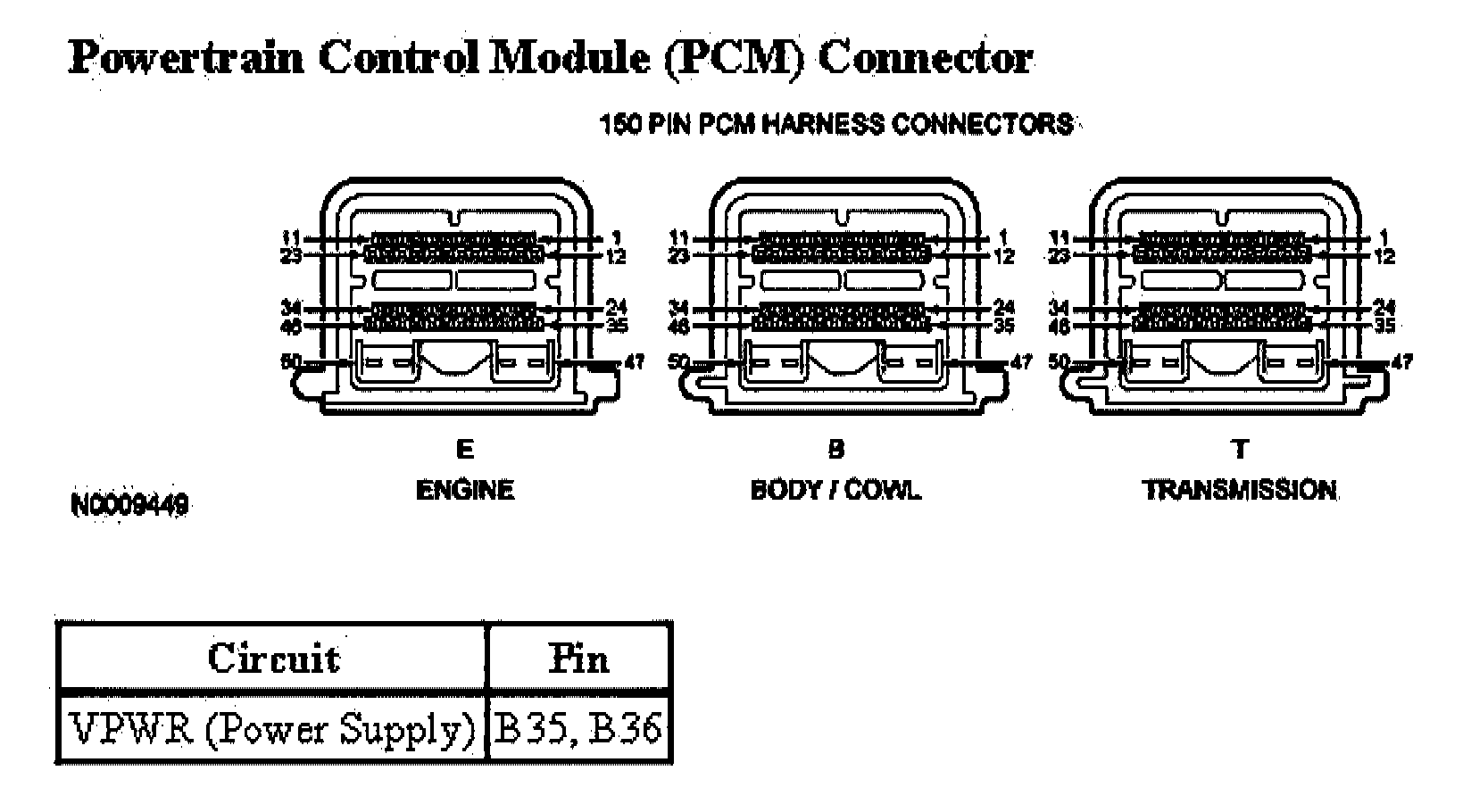

Test B: Powertrain Control Module (PCM) Power Relay
