Oil Pan, Engine

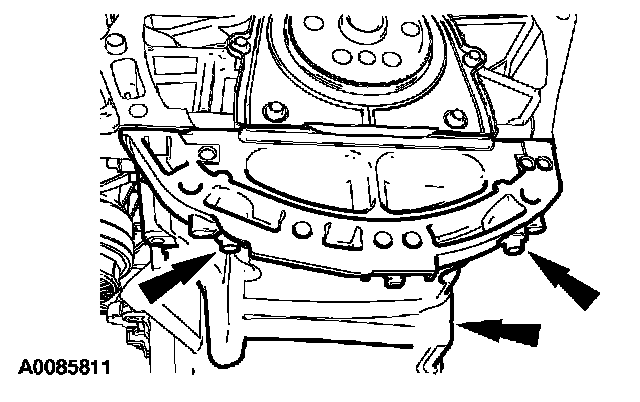

Install the 2 rear oil pan bolts finger-tight.

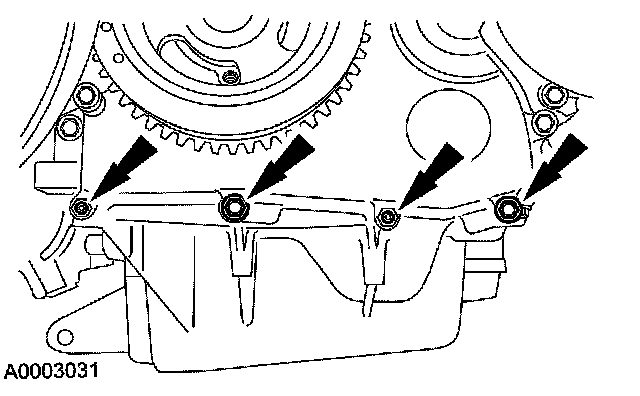

Install the 4 oil pan-to-bellhousing bolts.
Tighten to 48 Nm (35 ft. lbs.).

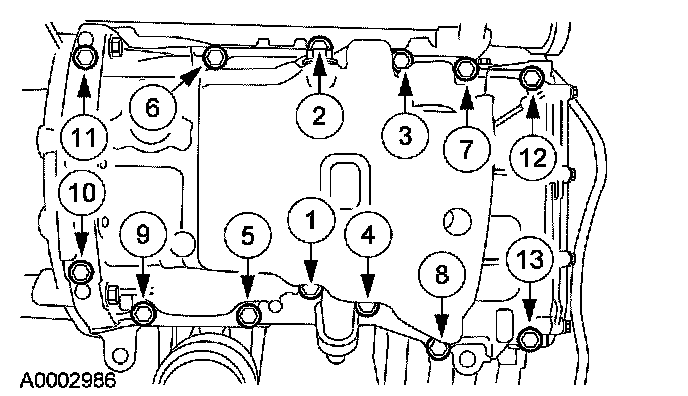

Oil pan bolts.
Tighten in the sequence shown to 25 Nm (18 ft. lbs.).
