Flywheel
NOTE: Special bolts are used for installation. Do not use standard bolts.
Flywheel bolt

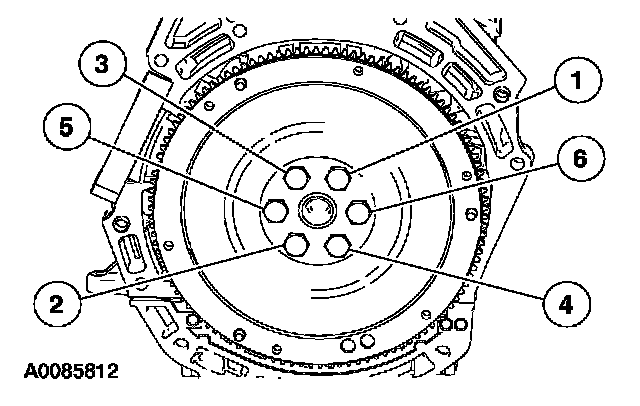

Tighten the bolts in the sequence shown in the following 3 stages:
^
Stage l: Tighten to
50 Nm (37 ft. lbs.).
^
Stage 2: Tighten to
80 Nm (50 ft. lbs.).
^
Stage 3: Tighten to
112 Nm (83 ft. lbs.).
