Home
>>
Ford
>>
2005
>>
Escape 2WD L4-2.3L VIN H Hybrid
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Control Module
>>
Locations
Control Module: Locations

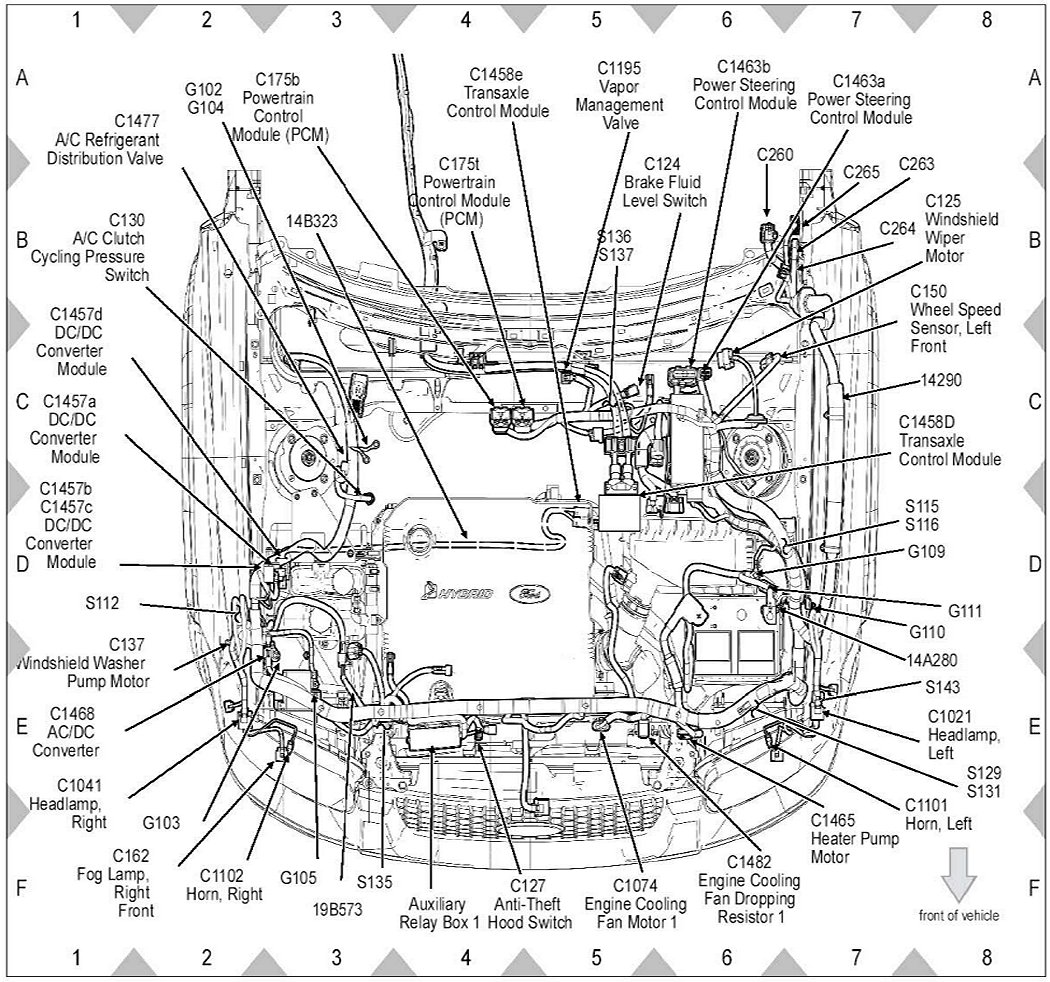

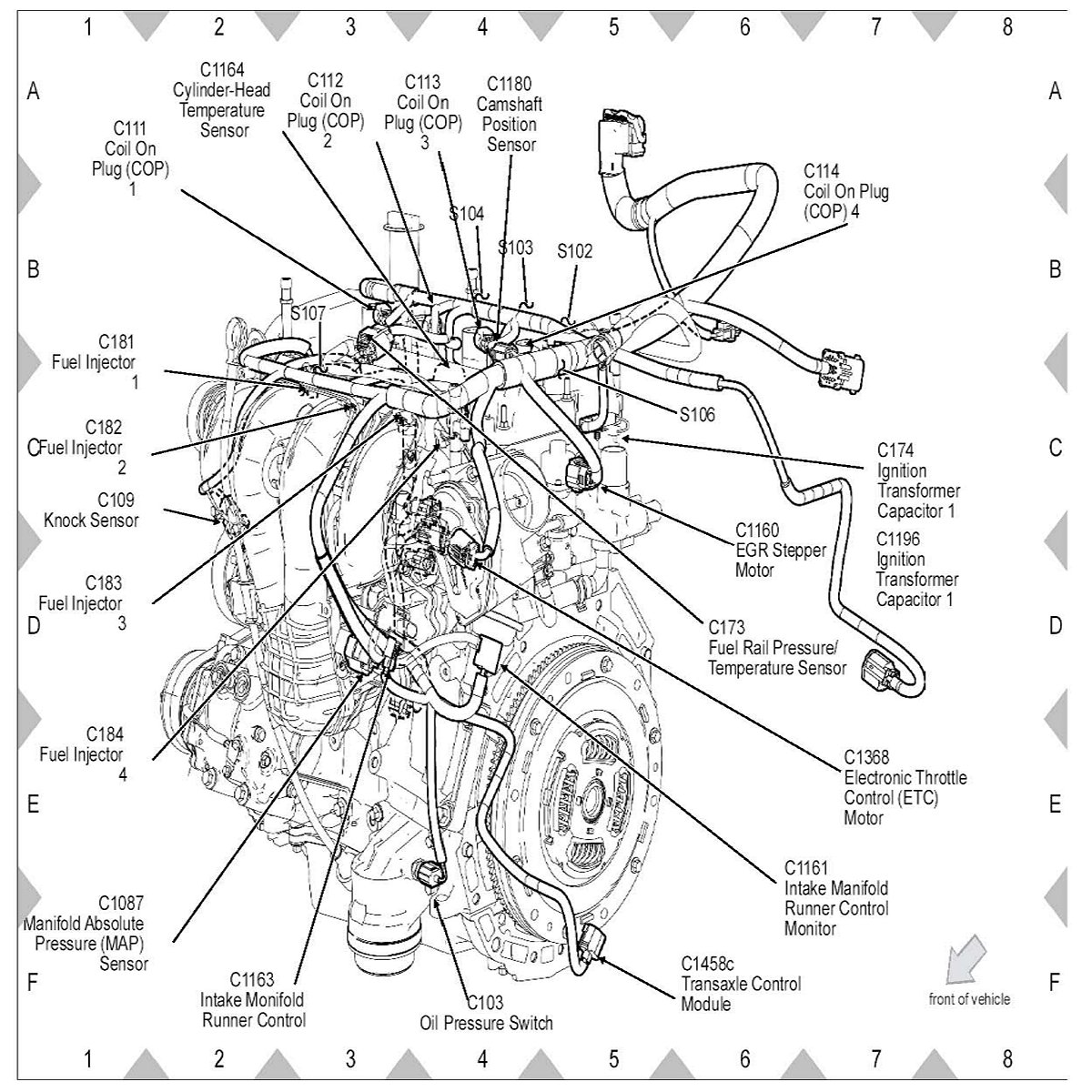

Transaxle Control Module (TCM)
