Gearshift Cables

Gearshift Cables





Removal
1. Remove the floor console.





2. NOTE: Both gearshift cables disconnect from the transmission in the same manner.

Disconnect the gearshift cables from the transmission.
1 Lift the gearshift cables out of the cable bracket.
2 Disconnect the gearshift cables from the transaxle gearshift control assembly.
3 Remove the 2 gearshift cable clips.

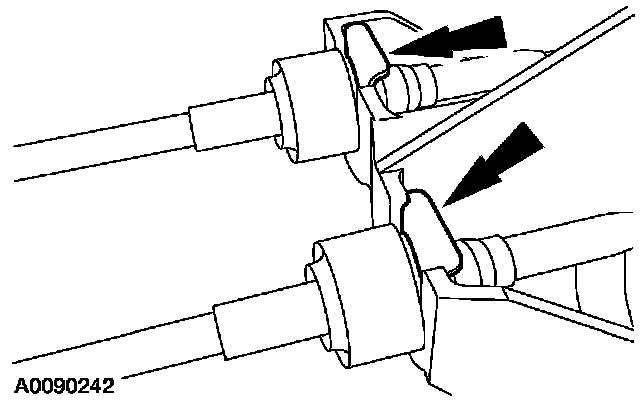

3. Remove the 2 gearshift cable clips.
4. Disconnect the 2 gearshift cables from the gearshift lever.
5. Remove the 2 gearshift cable grommet nuts.
6. Remove the gearshift cables.

Installation





1. CAUTION: When inserting the gearshift cables through the dash panel, make sure the arrow on the grommet is pointing down.

Insert the gearshift cables through the dash panel.





2. Connect the select cable.





3. Connect the gearshift cable.
4. Install the 2 gearshift cable grommet nuts.
^ Tighten to 10 Nm (89 inch lbs.).





5. CAUTION: Make sure the clips are set completely within the cable adapter groove and fully seated.

Install the 2 gearshift cable clips.
6. Connect the gearshift cables to the transaxle gearshift control assembly.
7. Adjust the gearshift cables.
8. Install the floor console.
