Home >> Ford >> 2005 >> Escape 4WD L4-2.3L VIN H Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests FE: Ignition Switch Inputs

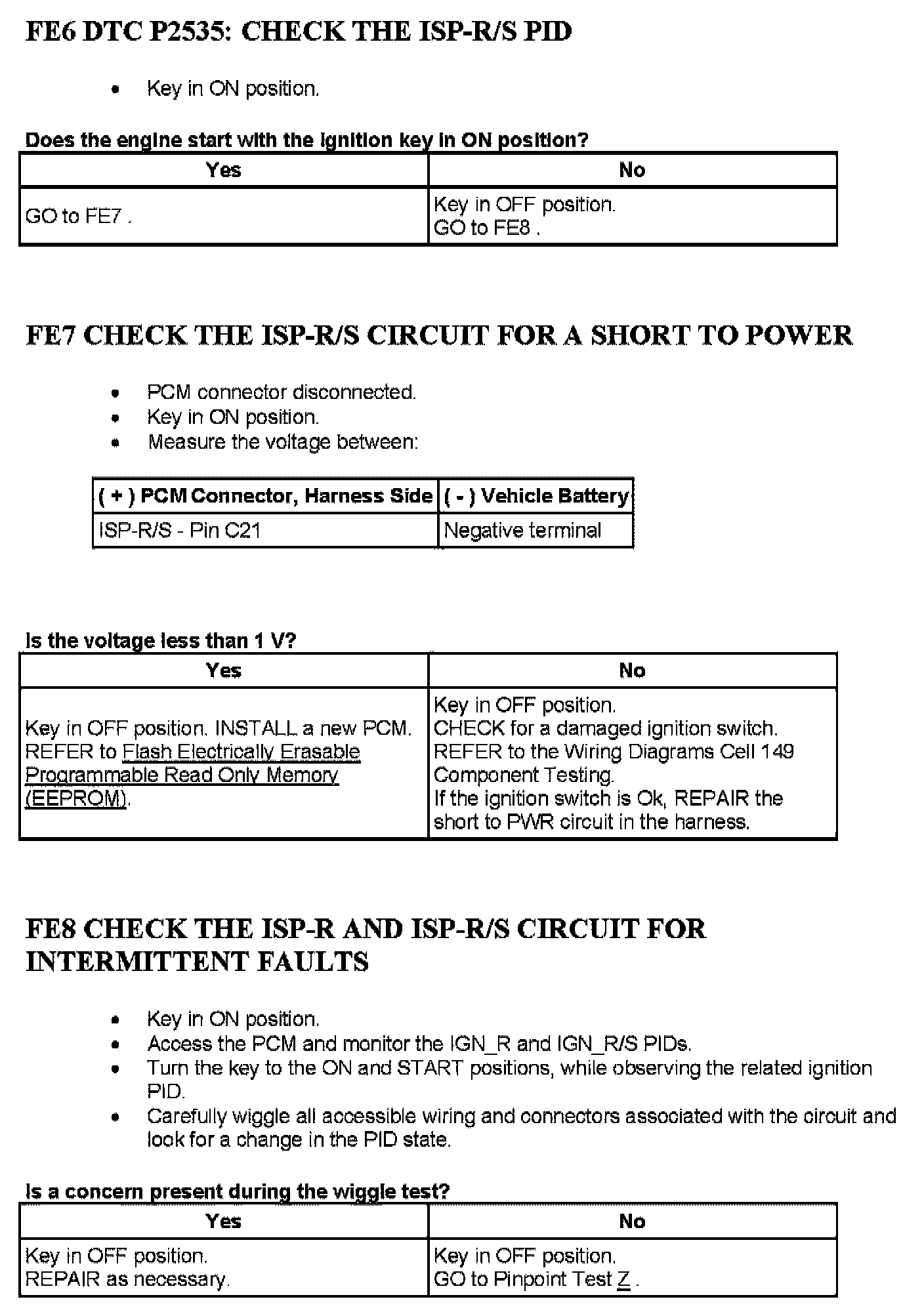

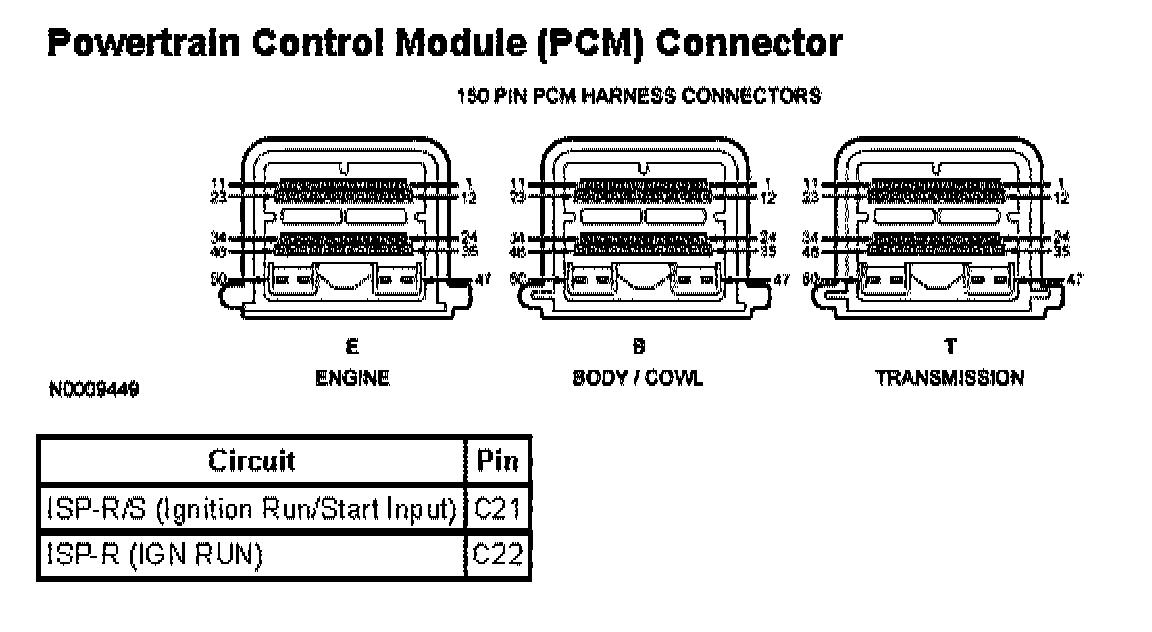

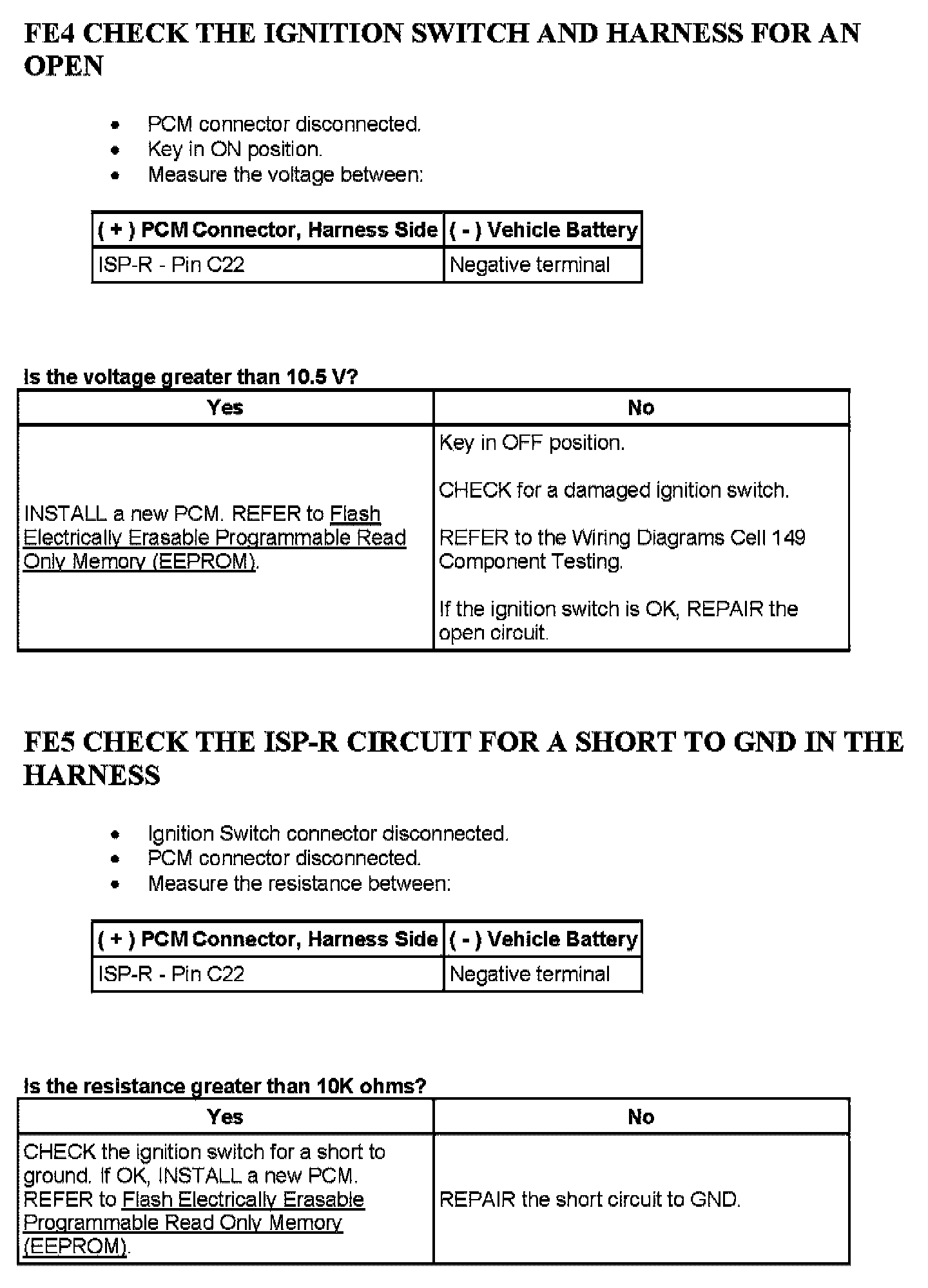

Tests FE: Ignition Switch Inputs
