Register

REGISTER

Removal and Installation







1. Fabricate a removal tool from a 1/8-inch diameter rod.

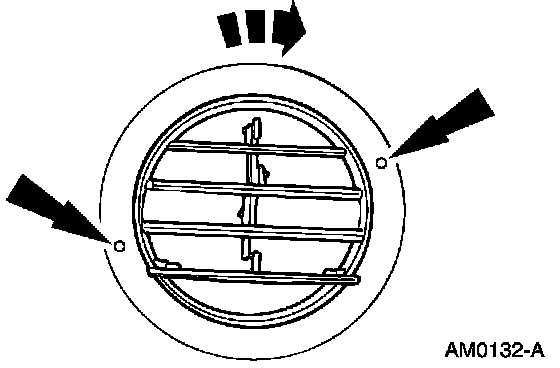

2. Rotate the A/C register with the removal tool to align the retaining ears with the clearance openings and remove the A/C register.
3. To install, reverse the removal procedure.
