Headlamp: Service and Repair
LAMP ASSEMBLY - HEADLAMP, AERODYNAMICRemoval and Installation 1.

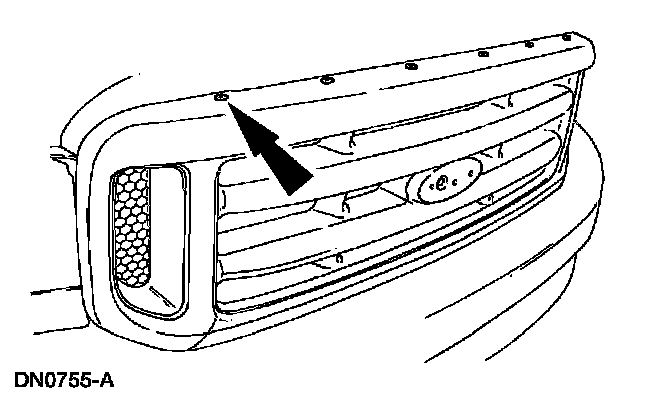

Remove the upper grille attachment screws.
2.

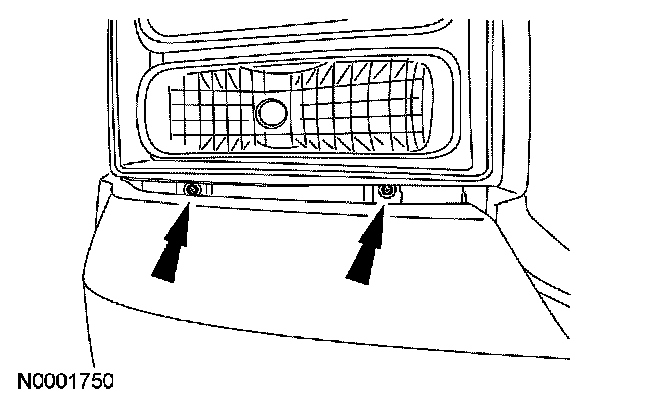

Remove the two lower headlamp assembly screws.
3.
Remove the headlamp assembly.
-
Remove the two top headlamp assembly screws and release the locking tab.
-
Disconnect the electrical connectors.
4.
To install, reverse the removal procedure.
