EGR Tube: Service and Repair

EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE

Removal and Installation
1. Remove the air cleaner outlet tube.







2. Remove the exhaust gas recirculation (EGR) valve-to-exhaust manifold tube.

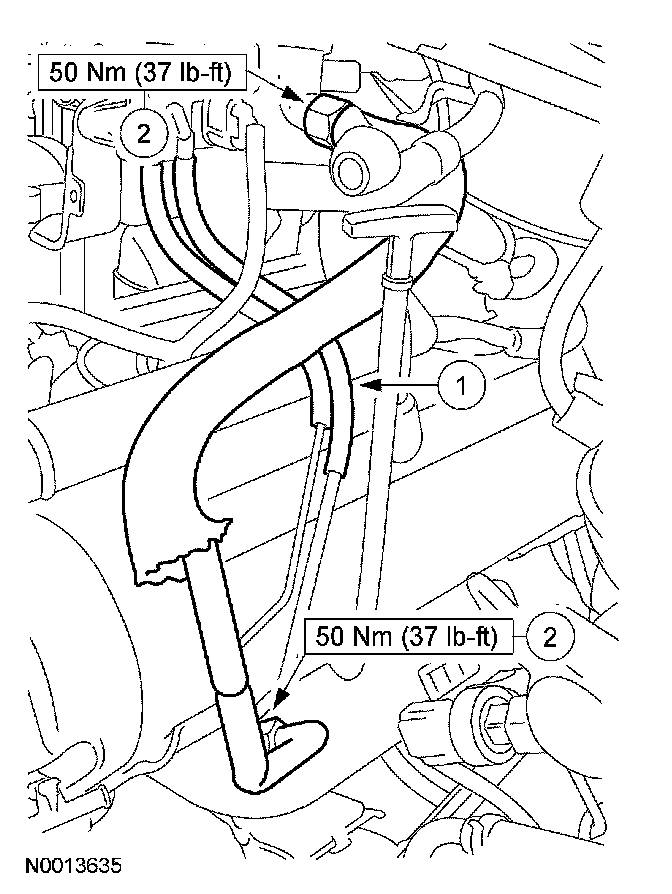

1. Remove the two differential pressure feedback EGR sensor hoses.
2. Disconnect the EGR valve tube fittings.
3. To install, reverse the removal procedure.
