Pressure Feedback Exhaust Sensor: Service and Repair

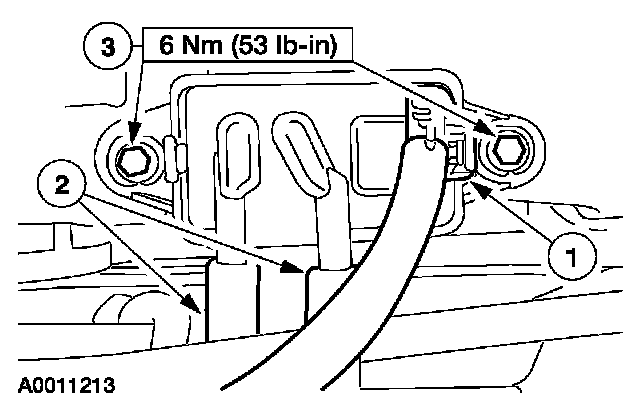

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SENSORRemoval and Installation 1.
Disconnect the battery ground cable.
2.
Remove the differential pressure feedback EGR (if equipped).
1.
Disconnect the electrical connector.
2.
Disconnect the hoses.
3.
Remove the bolts (nuts if applicable).
3.
To install, reverse the removal procedure.
