Throttle Position Sensor: Service and Repair
THROTTLE POSITION (TP) SENSORRemoval and Installation 1.
Disconnect the battery ground cable.
2.

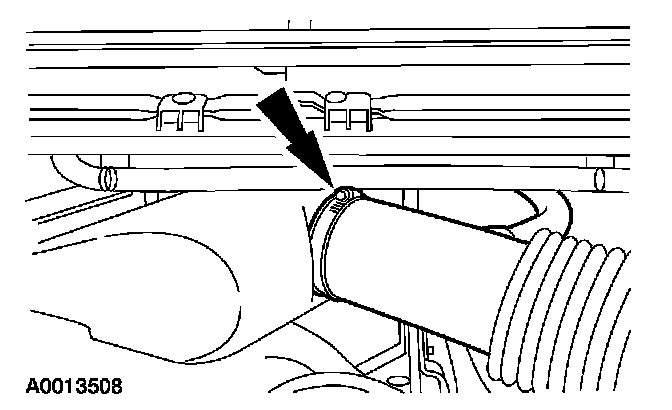

Loosen the clamp and position the air cleaner outlet tube aside.
3.
Remove the accelerator cable snow shield.
4.

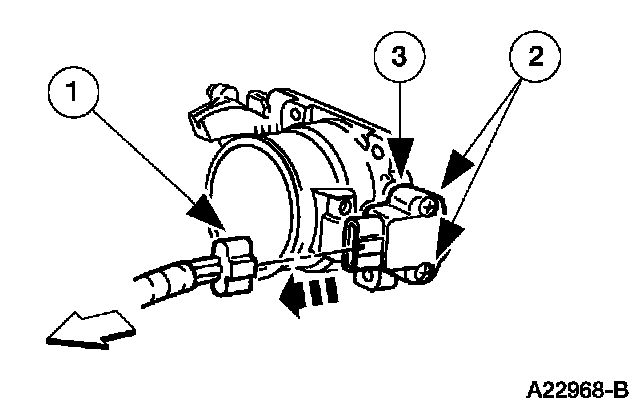

Remove the throttle position (TP) sensor.
1.
Disconnect the electrical connector.
2.
Remove the screws.
3.
Remove the TP sensor.
5.
To install, reverse the removal procedure.
