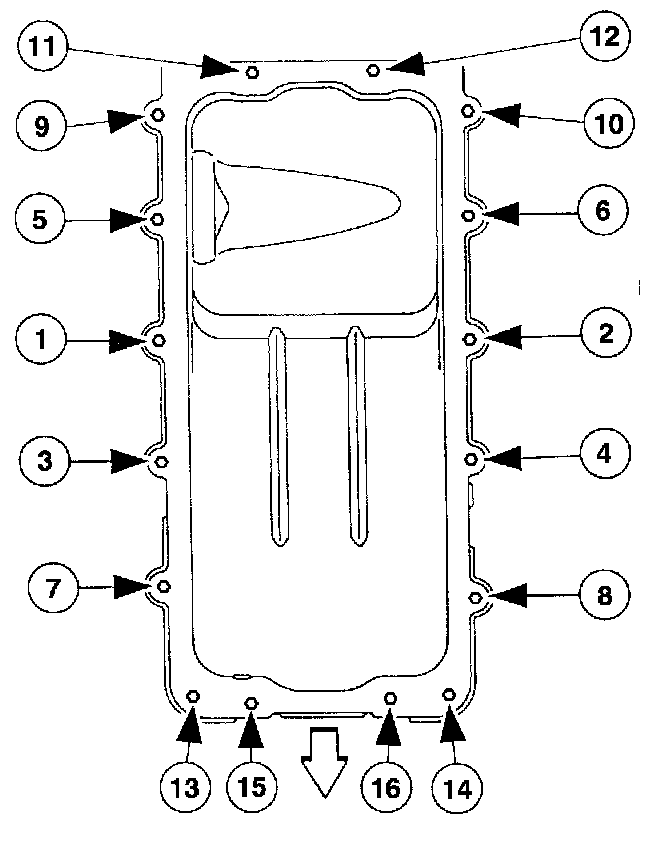

Oil Pan, Engine





Stage 1: Tighten to 20 Nm (15 ft. lbs.).
Stage 2: Tighten an additional 90 degrees.
