Front Seat Cushion - 20 Percent
FRONT SEAT CUSHION - 20 PERCENTDisassembly
1. Remove the front seats.
2. Remove the front seat.
3. Remove the seat backrest.
4. Remove the seat latch.

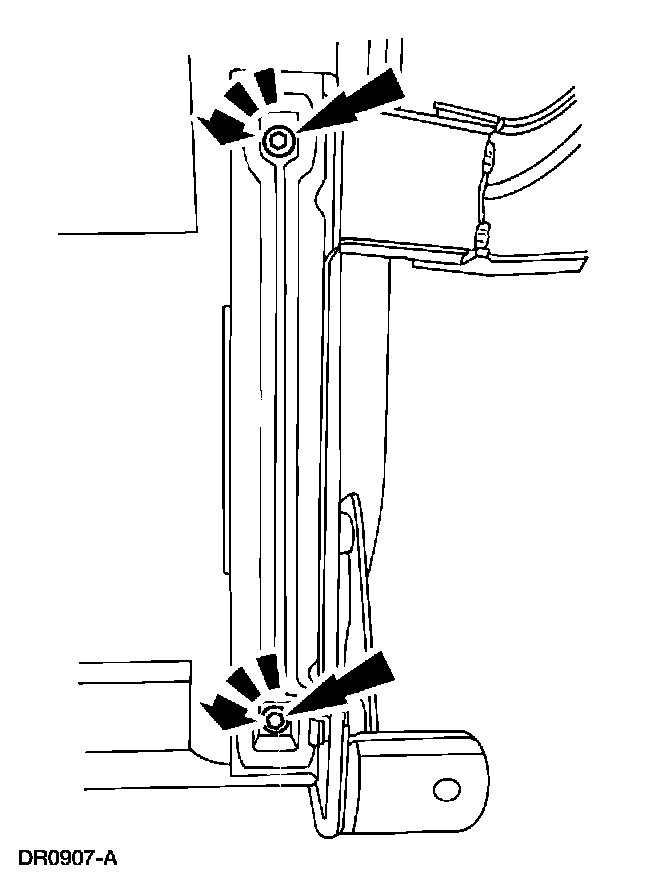

5. Remove the LH seat backrest bracket retaining bolts.
6. NOTE: LH shown, RH similar.
Remove the five RH and LH seat riser retaining bolts.
7. Unfasten the J-clips. Remove the seat cushion foam pad.
Assembly
1. Position the seat cushion foam pad on the pan. Fasten the J-clips.
2. NOTE: LH shown, RH similar.
Install the RH and LH seat riser retaining bolts.
3. Install the LH seat back bracket bolts.
4. Install the seat latch.
5. Install the seat backrest.
6. Install the front seat.
7. Install the front seats.
