Pinout Values and Diagnostic Parameters

Control System Diagnostic Sheet Reference

NOTE: Reference values are typical and may vary 10% depending upon current altitue, accessory operation, engine load, operating time, temperature, and vehicle speed.

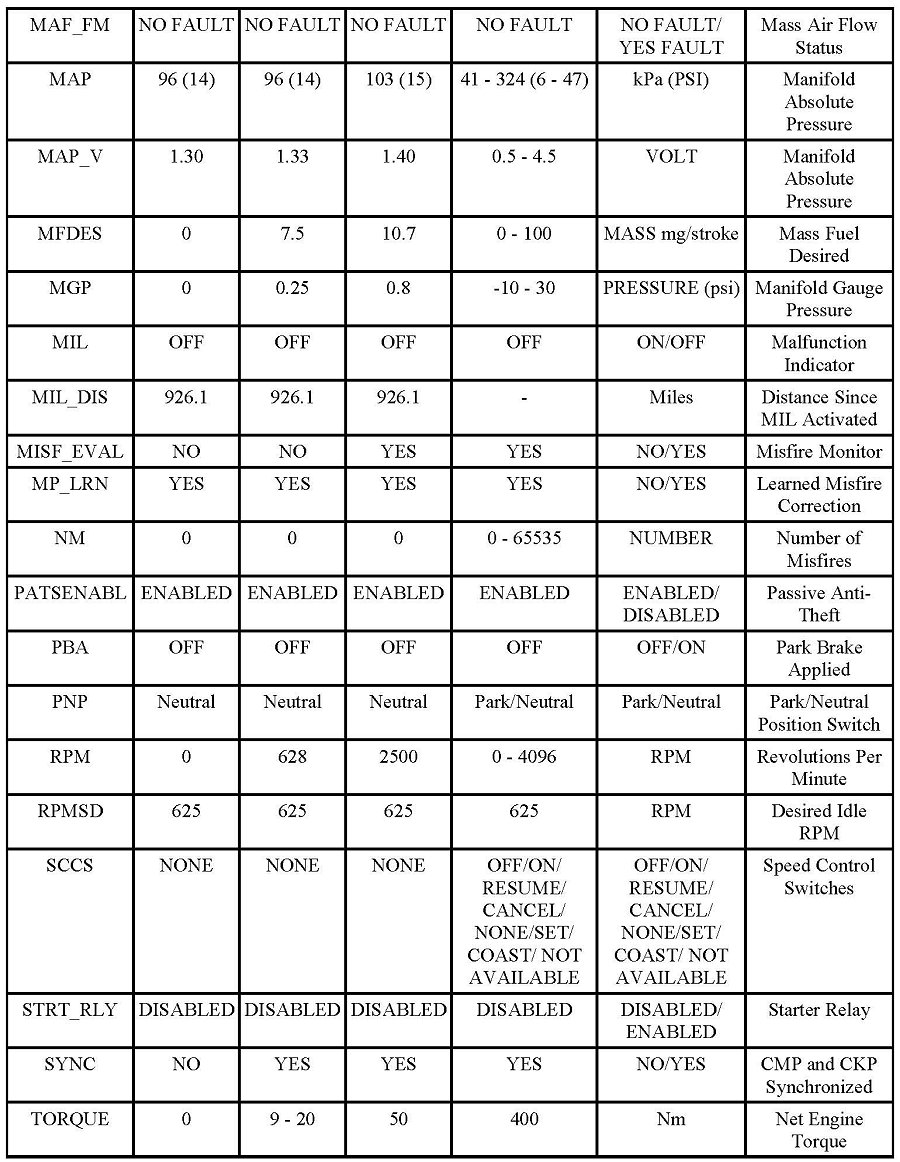

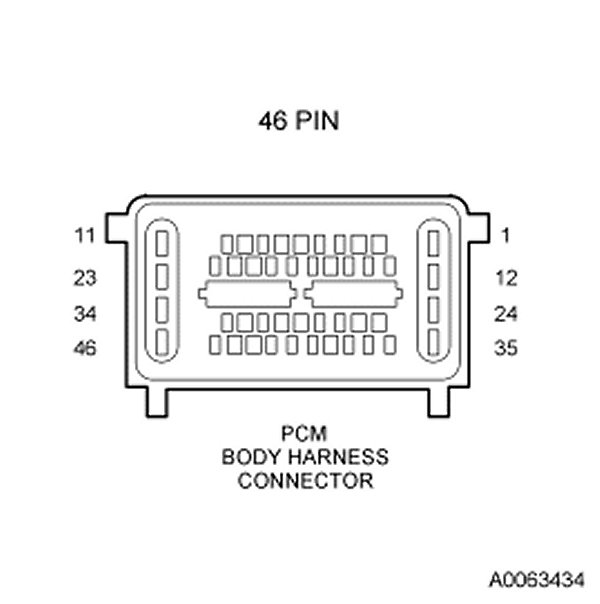

PCM Pin Descriptions and Expected Values

ENGINE
