Ford
>>
2005
>>
Expedition 2WD V8-5.4L SOHC VIN 5
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Auxiliary Function Selector Switch Assembly, Rear
Auxiliary Function Selector Switch Assembly, Rear

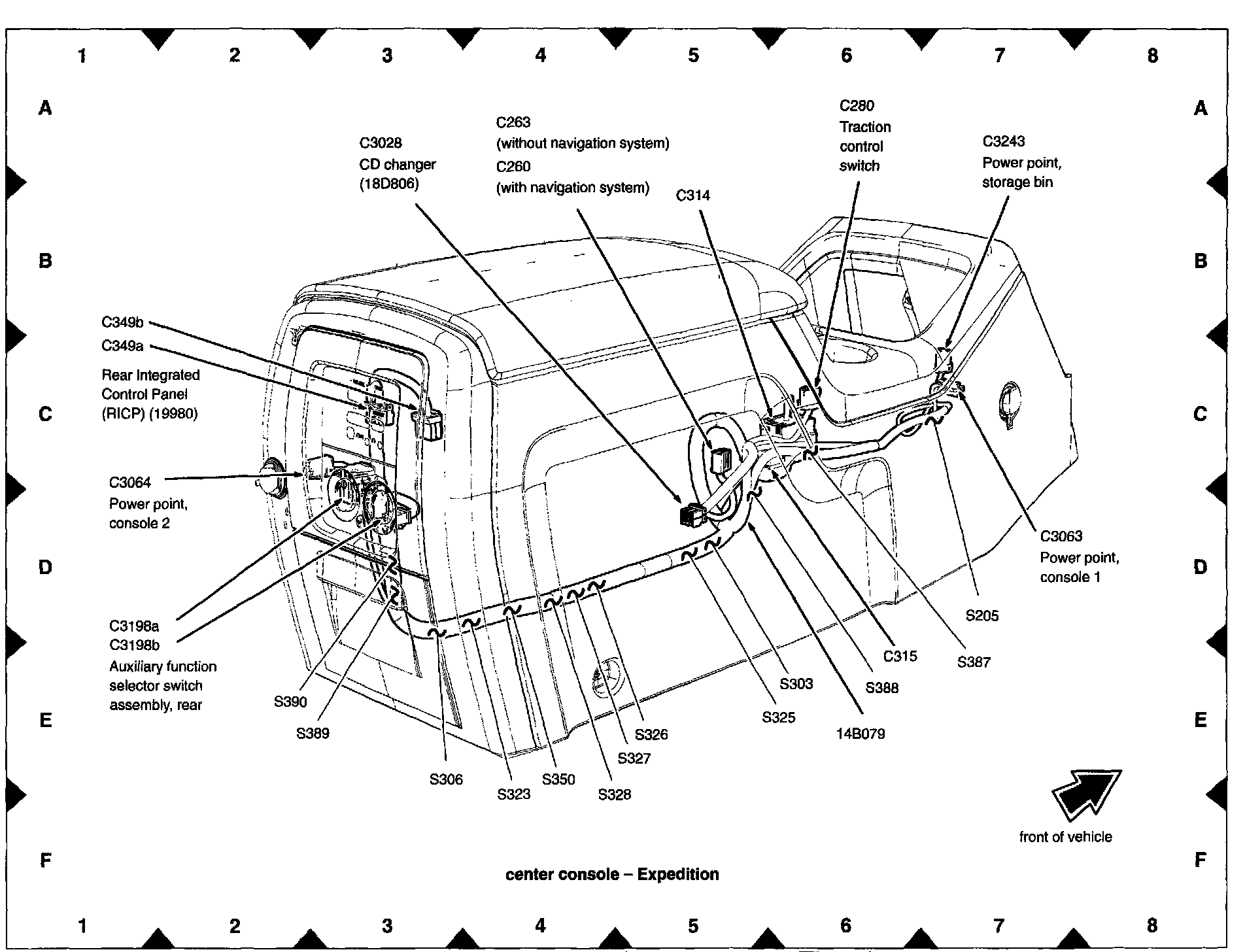

View 151-24 (Centre Console):
