CLIMATE CONTROL ASSEMBLY - MANUAL

Removal and Installation







1. Remove the screws and the instrument cluster finish panel.
- Disconnect the electrical connectors.

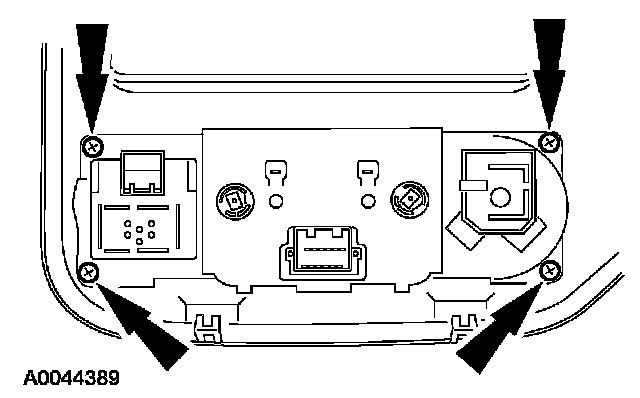

2. Remove the screws and the climate control assembly.
3. To install, reverse the removal procedure.
