Function Selector Switch

FUNCTION SELECTOR SWITCH

Removal and Installation
1. Remove the manual climate control assembly.
2. Pull and remove the function selector knob.

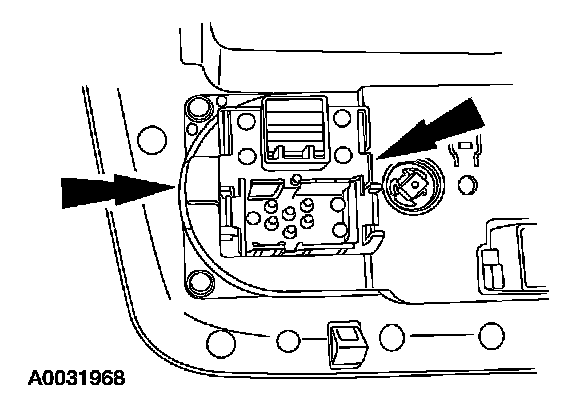

3. Release the clips and remove the function selector switch.
4. To install, reverse the removal procedure.
