Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

Removal and Installation

NOTE: When installing a new module, it must be calibrated and configured (either by download/upload or uploading the as-built data method).

1. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery.

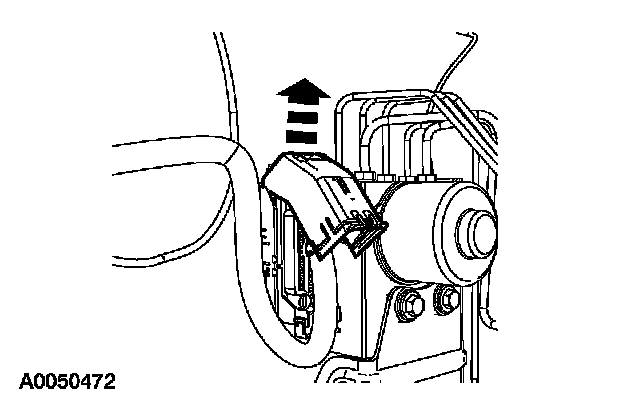

2. Disconnect the ABS module electrical connector.

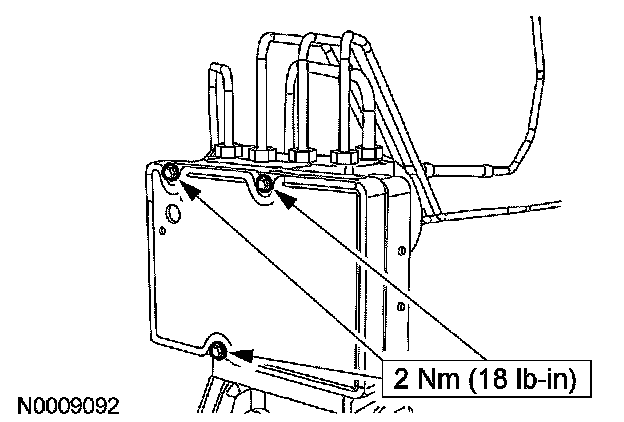

3. Remove the 3 bolts and the ABS module.
4. To install, reverse the removal procedure
