Alternator: Service and Repair

GENERATOR

Removal and Installation
1. Disconnect the battery.
2. For Navigator, release the 2 retainers and remove the engine cover.

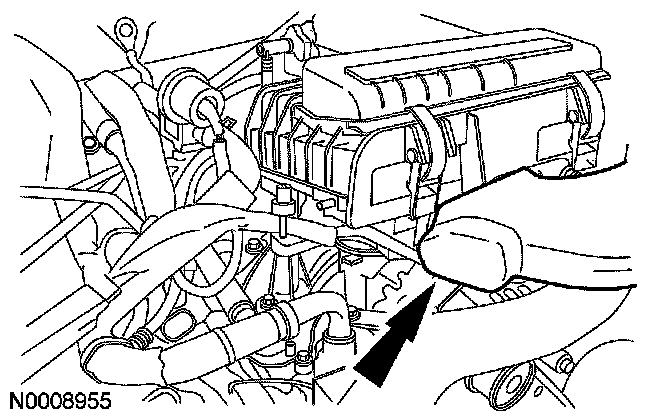

3. Position the air cleaner intake pipe aside.
4. Relieve the accessory drive belt tension and remove the belt from the generator pulley.

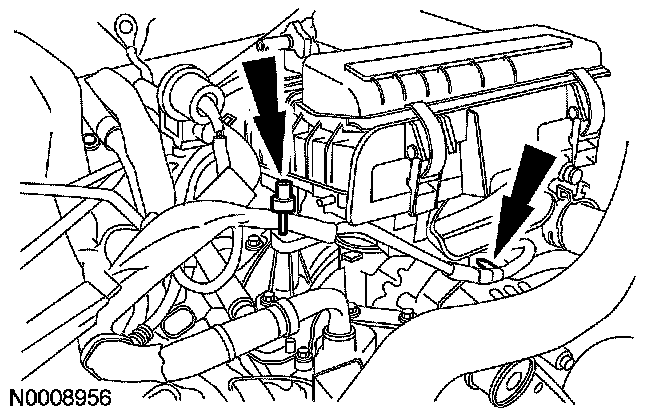

5. Remove the 2 generator B+ cable locators from the generator bracket and the air cleaner stud bolt.

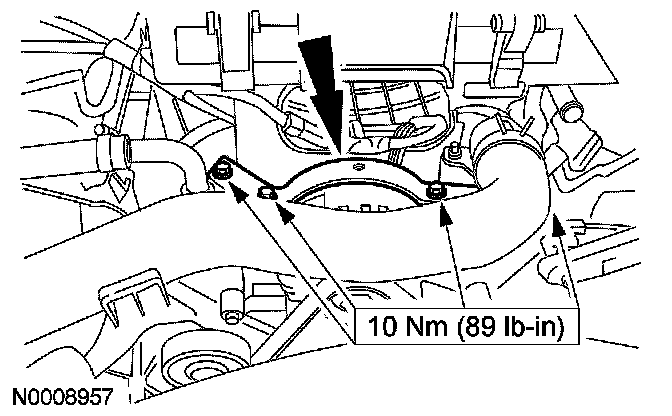

6. Remove the bolts and the generator bracket.







7. CAUTION: This is a new style connector that has a press-to-release tab. Pulling on the tab could result in damage to the connector or harness.

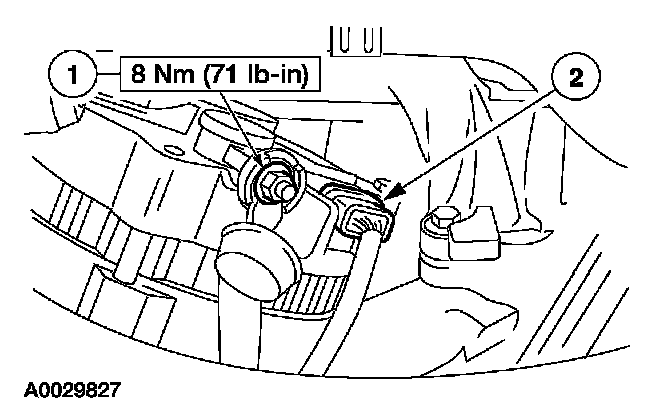

Disconnect the generator electrical connections.
1 Remove the B+ cable nut and cable.
2 Disconnect the electrical connector.

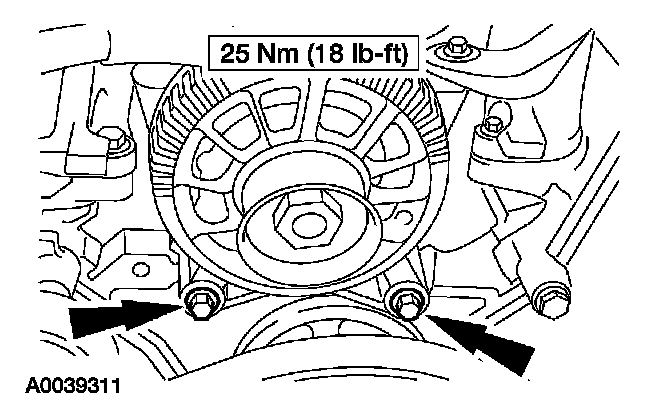

8. Loosen the lower bolts and remove the generator.
9. To install, reverse the removal procedure.
