Test M: The Navigation System Module Does Not Respond to the Diagnostic Tool
Test M: The Navigation System Module Does Not Respond to the Diagnostic Tool
PINPOINT TEST M: THE NAVIGATION SYSTEM MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

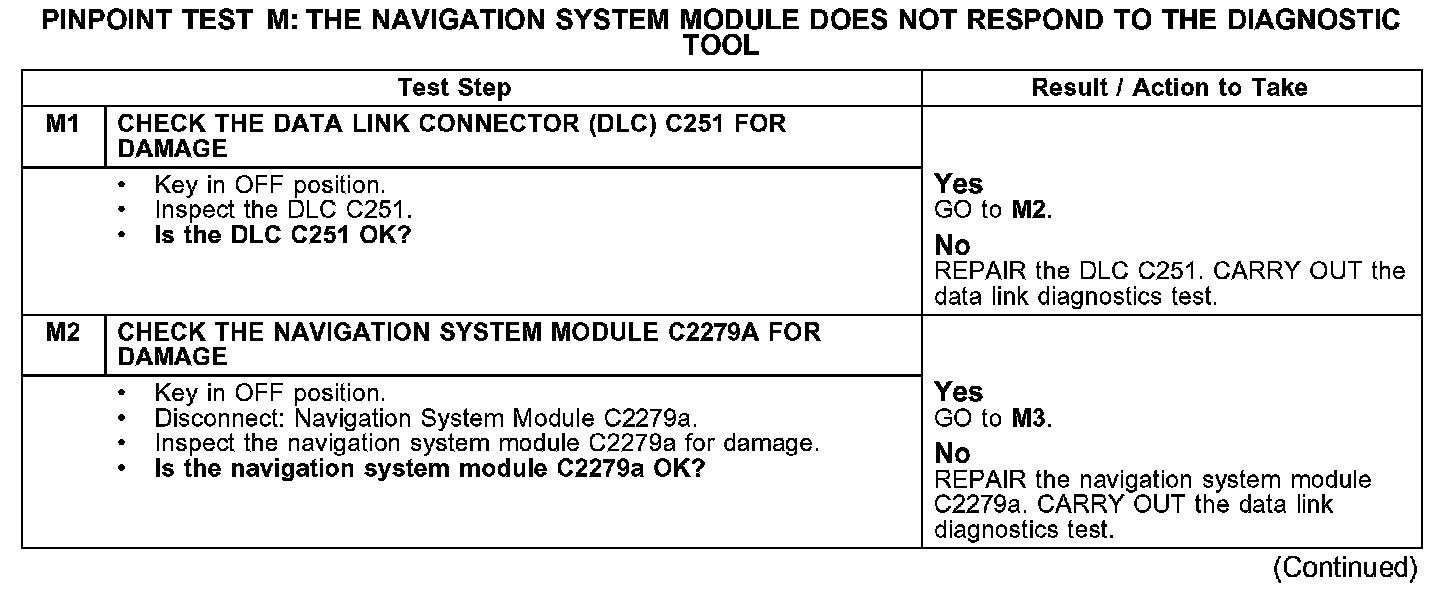

M1-M2:

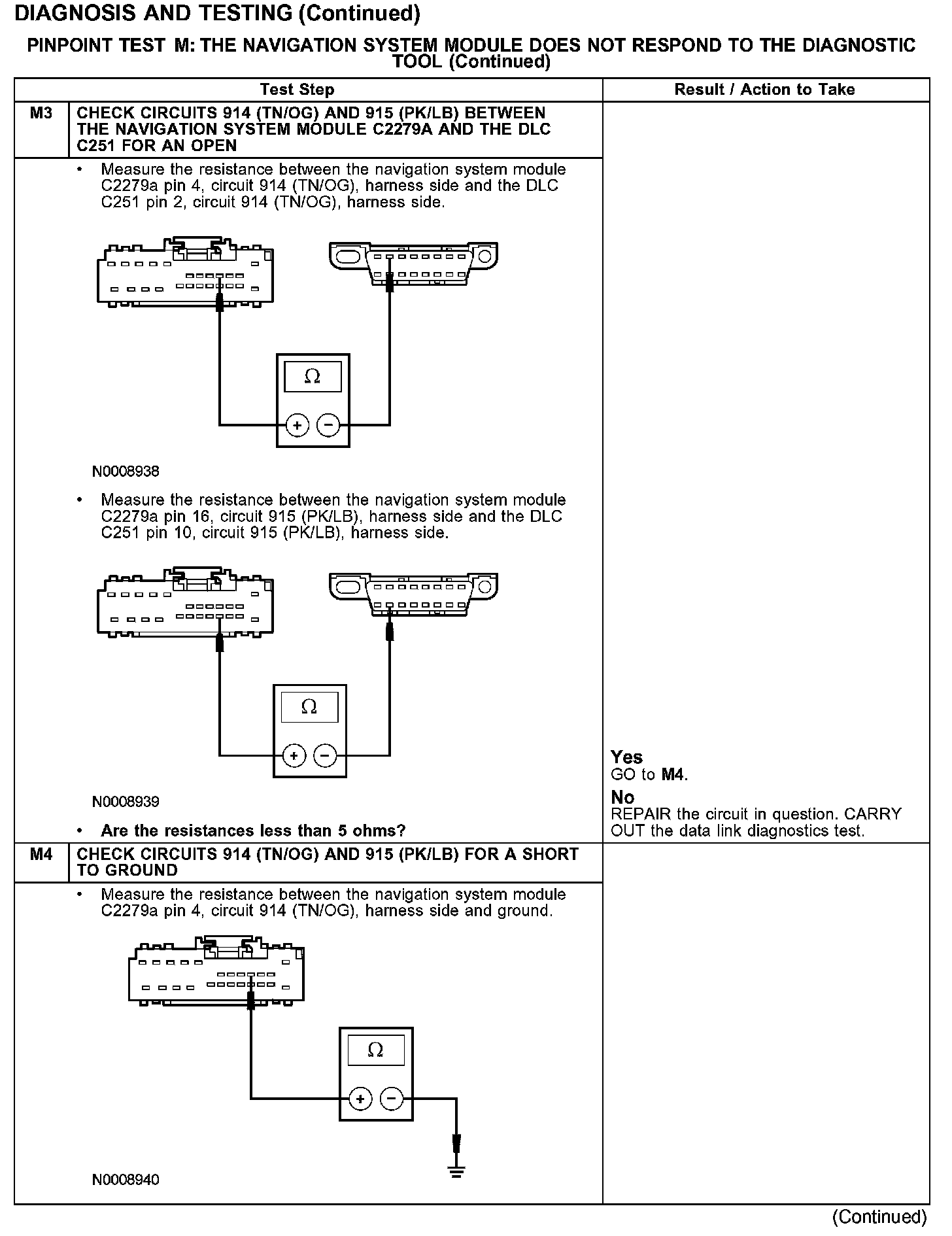

M3-M4:

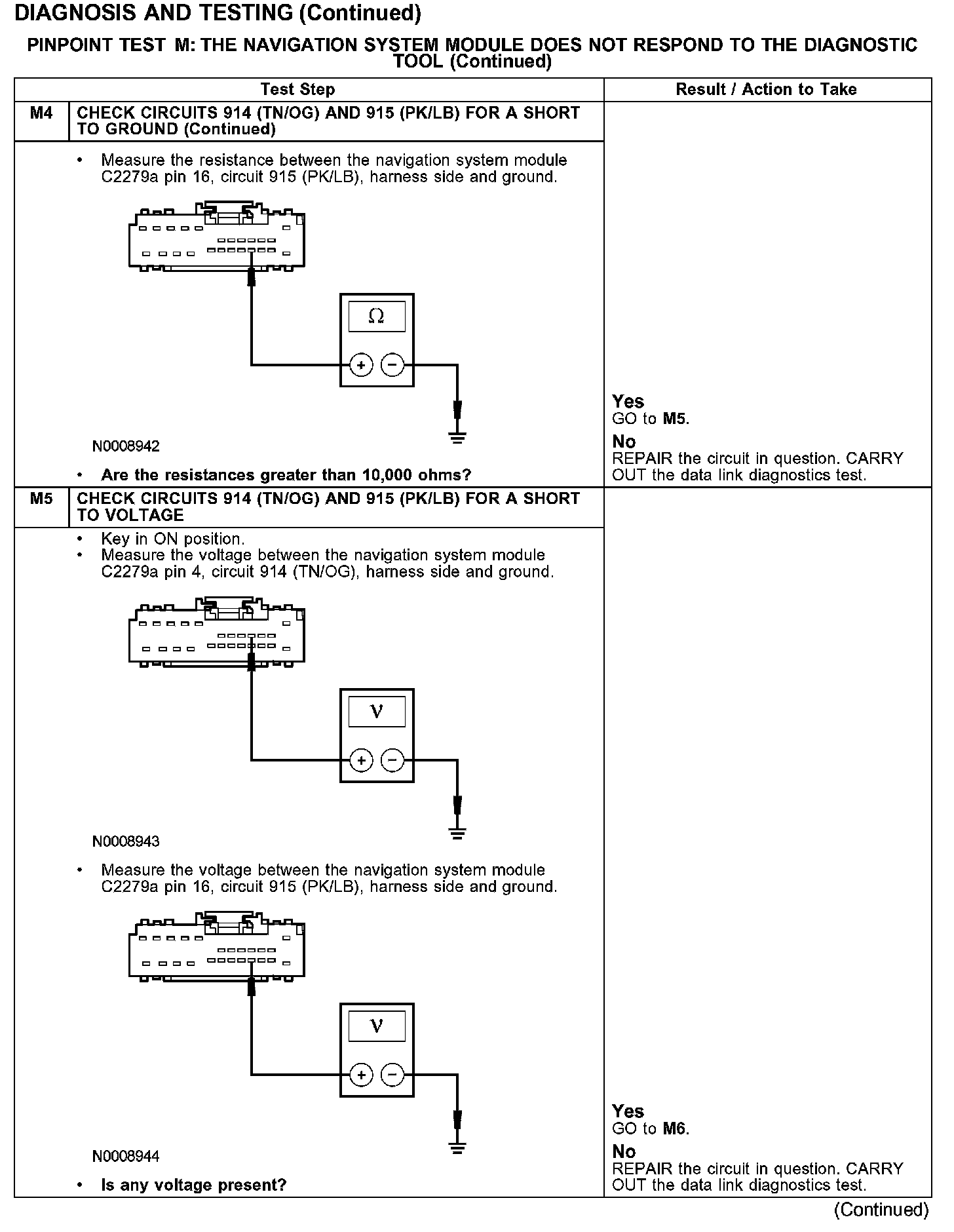

M4-M5:
M6:
