Air Duct: Service and Repair

AIR INLET DUCT







Removal and Installation

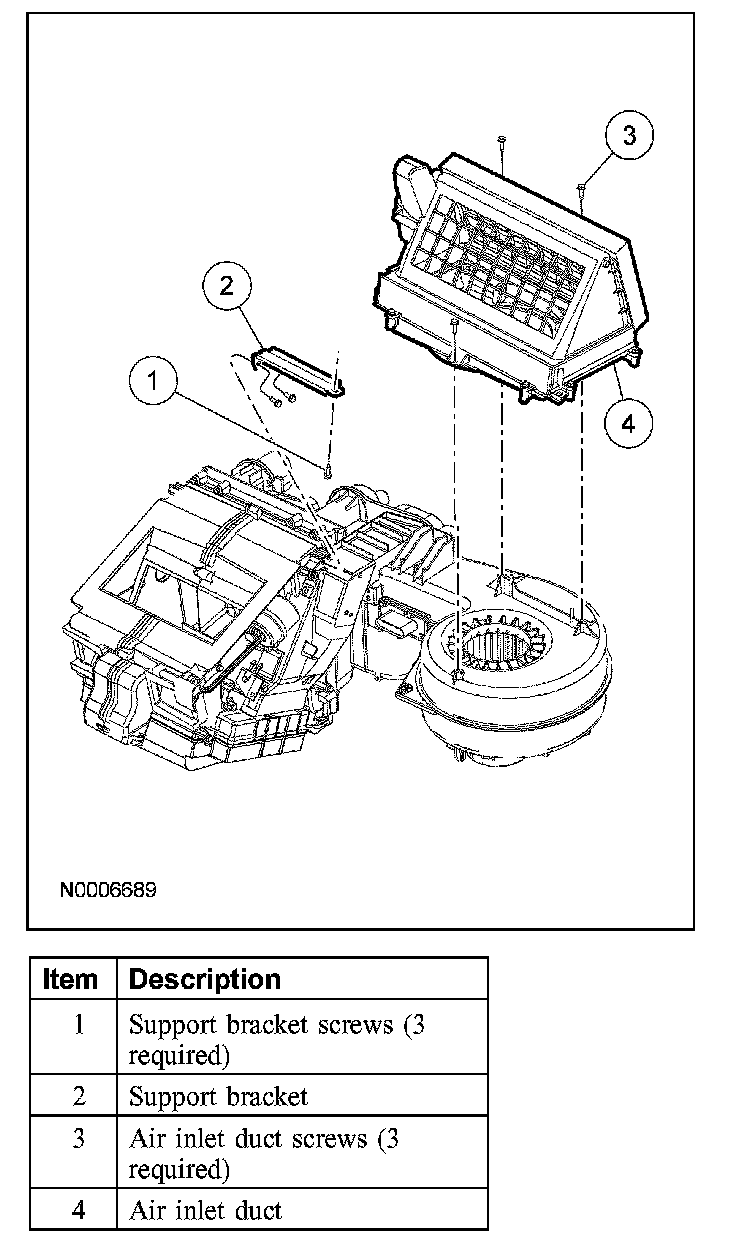

1. Remove the heater core and evaporator core housing.
2. Remove the 3 support bracket screws.
3. Remove the support bracket.
4. Remove the 3 air inlet duct screws.
5. Remove the air inlet duct.
6. To install, reverse the removal procedure.
