Camshaft Position Sensor: Service and Repair
CAMSHAFT POSITION (CMP) SENSORRemoval and Installation

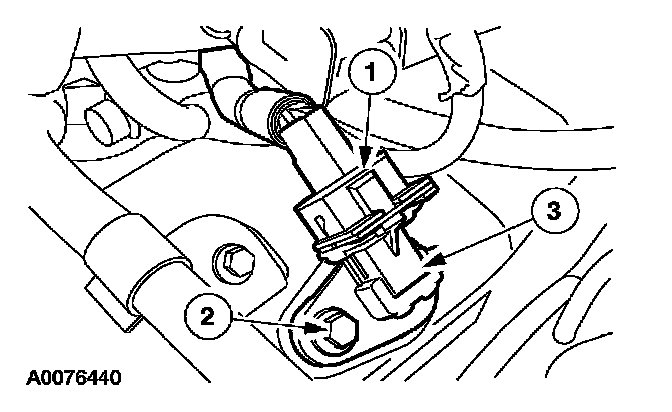

1. Remove the camshaft position (CMP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the sensor.

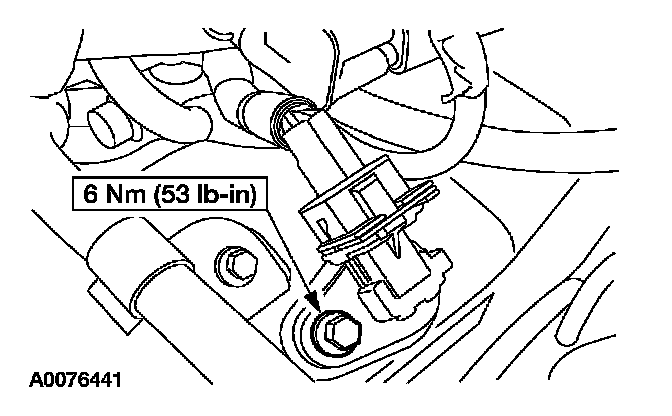

2. To install, reverse the removal procedure.
