Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.







3. Remove the crankshaft position (CKP) sensor.

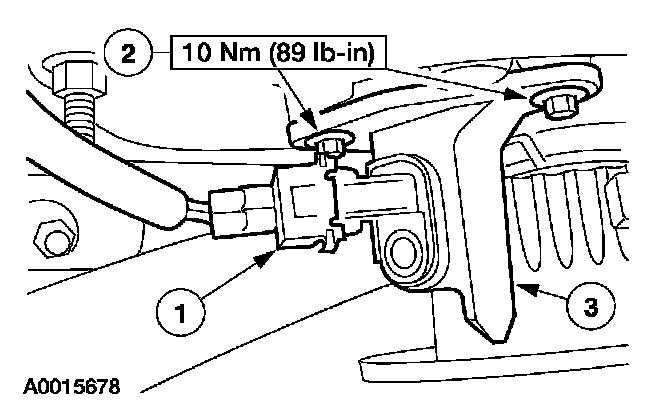

1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the sensor.

4. NOTE:
- The new CKP sensor needs to be touching the damper. The new sensor has wear tabs that will wear off after several engine revolutions.
- Be sure the sensor wiring is routed away from the battery cable.

To install, reverse the removal procedure.
