Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SYSTEM

Removal and Installation
1. Disconnect the battery ground cable.

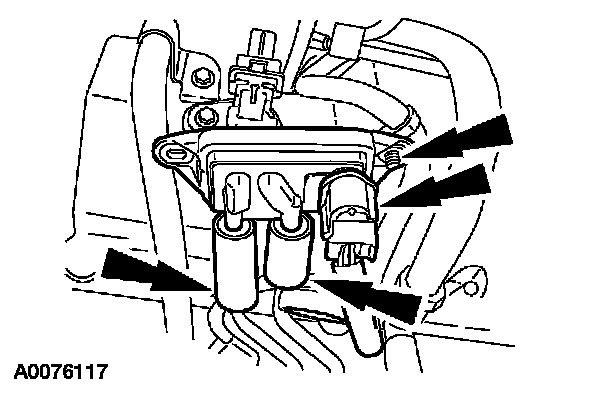

2. Remove the differential pressure feedback exhaust gas recirculation (EGR) system.
- Disconnect the electrical connector.
- Disconnect the wiring pin-type retainer.
- Disconnect the hoses.

3. To install, reverse the removal procedure.
