Throttle Position Sensor: Service and Repair
THROTTLE POSITION (TP) SENSORRemoval and Installation
1. Remove the accelerator control snow shield.

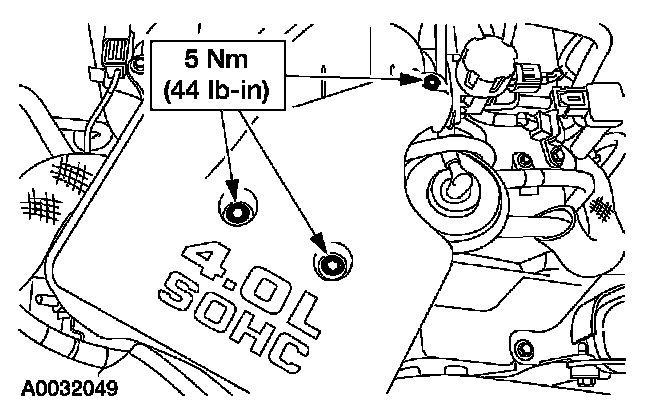

2. Remove the throttle position (TP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolts and the sensor.
3. To install, reverse the removal procedure.
