Speed Control Switch - With Remote Audio/Climate Controls

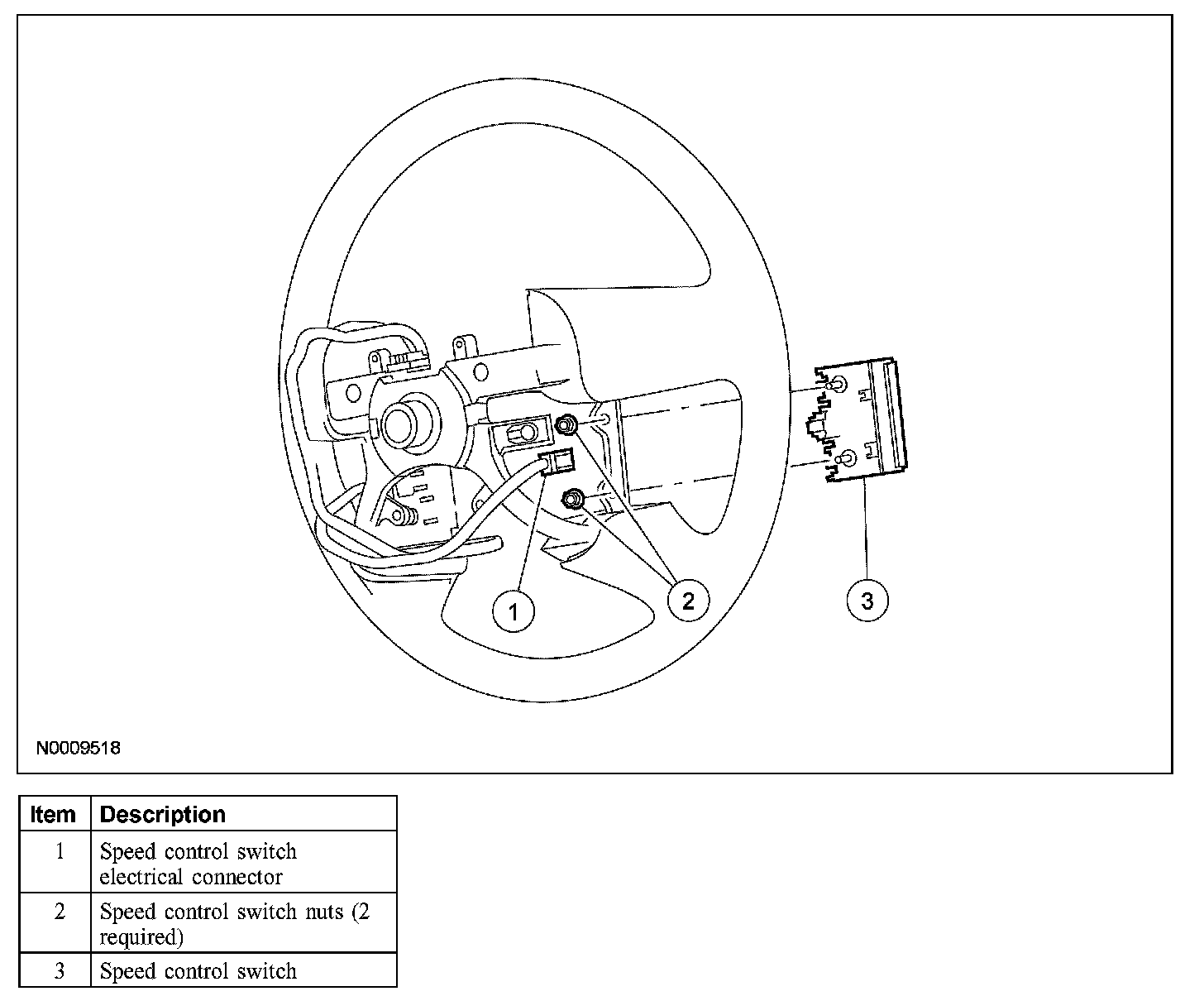

SPEED CONTROL SWITCH - WITH REMOTE AUDIO/CLIMATE CONTROLS







Removal and Installation
1. Remove the driver air bag module.
2. Disconnect the speed control switch electrical connector.
3. Remove the 2 nuts and the speed control switch.
4. To install, reverse the removal procedure.
