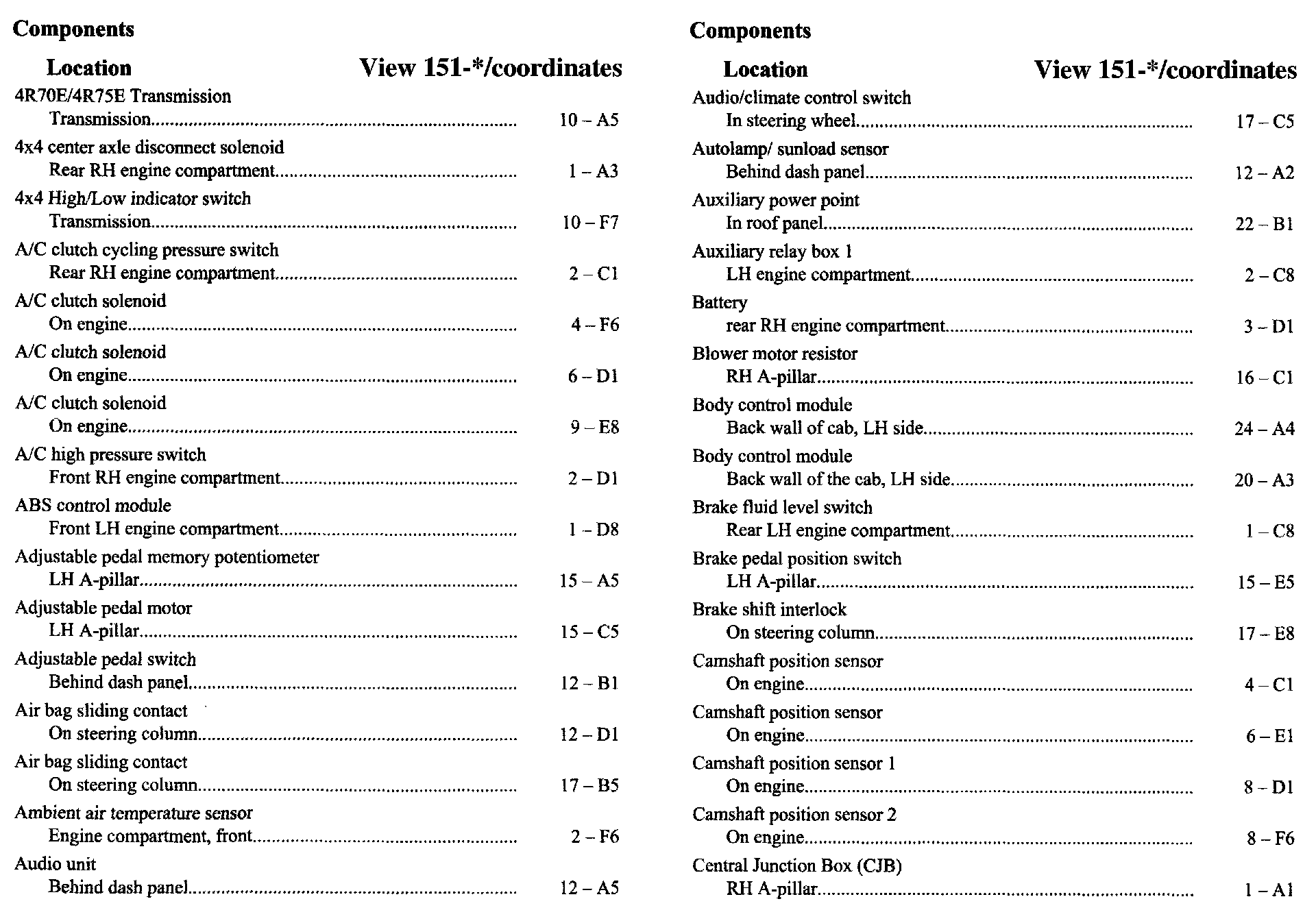

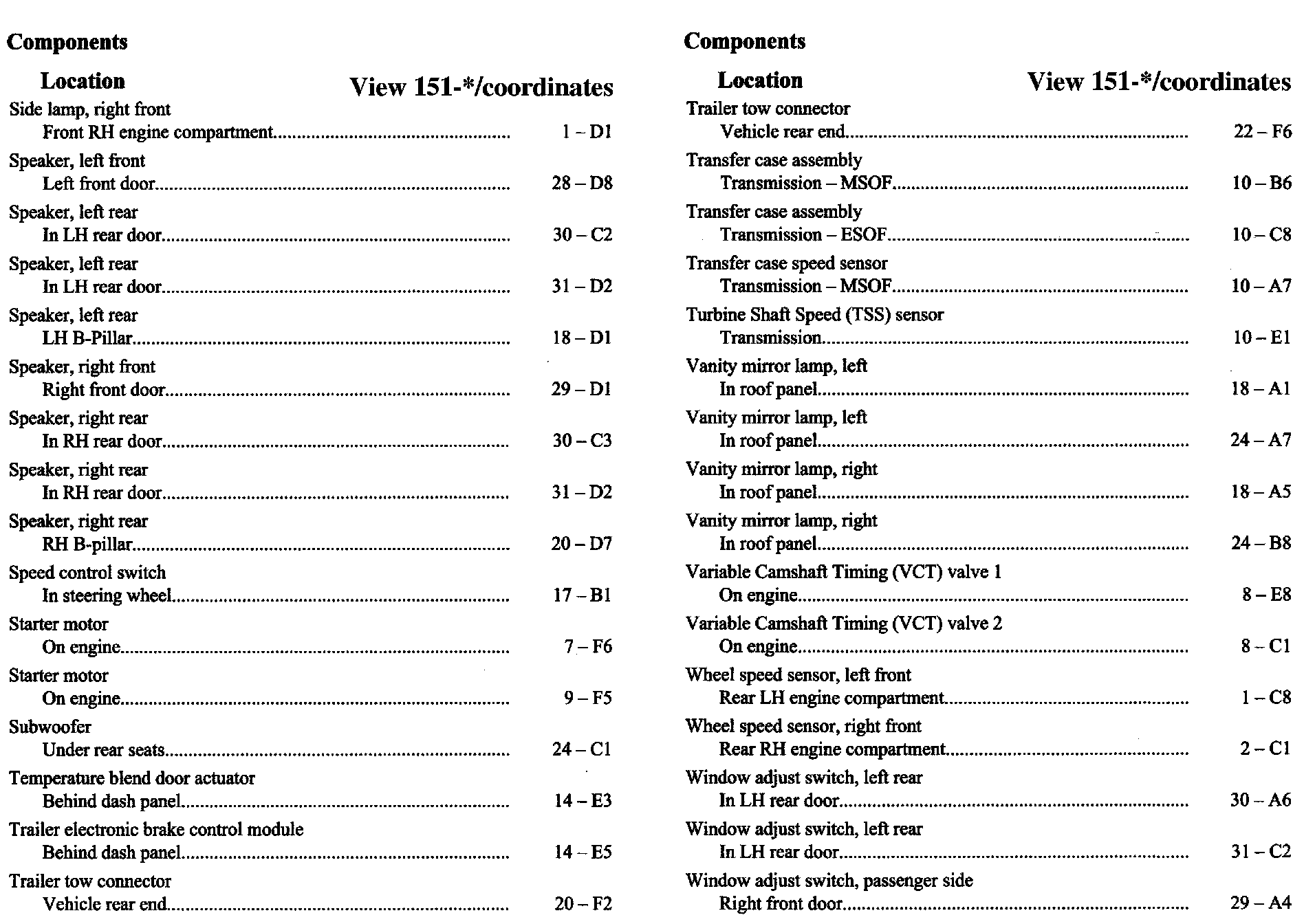

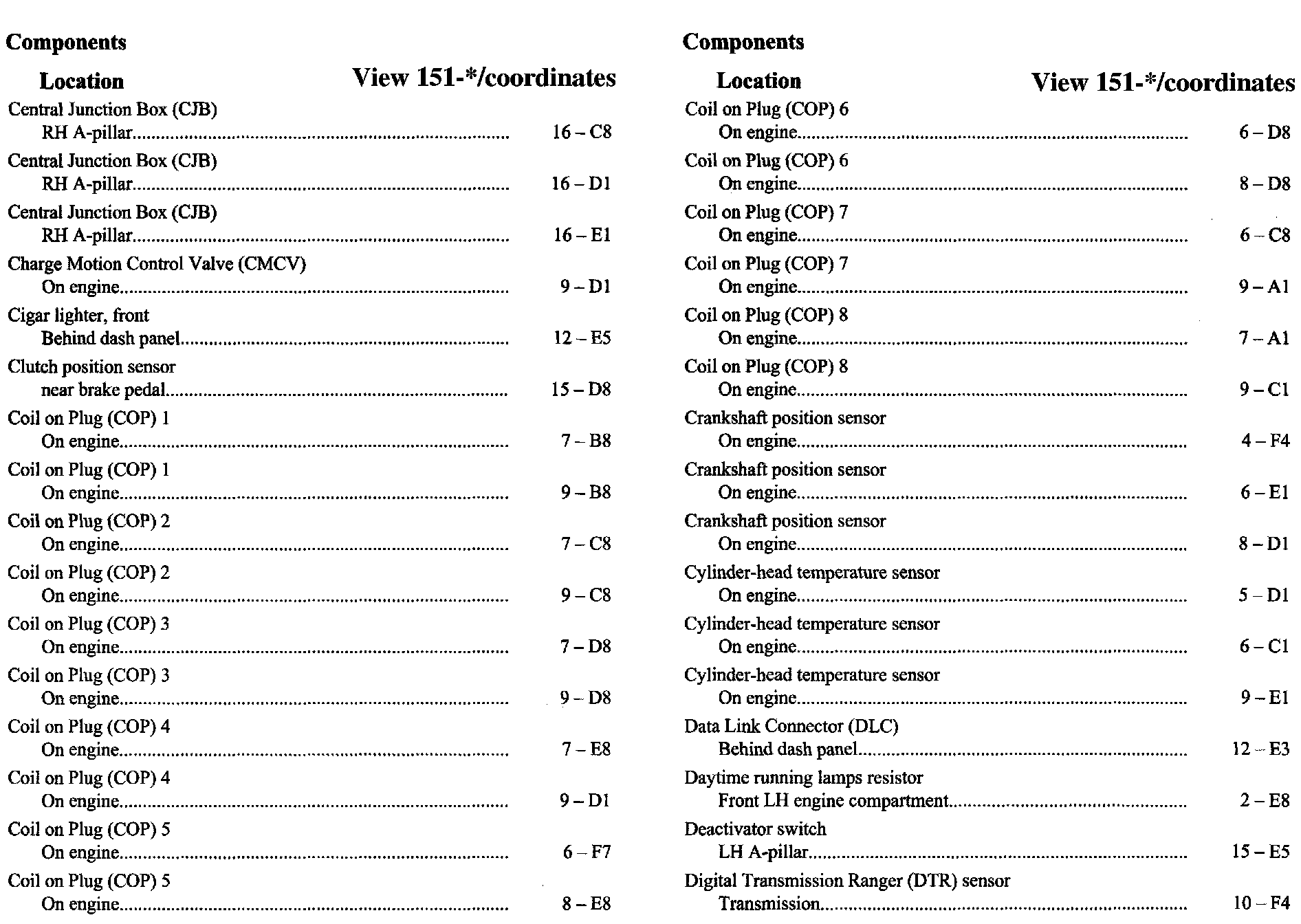

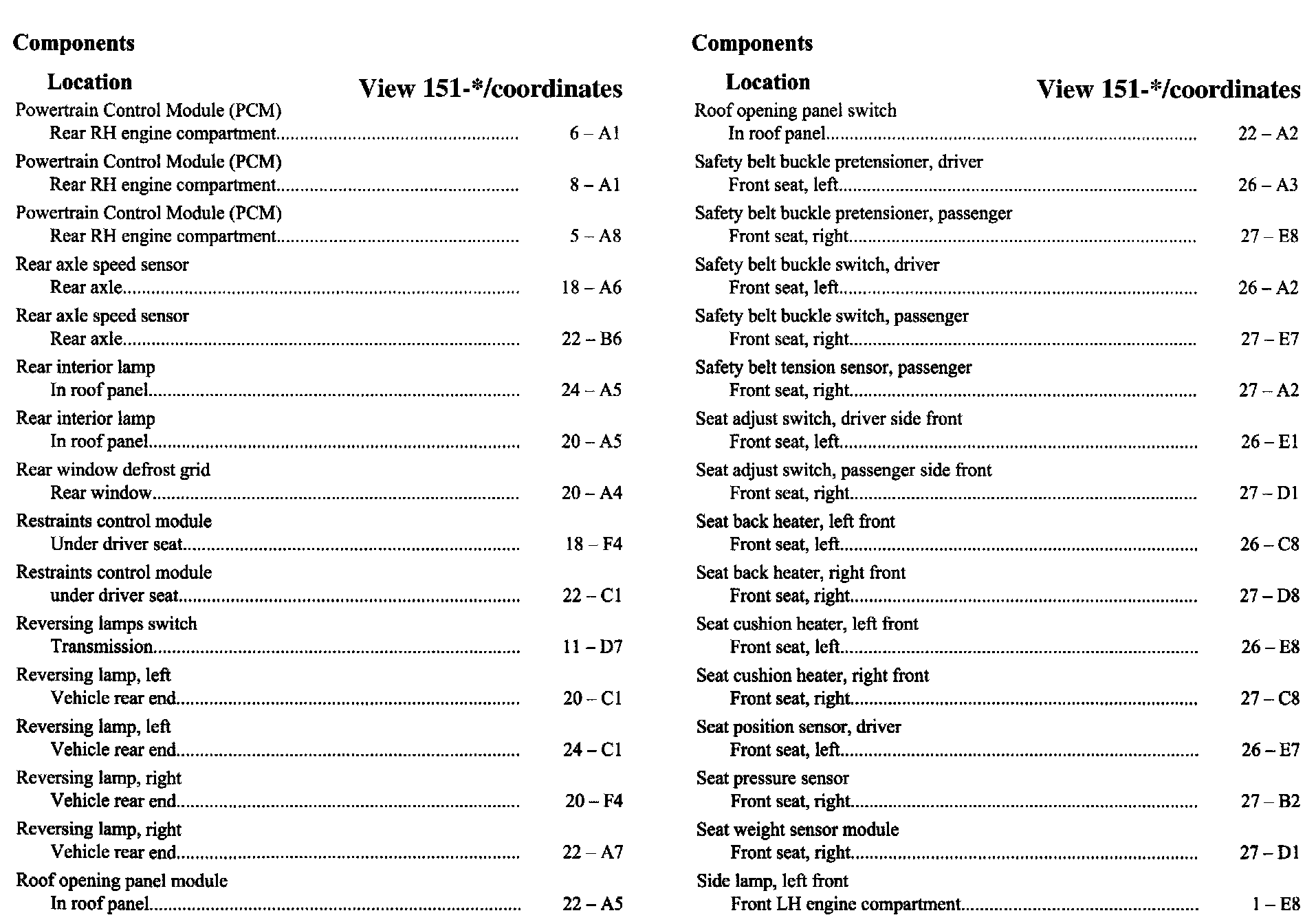

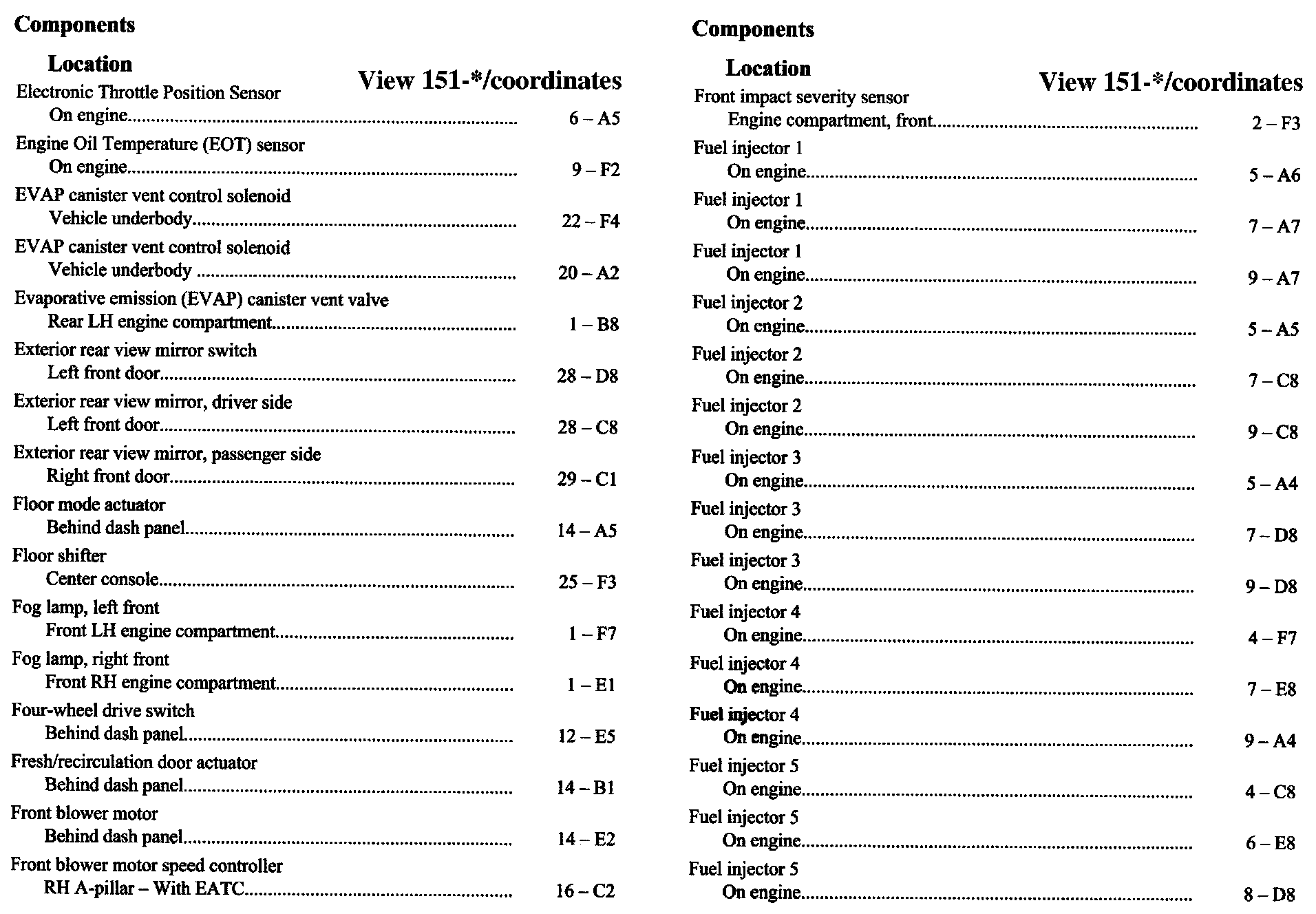

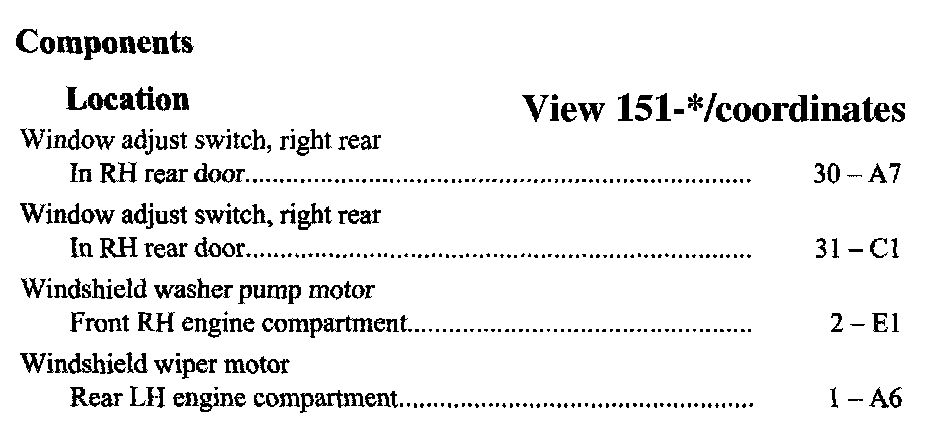

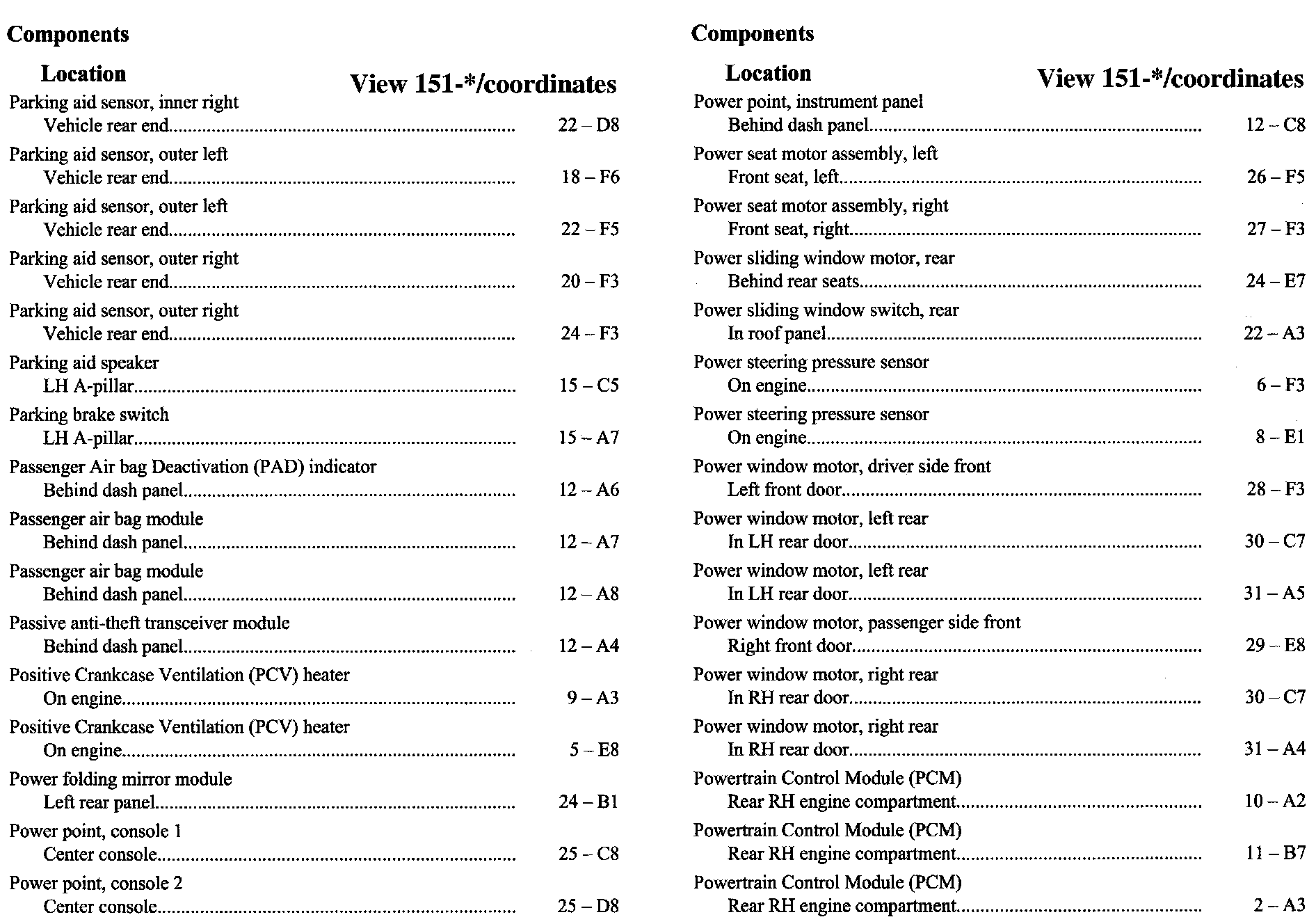

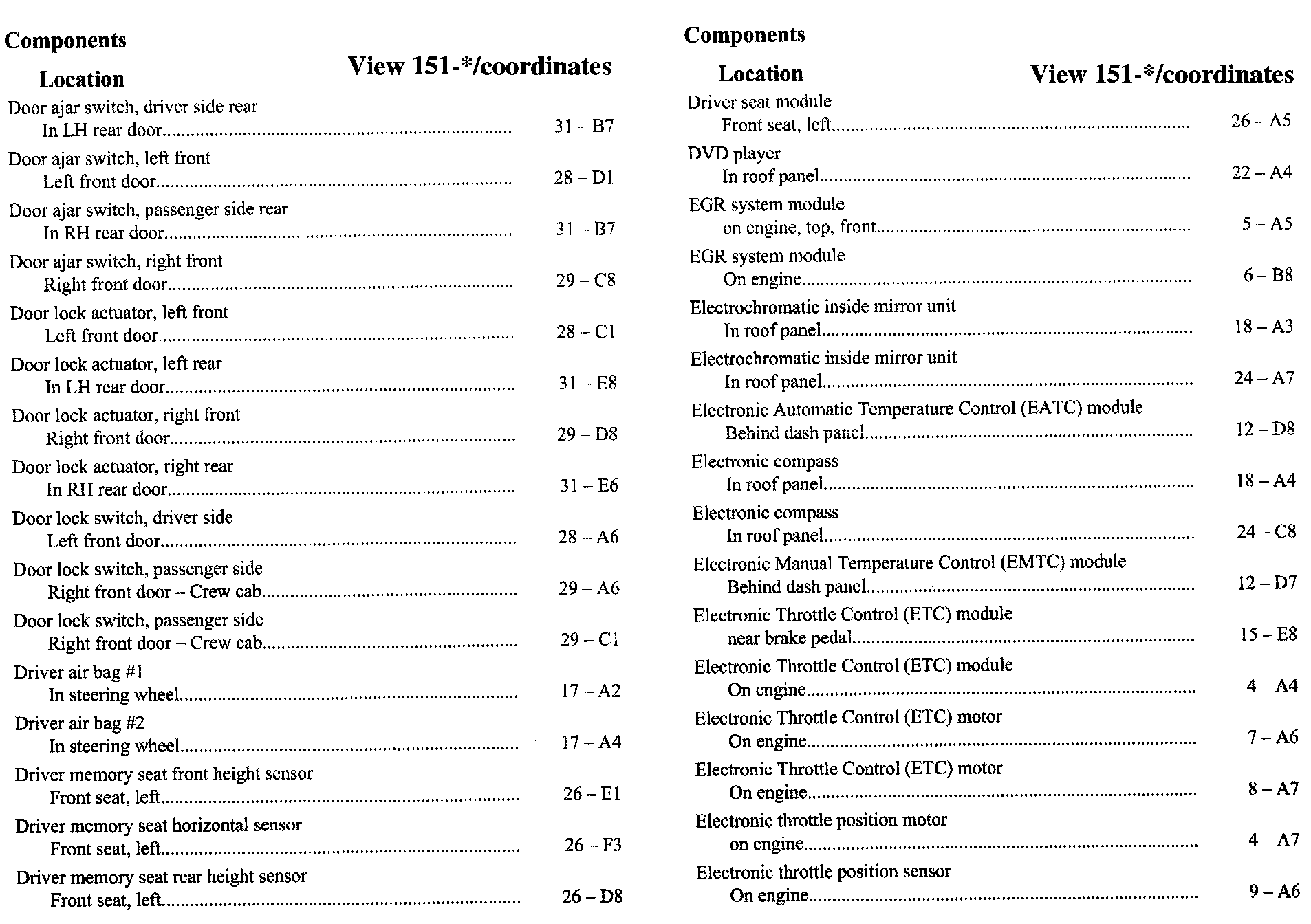

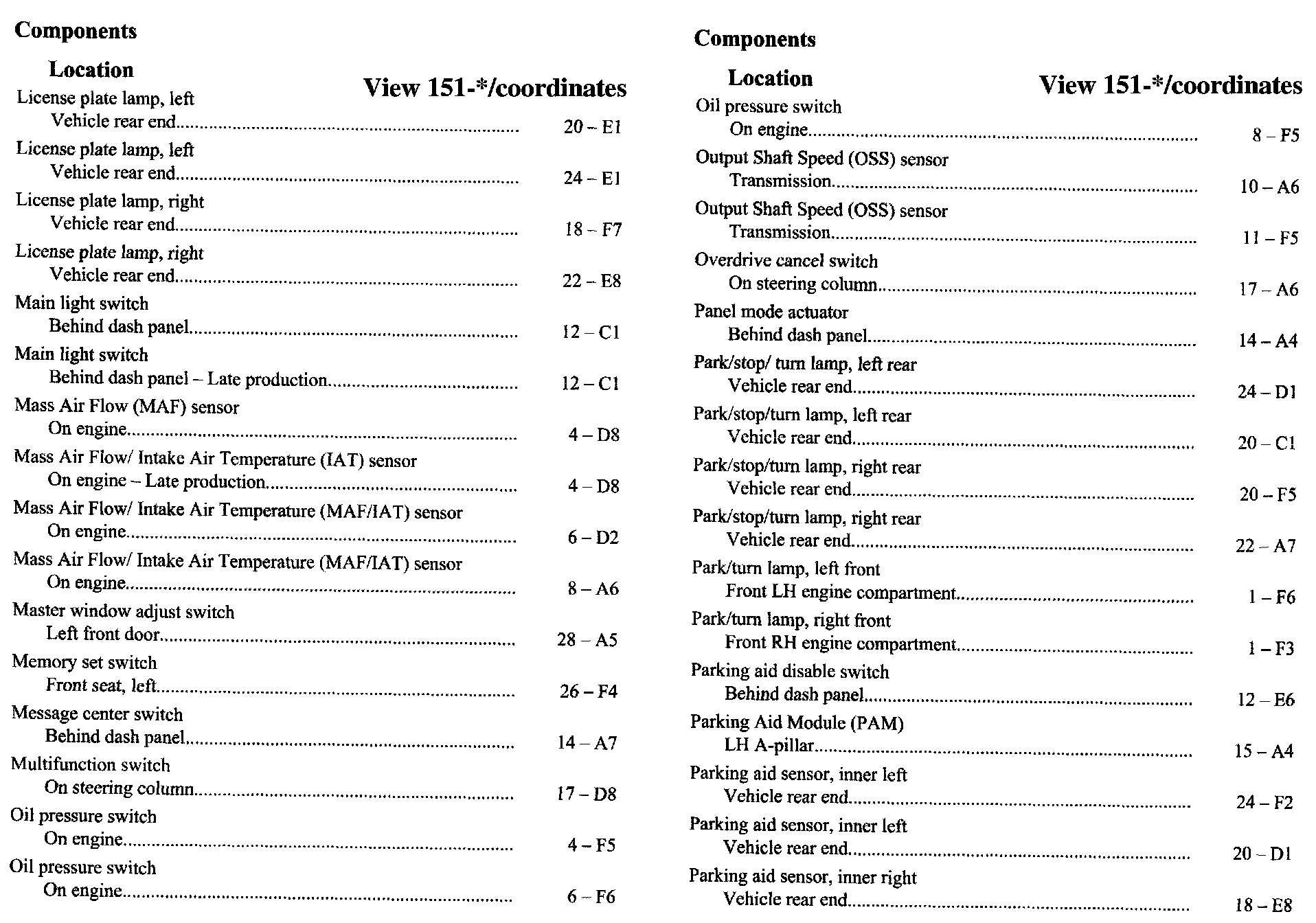

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.
4R-Ce:
Ce-Di:
Do-El:
El-Fu:
Fu-He:
He-Kn:
Li-Pa:
Pa-Po:
Po-Si:
Si-Wi:
Wi-Wi:
