Toe Adjustment-Front

Toe Adjustment-Front

1. Start the engine and center the steering wheel.
2. Turn the engine off, and hold the steering wheel in the straight-ahead position using a suitable holding device.

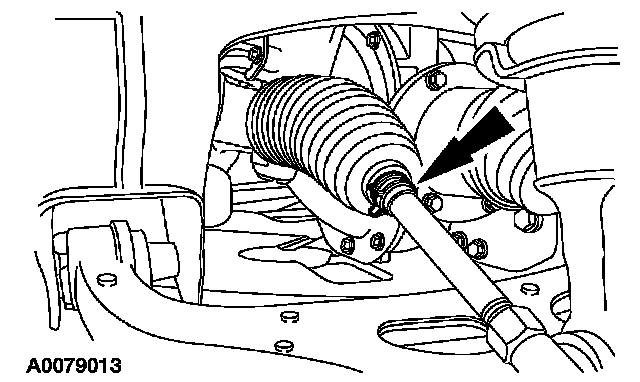

3. NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod is rotated.

Remove the clamps.

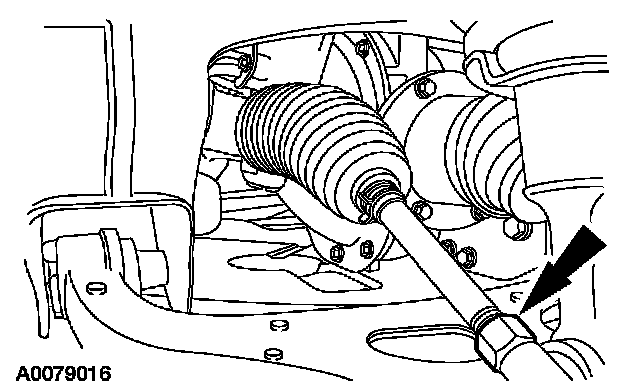

4. Loosen the nuts.
^ Clean and lubricate the nut(s) and front wheel spindle tie-rod threads.

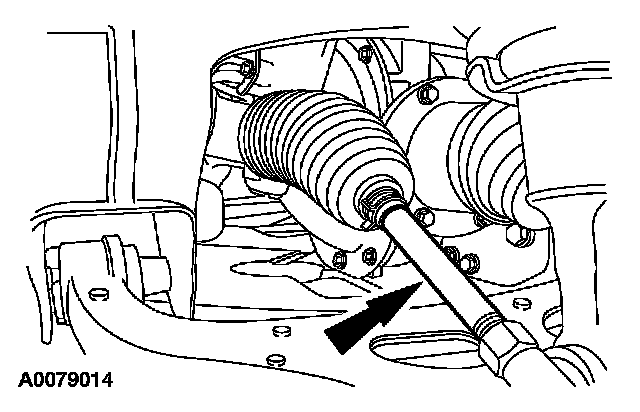

5. Rotate the front wheel spindle tie-rods.
6. Start the engine and recenter the steering wheel.
^ Recheck the toe settings and adjust if necessary.

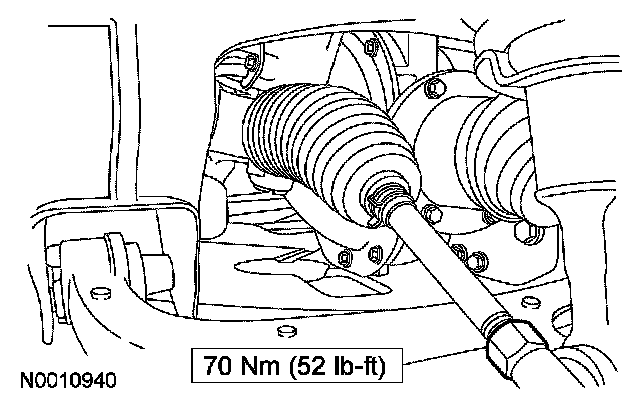

7. CAUTION: Make sure to hold the tie-rod end stationary with a wrench while tightening the nut or damage to the boot can occur.

NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

Tighten the nuts.
8. Install the clamps.
