Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR - 4.2L






Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.

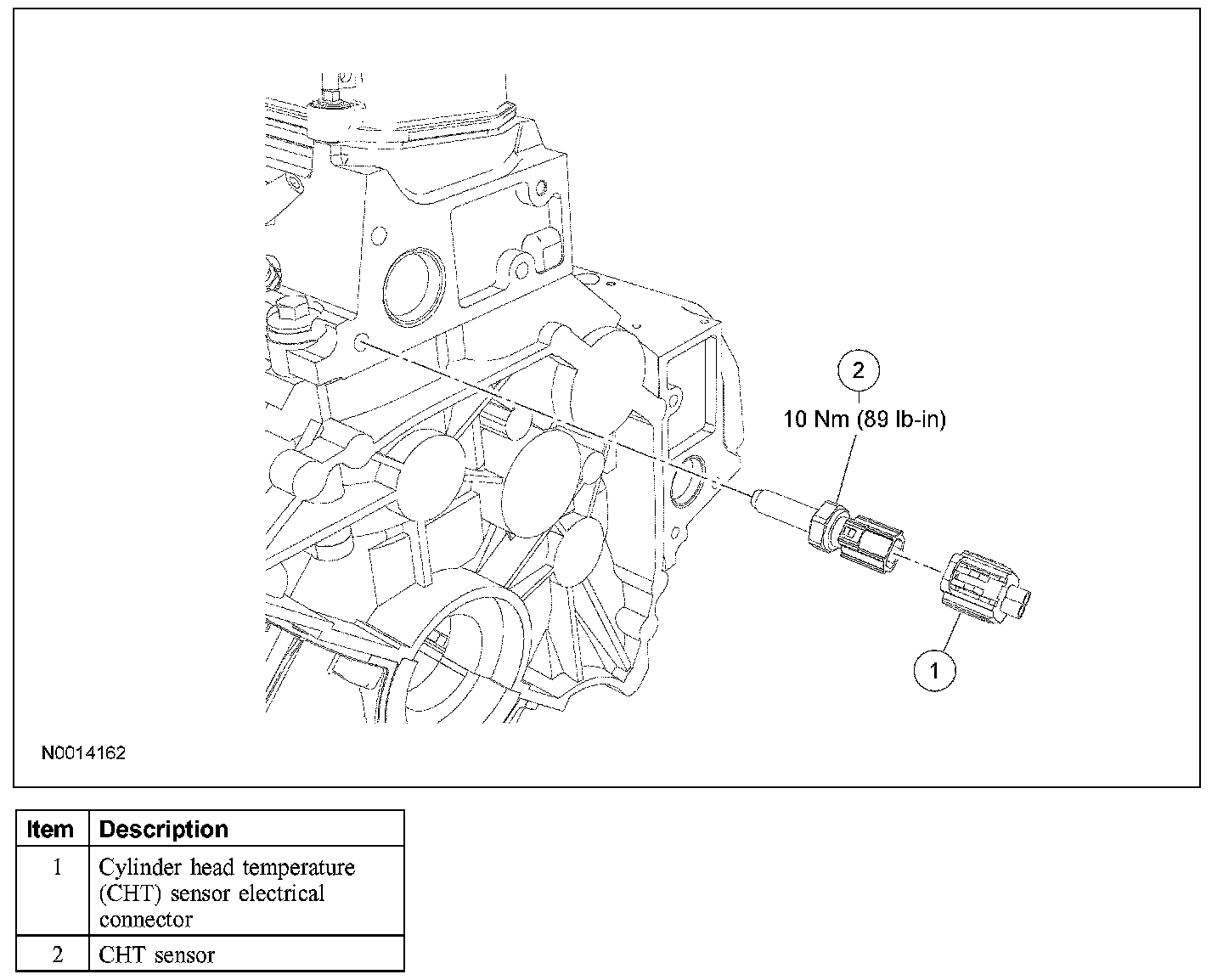

3. Disconnect the cylinder head temperature (CHT) sensor electrical connector.
4. Remove the CHT sensor.
- To install, tighten to 10 Nm (89 lb-in).

5. To install, reverse the removal procedure.
